    Product Description

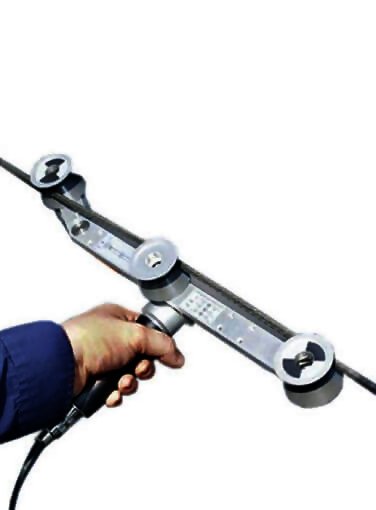

    Heavy Duty Tension Meter
    12 Ranges 5kg up to 500kg
    200% overload protection

    5 Ranges, up 1000lbs / 500 Kg / 5000N
    For Wire Diameters up to 0.200" / 5mm

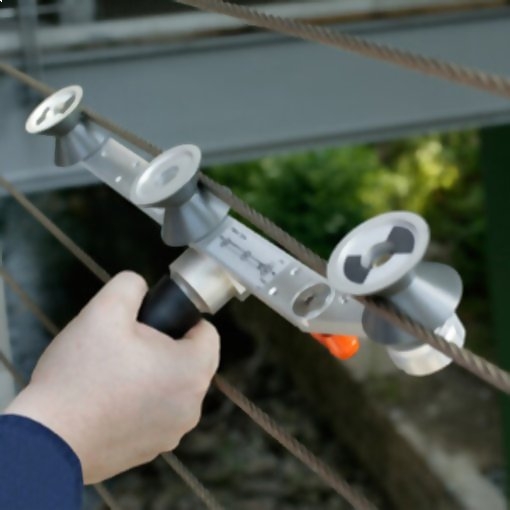

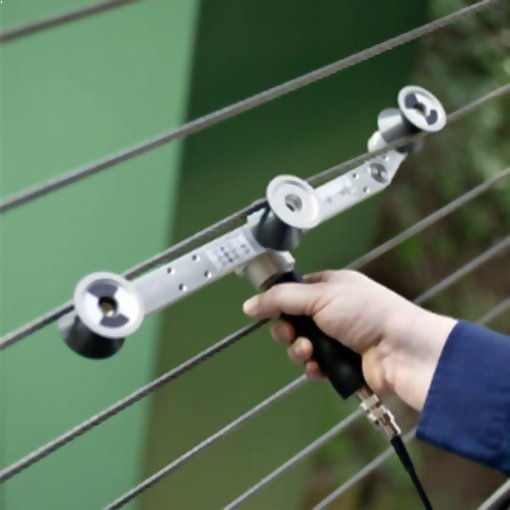

    Designed for measuring wires & cables that are anchored/fixed at both ends (closed system) such as guy wires, support cables, tethers and more. Also commonly used on Kevlar, fiberglass and other hi-strength materials when used in a similar applications.

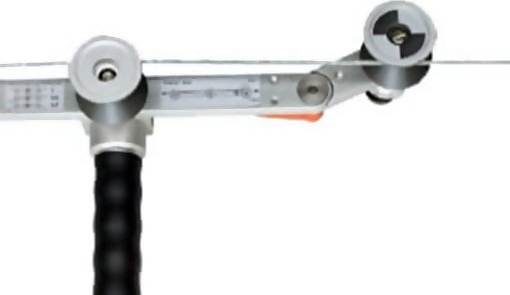

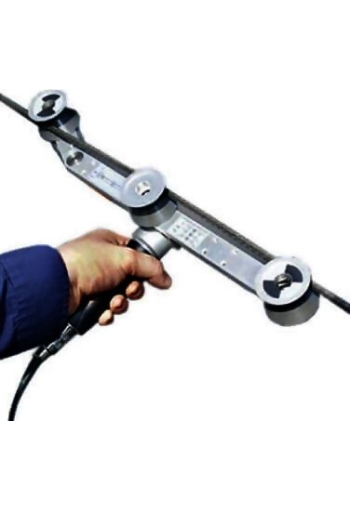

    The 136-3E employs a unique roller configuration and measurement scheme to minimize the deflection of the wire/cable. The total wrap angle of the material over the center sensing roller is 3 degrees eliminating all measurement errors!

    No other company or product in the world can make this claim!

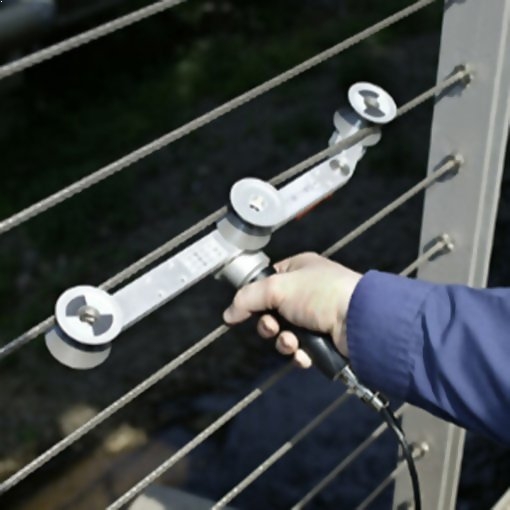

    The material threading pattern (refer to illustration below) insures easy material acquisition and good tactile feedback allowing for excellent repeatability between measurements as well as between different users.

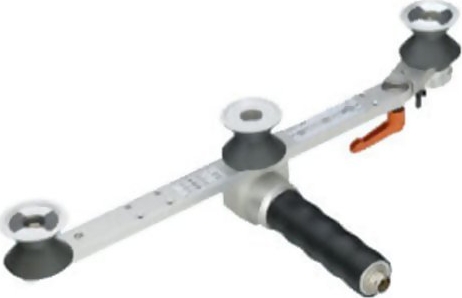

    Precision ball-bearing rollers are used to eliminate any error caused by friction. These rollers are mounted on a large mounting plate properly spaced to remove the negative incluence normally caused by the inherent rigidity of wires and cable up to 5 mm in diameter (0.200").

    Diameter Compensation Adjustment

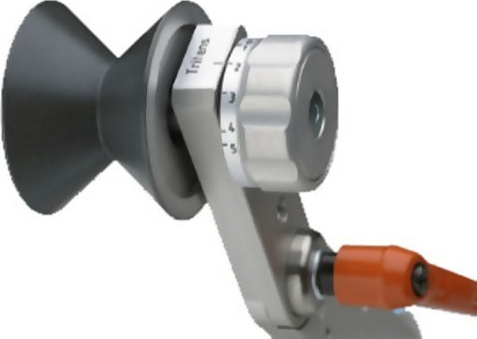

    The 136-3E is fitted with an exclusive mechanical compensation which adjusts the measuring geometry to insure optimal accuracy regardless of the diameter of the material to be measured.

    It consists of an calibrated rotary dial fitted to the rear-side of the right outer roller. The user simply rotates the dial until the numeric value on the dial is set to the actual wire diameter & then is locked in position. To change for a larger or smaller diameter, unlock and dial to new value. Simple, quick and effective!


    line
    Features
    line

    • Minimal material deflection eliminates measurement errors
    • Built-in material diameter compensation for error-free measurements of samples up to 5 mm (0.200")
    • Wear-resistant, ball-bearing guide rollers eliminate errors caused by friction
    • Splashproof version of sensor & indicator is offered for use in wet environments (in rain or near splashing water)


    line
    Specifications
    line

    Accuracy± 1.5% Full Scale or better
    Outer Roller Spacing (c:c)370 mm
    Wrap Angle3 Degrees
    Additional Length Effect0.12 mm
    Guide RollersV-Grooved Aluminum 47/21 mm (OD/Root Diameter)
    Roller Material
    Overload Protection200% +
    Calibration CertificateOptional
    PricingPlease Call Us for Pricing 718-846-6458


    line
    Ranges
    line

    ModelRange
    1363E-10LB-V0-10 Lb
    0-5 Kg
    0-50 N
    1363E-100LB-V0-100
    0-50 Kg
    0-500 N
    1363E-200LB-V0-200 Lb
    0-100 Kg
    0-1000 N
    1363E-500LB-V0-500 Lb
    0-250 Kg
    0-2500 N
    1363-1000LB-V0-1000 Lb
    0-500 Kg
    0-5000 N
