Strap & Band Digital Tension Meters

Price: $969.00 to $1,284.00
STX Digital Strap & Band Tension Meters
Indicate Strap Tension in lbs, Kg, Newtons
Available in ranges up to 2000 lbs

Strap & Band Digital Tension Meters

Digital Strap Tension Meter
Model STX-Series

Indicate Strap Tension in Lbs, KG, or Newtons.

Digital Strap Tension Meters are used to measure tension(s) on metal, plastic or other strapping. The Model STX series offers users utmost accuracy over a wide variety of materials.


line
reddot Standard Instruments
line
Model Range Resolution Full-Scale Accuracy
STX-250 5-250 lbs 0.5 lb 1%
STX-500 25-500 lbs 1 lb 1%
STX-1000 50-1000 lbs 5 lb 1%
STX-2000 100-2000 lbs 10 lb 2%
STXM-2000* 100-2000 lbs 10 lb 4%

*The STXM-2000 includes all calibrations for POLY and PET strapping with thicknesses from .020" - .055", and STEEL strapping with thicknesses between .017" - .044".

All other STX-Series Models are calibrated specifically to your strapping types(s)
and size(s) for greatest accuracy.


Display shows tension, name of calibration selected, running line minimum and maximum tension values, and battery charge level.



  • Data Logging has adjustable duration and sampling rates.
  • Large, easy to read backlit, graphic display with adjustable backlighting and contrast.
  • Select tension values to display in lbs, Kg, or Newtons.
  • Select strap material and size from menu. Instrument automatically adjusts calibration for your specific setting.
  • Up to 10 calibrations can be programmed into instrument. (All calibrations password protected.)
  • Adjustable LCD refresh rates allow for stable digital readings.
    •
  • All models typically available from stock.
  • All models factory-calibrated and ready for use.
  • Calibration values traceable to National Standards. Calibration certificate included.

    • line
    reddotAvailable Options for all Instruments
    line

  • Note: Add option-designator letter to the end of the Model Number. (For example, a Model STX-250-E denotes a standard STX-250 with the optional RS-232, serial output function included.)

    • A Analog Output Option
    Analog Output Option for measuring tension values. 0-5 VDC or 4 -20 mA with software-definable ending sequences. Provided with 10' cable. Data outputted at 40Hz.
    E RS-232 Serial Output Option
    Provided with 10' cable to interface with your receiving device. Select data sampling rate from 1, 2 or 5 Hz.
    D Data Logging Option
    Capture and view data within a user-defined time window. Select the time window; then select the sampling rate (from 1-100 Hz). After capturing the data, review the data on the instrument's display or upload it using the 10' serial interface cable.

  • Instruments can be configured with any or all of these options.

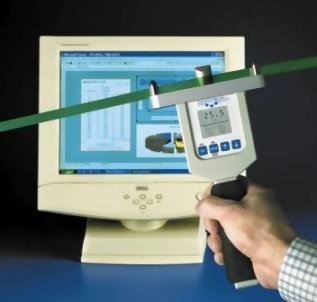

      Input Real-Time Serial Data into any Windows® application using any number of software wedge programs, such as WinWedge Pro® for Windows, or configure your Windows® operating system to capture the data via HyperTerminal®.


    line
    reddot Specifications
    line
    • Approximate weight is 2.3 lbs.
      • (Weight varies depending upon instrument configuration.)
    • Re-chargeable NIMH battery assembly and power supply provided.
    • Instruments may be operated continuously while connected to power supply.
    • Power Supply is rated for 100-240 VAC and includes several "blades", allowing use with US, European, Australian, and other plug configurations.
    • Durable, lightweight carrying case with protective foam inserts.
    • CE Certification complying with heavy, industrial, immunity standards.

    • line
    reddot Download
    line

    manual STX-250 Dimensional Drawing Click to download

    manual STX-500 & STX-1000 Dimensional Drawings Click to download

    manual STX-2000 & STXM-2000 Dimensional Drawings Click to download

    manual STX Datasheet Click To Download

    news View 360° Click to download

    line
    reddot Buy Now
    line

    Please select the items you would like to purchase then click "Add to Cart"
    Products:

    STX Series Digital Strap & Band Tension Meter - Model








    Accessories:
    Select Options for ACX / STX Series Tension Meters Below:





    Add to Cart:
