PosiTector DPM Dew Point Meter

PosiTector DPM Dew Point Meter

Simple

• Large, easy-to-read, graphics LCD with multilingual support
• One-handed menu navigation
• Audio and visual alarm – indicates when climatic conditions are unsuitable for painting.
• No need to consult complex tables or use a slide rule calculator
• Bi-color indicator light – ideal in a noisy environment
• All 5 parameters are constantly updated and displayed simultaneously
• Graph mode charts all 5 parameters for quick analysis.

Durable

• Rugged, outdoor/indoor instrument
• Solvent, acid, oil, water and dust resistant - meets or exceeds IP5X
• Scratch/Solvent resistant display suitable for harsh environments
• Shock-absorbing protective rubber holster with belt clip and wrist strap
• Two (2) year warranty on both body and sensors

Accurate

• Fast response precision sensors provide accurate, repeatable readings with high reliability and long term stability
• Smart Trend Indicators™ identify rising, falling or stable readings
• Certificate of Calibration showing traceability to NIST included
• Conforms to national and international standards including ISO 8502-4, BS 7079-B4, ASTM D3276-05, NSTM 009-32, IMO PSPC, and SSPC-PA7

Versatile

• Internal Memory stores 2,500 datasets in 100 batches with the simple touch of a button
• Data Logger Mode automatically records all 5 parameters at user selected time intervals. Ideal for unattended operation.
• Built-in clock – date and time stamps each stored measurement
• Easily converts to accept optional probes including magnetic and hand-held surface temperature probes
• USB and IR ports for downloading to a PC or printer
• Flip Display for right-side-up viewing.
• Celsius/Fahrenheit switchable
• Backlit display for dim or dark environments

The PosiTector DPM comes complete with internal memory storage for out-of-box recording. All 5 Climatic parameters, plus the date and time, can be recorded with the single touch of a button or automatically at user selected intervals.

Memory Overview:

• Memory Storage: Internal memory storage for 2,500 datasets in up to 100 batches (groups). Each individual stored dataset contains all 5 climatic values plus date and time stamp.

• Memory View: Stored datasets can be viewed individually on the PosiTectorDPM 's display, or viewed graphically for quick trend analysis..

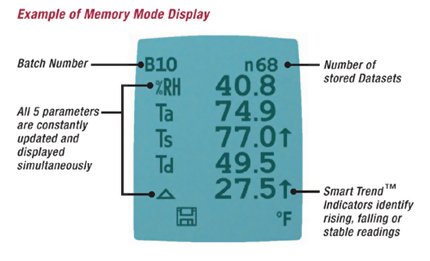

Individual dataset view example	Graph Mode example

• Data Logger Mode automatically records all 5 parameters at user selected intervals. Ideal for unattended operation.

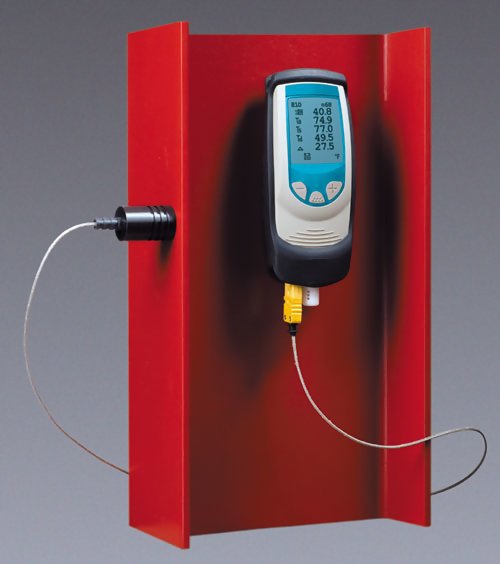

User Selectable Recording Intervals	Data Logger Mode works best with optional Magnetic Surface Temperature Kit

• Download Datasets: USB and IR ports for downloading stored datasets to a PC or printer (requires optional IR Printer)



• Remote Monitoring: Climatic values can be transferred real-time to an FTP (File Transfer Protocol) site using optional PosiSoft software. Ideal for viewing climatic conditions from a remote location.

Wireless, battery-operated

Prints both text and graphics

Receives data via an invisible infrared beam
