DeFelsko DPMD3 Positector DPMD3 Advanced Dew Point Meter for Environmental Monitoring with PRBDPMD Cabled Probe with 1/2" NPT Threads.
The DeFelsko DPMD3 Positector DPMD3 Advanced Dew Point Meter for Environmental Monitoring with PRBDPMD Cabled Probe with 1/2" NPT Threads measures and records climatic parameters including: Air temperature, relative humidity and dew point temperatures.
Conforms to ISO 8502-4, BS 7079-B4, ASTM D3276, IMO PSPC, SSPC-PA7 and US Navy NSI 009-32

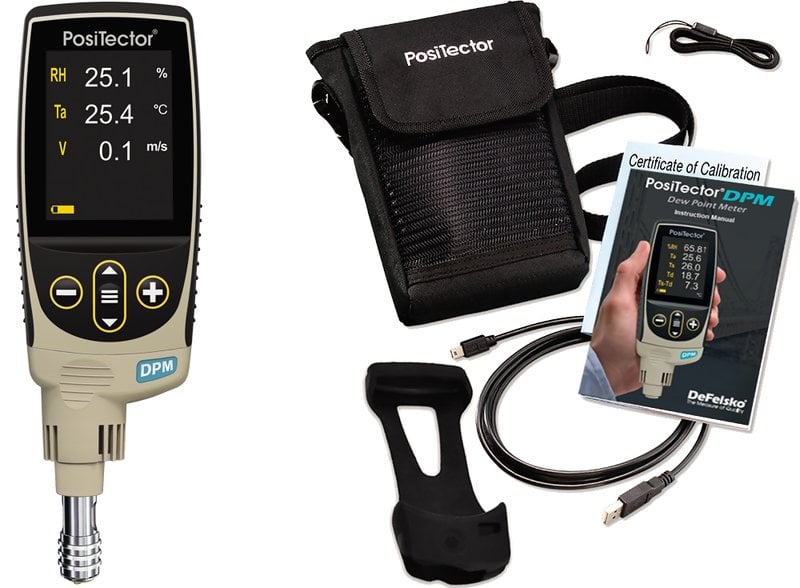

Kit Contents
The DeFelsko PosiTector DPMD3 Advanced Dew Point Meters Kit includes everything needed for testing:
- PosiTector Advanced Gage Body BDYADV
- PosiTector DPMD Probe PRBDPMD
- Protective Rubber Holster
- Wrist Strap and Protective Lens Shield
- 3 AAA Alkaline Batteries
- PosiSoft Software and USB Cable
- Long Form Certificate of Calibration Traceable to NIST
- Protectiv Carrying Case and Instructions
- Two (2) Year Warranty
Features
Simple
- All readings are constantly updated and displayed simultaneously
- Alarms indicate when climate conditions are unsuitable for painting
- NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
- NEW On-gage help explains menu items at the touch of a button
- No need to consult complex tables or use a slide rule calculator
Durable
- NEW Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
- NEW Ergonomic design with durable rubberized grip
- Shock-absorbing, protective rubber holster for added impact resistance
- Two year warranty on gage body AND probe
- Accurate
- Fast response precision sensors provide accurate, repeatable readings
- SmartTrend™ Indicators identify rising, falling, or stable readings
- Certificate of Calibration included showing traceability to NIST
- Conforms to national and international standards including ISO and ASTM
Powerful
- NEW Screen Capture—save 100 screen images for record keeping and review
- NEW Instant-on feature quickly powers up the gage if recently powered down
- NEW Up to 30% longer battery life
- USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.
- PosiSoft USB Drive—stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
- Includes PosiSoft suite of software for viewing and reporting data
- Software Updates via web keep your gage current
- Every stored measurement is date and time stamped
Standard Model Features
Includes ALL features as shown above plus:
- Storage of 2,500 datasets—stored readings can be viewed or downloaded
- Auto Log mode runs unattended on batteries for up to 60 hours or continuously via USB
Advanced Model Features
Includes ALL features as shown above plus:
- NEW Storage of 250,000 datasets in up to 1,000 batches
- Enhanced Auto Log mode turns the gage off between readings for up to 8 months of battery life. Each reading can be uploaded to PosiSoft.net or an FTP server using WiFi. Automatically group readings into batches at daily, weekly, or monthly intervals.
- User defined limits for all parameters—visible and audible warnings. Receive email alerts when connected to WiFi.
- Trend Charts graph readings in real-time
- NEW Touchscreen keyboard for quickly renaming batches, adding notes, and more
- Wet bulb temperature can be displayed and recorded
- WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
- Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.
- Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols
Specifications
* DPM IR models only
** At 23˚ C ambient | † DPM A models only
‡dependent on RH. |
PosiSoft Suite of Software
Downloads
F.A.Q.
Do your instruments require any formal training for use? Do you offer ‘demo’ models?
No. Our instruments are designed for simple operation, feature easy-to-use menus, both full and quick instruction manuals, and helpful videos. In lieu of demonstration models, we provide unlimited technical support via telephone and/or email, and a limited 30-day money back guarantee.
How often should the PosiTector probe be recalibrated?
PosiTector probes include a Certificate of Calibration with no expiry or end date. They have no shelf life, therefore the length of time in the field is not a good indicator for recalibration intervals. Many organizations with quality programs and recertification programs require annual recalibrations, and this is a good starting point for most users. DeFelsko recommends that customers establish calibration intervals based upon their own experience and work environment. Based on our product knowledge, data and customer feedback, a one year calibration interval from the date the instrument was placed in service is a good starting point.
Is the PosiTector DPM L calibrated at the factory?
The PosiTector DPM L arrives fully calibrated and ready to measure. A Long-Form Certificate of Calibration traceable to NIST or PTB is included, which documents actual readings taken by your instrument at our calibration laboratory on standards traceable to a national metrology institute. Beware of ‘Certificates’ or ‘Certificates of Conformance’ offered by competitors. These typically do not include actual instrument readings, and are often insufficient to meet common quality requirements.
Does the PosiTector DPM L provide a wet-bulb temperature measurement?
Yes. When combined with either a PosiTector Advanced gage body or iOS/Android smart device, the DPM L will indicate a wet-bulb temperature measurement.
Is the PosiTector DPM L suitable for applications with low or negative dew point temperatures?
The PosiTector DPM L provides accurate dew point readings (±3° C) down to -40° C.Dew point is a calculated value, based on temperature and humidity. At low negative dew point temperatures, the calculation is highly dependent on relative humidity and changes of ±3% RH (the tolerance of the PosiTector DPM’s humidity sensor) can have a significant impact on the dew point temperature.The Dew Point (Td) Accuracy page details the accuracy of the calculated dew point temperature based on the measured temperature and humidity.
How long does it take the logger to acclimate, and provide accurate readings in a new environment?
The PosiTector DPM L, like other electronic dew point meters, requires adequate time to acclimate to its operating environment. When moving between similar environments, the instrument will stabilize in a matter of seconds. However, when moving between environmental extremes (like between a dry, air conditioned vehicle and the warm, humid outdoors) it can take up to 30 minutes for readings to stabilize.If left in a dry environment for an extended period of time, this stabilization process may take longer. To restore the original response time, wrap the sensor in a damp cloth overnight.
Is the PosiTector DPM L suitable for logging temperatures inside an oven?
No. We do not recommend our PosiTector DPM L for operation in an oven. Delicate internal components and assembly materials are prone to premature damage when subjected to prolonged use in a closed environment with temperatures greater than approximately 50° C (122° F).
How long does the battery last on a PosiTector DPM L?
Depending on the logging interval, the battery on a PosiTector DPM L can last several months. For example, at 5 minute intervals the logger will last 120 days. At 1 hour intervals, the PosiTector DPM L will last 200 days. The stated battery life is for unattended logging. Battery life is reduced while connected to the PosiTector app or instrument.
What is the operating temperature range of the PosiTector DPM L
The operating temperature range of the PosiTector DPM L is -10 to 60° C (14 to 140° F).
