Price: $1,095.00
Designed for compression and tensile testing of small samples
It precisely measures push pull forces as low as 0.0001 lb with an accuracy of ± 0.5% full scale ±1 digit
Includes Gauge and Test Stand
Force Test System |
 The FTS-MG is a complete Force Test System designed for compression and tensile testing of small samples. It precisely measures push pull forces as low as 0.002 lb with an accuracy of ± 0.5% full scale ±1 digit. The precision hand wheel allows fine control with greater consistency in testing results. An optional dial indicator kit displays up to 1" of displacement.
*NOTE: Shown with optional attachments |
 Features
 Mounting holes for bench mounting |
| Optional 1" [25.4mm] dial indicator travel kit |
| Display "real-time" or "peak" force |
| Push-button calibration |
| Battery life: 30 hours of continuous operation |
|
| Battery or AC operation |
| Large baseplate with 5 #10-32 UNF holes for fixture mounting |
| User-selected units of Pounds, Kilograms or Newtons |
| Includes NIST-Traceable calibration certificate |
| 3 Year Warranty |
|
Force Ranges
| Model |
Capacity |
Resolution |
| FTS-2MG |
2 lb
1 kg
10 N |
0.002 lb
0.001 kg
0.01N |
| FTS-10MG |
10 lb
5 kg
50 N |
0.01 lb
0.005 kg
0.05 N |
| FTS-50MG |
50 lb
25 kg
250 N |
0.05 lb
0.02 kg
0.2 N |
| FTS-100MG |
100 lb
50 kg
500 N |
0.1 lb
0.05 kg
0.5 N |
| |

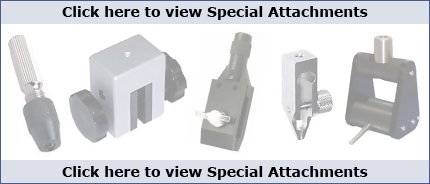

Standard Attachments
Dimensions
Related Products
ES001
Dial Indicator / Distance Meter |
 |
Displays up to 1" of displacement
Resolution of 0.001" |
| ___________________________________________ |
| ES002
Digital Indictator / Distance Meter |
 |
Displays up to 1" (25.4mm) of displacement
Resolution of 0.0005" (0.01 mm) |
Specifications
Capacity |
100 lb (45 kg) |
Stroke |
9" (229mm) |
Travel Rate |
0.06" (1.5mm) per revolution |
Accuracy |
± 0.5% of full scale, ±1 least significant digit |
Sampling Rate |
30 readings per second |
Display |
4 1/2 digit LCD with .3" high characters. Indicators for low battery, units and mode of operation |
Power |
Non-rechargeable 9V battery or AC operation with included adapter |
Battery Life |
30 hours of continuous use, LO BAT indicator |
Sensor Deflection |
0.010" (0.25 mm) maximum deflection at full load |
Overload Protection |
150% or higher |
Accessories Included |
Hook and Flat head |
Warranty |
3 years |
