Tramex BSIZK5.1 Building Survey Inspection EZ Kit

See More Building Survey Inspection Kits

Tramex BSIZK5.1 Building Survey Inspection EZ Kit

See More Building Survey Inspection Kits
This product has been discontinued

Product Description
This product has been replaced by the Tramex BSIZK Kit
Tramex BSIZK5.1 Building Survey Inspection EZ Kit
Audio signal sounds when meter indicates high readings.
Large clear backlit digital display giving meaningful readings.

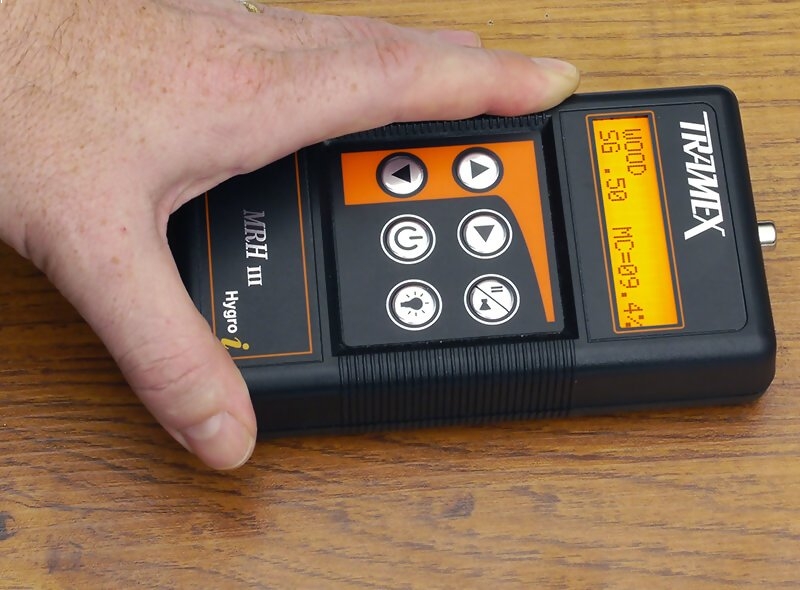

The Tramex BSIZK5.1 Building Survey Inspection EZ Kit is a complete moisture and humidity testing kit. The Tramex BSIZK5.1 features the multifunctional Tramex MRH III Moisture and Humidity Meter allowing for non-invasive testing of moisture conditions in numerous building materials such as drywall, wood, plaster, brick, ceramic tiles, resilient flooring, laminates and roofing. The MRH III and reusable relative humidity probe allow for testing relative humidity, temperature and dew point in the environment. The heavy-duty pin-probes measure moisture content in wood, and the insulated 7” pins allow for deep wall cavity probing. Concrete slab relative humidity testing to ASTM F2170 can also be performed with reusable relative humidity probes and hole liners (optional).


line

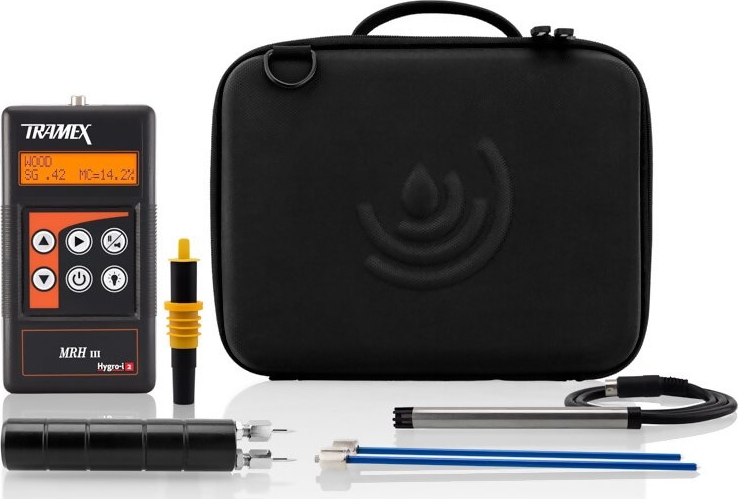

Kit Contents
line


line
Features
line

  • Deep signal, non-destructive penetration up to 1¼" in wood and drywall in non-destructive mode.
  • Detects moisture through paint, wall coverings, drywall, ceramic tiles, floor coverings, wood, roof coverings and most building materials.
  • Hold function “freezes” meter reading when inspecting areas where the meter face is not visible.
  • Audio signal sounds when meter indicates high readings.
  • Large clear backlit digital display giving meaningful readings.
  • Accurate non-invasive moisture content readings from 5 to 55% MC in wood.

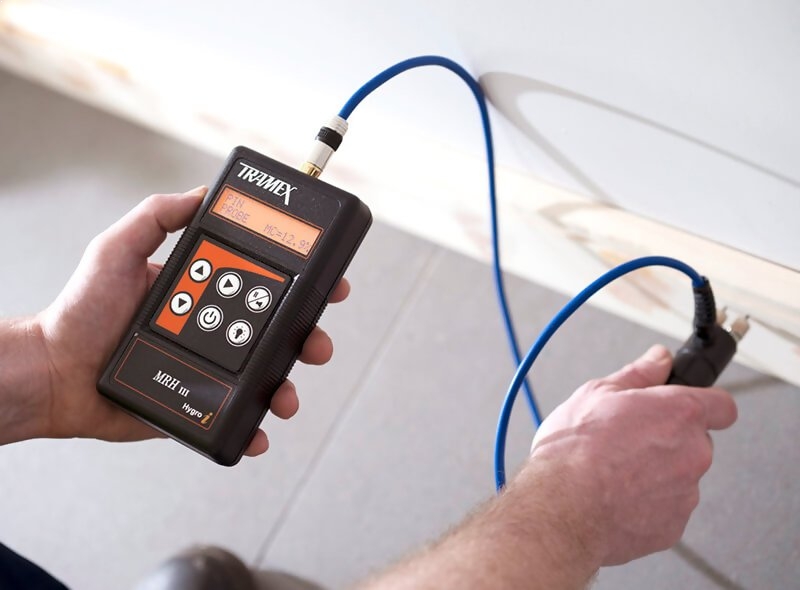

  • Attachable pin-type wood probe for accessing hard to reach areas and for probing into wall cavities and wood.

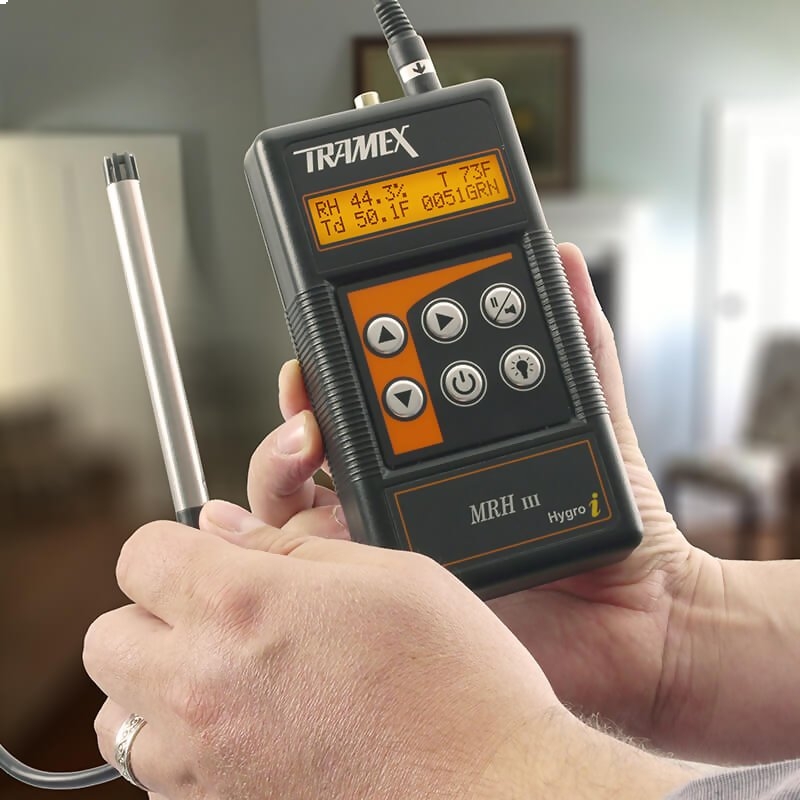

  • Attachable Relative Humidity probe for testing of relative humidity, temperature, dew point and grains per pound readings all shown on one clear display, (as well as in situ of concrete per ASTM F2170 with optional Hygro-I probes, hole liners and caps).


line
Specifications
line

Size13.8" x 9.1" x 3.5" (350mm x 230mm x 90mm)
Weight3.4lbs (1.55kg)
Power3.4lbs (1.55kg)
BatteryIncluded
Measuring range - MRH III
Depth of penetrationup to 1¼"(30mm) (in wood, drywall)
Reference scale for building materials0 to 100
Relative Humidity (with RH probe)0 to 99%
Humidity accuracy10% to 90%RH +/-1.8% @ 25°C / 77°F
Wood Non-invasive Mode5 to 55%MC (at SG of 0.3)
Wood Invasive Mode (with wood pin probes) 7 to 40%MC


line
Related Products
line

Tramex MRH III Moisture and Humidity Meter

  • Moisture testing of wood, drywall, masonry, roofing and other construction materials
  • Deep signal penetration up to over 1" into the materials being tested without the need to damage the surface
related

line

Tramex SAL75 Calibration Salt Check

  • Calibration Salt Check for Tramex Hygro-i2 Relative Humidity Probe. The calibration salt check allows for regular calibration checks. Designed to produce a 75% RH environment within the chamber which may be used to ensure the calibration of the Hygro-i2®RH probe is optimum
  • Order Code: SAL75, for Tramex RHP-LW Long RH Probe, Tramex RHP-SW Relative Humidity Probes
  • Order Code: SAL75S, for Tramex RHP-NW Narrow Wand Relative Humidity Probe, Tramex RHP-SW Relative Humidity Probes
  • Order Code: SAL75N for Tramex RHP-NW Narrow Wand Relative Humidity Probe, Tramex RHP-SNW Short Narrow Wand Relative Humidity Probe
  • Order Code: SAL75-6 for Tramex Hygro-i2 Relative Humidity Probe for calibration checking of 6 probes at once.
related

line

Tramex IRT2 Infrared Surface Thermometer

  • his hand held, infrared surface thermometer features a laser target pointer to gain instant readings on almost any surface from a distance.
related

line

Tramex Heavy-duty Pin-type Wood Probe with Cable and Pins

  • For use with CMEX5, CMEX2, MRH3 & PTM.
  • Order Code: HH14TP30 (For use with CMEX2, MRH3 and PTM)
  • Order Code: HH14TP30B (For use with CMEX5)
related

line

Tramex HA21SP52 Hammer-Action Pin-Type Electrode

  • Hammer-action pin-type electrode (With Cable And Pins) for use with CMEX5, MRH3.
  • Order Code: HA21SP52 (For use with MRH3)
  • Order Code: HA21SP52B (For use with CMEX5)
related

line

Tramex SP200 Spare 7" Pins for Pin Probe HH14SP200

  • Heavy-Duty Electrode with Cable and 7" (200mm) Long Pins for use with CMEX5, MRH
  • Order Code: HH14SP200 For use with MRH3
  • Order Code: HH14SP200B For use with CMEX5
related

line

Tramex CALCRH Calibration Check for CME5, CMEX5

  • Heavy-duty Pin-type Electrode with Cable and 3" pins for use with CMEX5, MRH3
  • Order Code: HH14SP90 For use with MRH3
  • Order Code: HH14SP90 For use with CMEX5
related

line

Tramex ASTM F2170 Accessory Pack

  • Accessory Pack for RH testing
  • The AP-F2170-B for use with the: CMEX5 and DL-RHTX
  • The AP-F2170 for use with the: CMEX2 and MRH3
related


line
Downloads
line

Tramex BSIZK5.1 Building Survey Inspection EZ Kit - Data Sheet
Tramex BSIZK5.1 Building Survey Inspection EZ Kit - Instruction Manual
Tramex BSIZK5.1 Building Survey Inspection EZ Kit - Quick Guide
Tramex MRH III Moisture & Humidity Meter - Quick Guide
Tramex MRH III Moisture & Humidity Meter - Instruction Manual
Tramex MRH III Moisture & Humidity Meter - Data Sheet
Accessories for Tramex Moisture Meters - Online Catalog
