12 Tension Ranges
Up to 1,000 grams

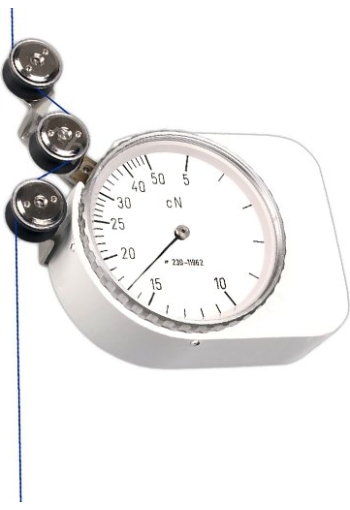

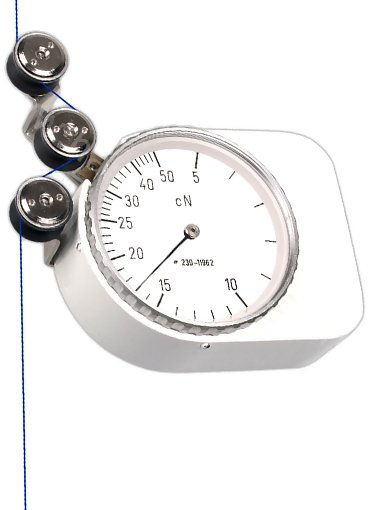

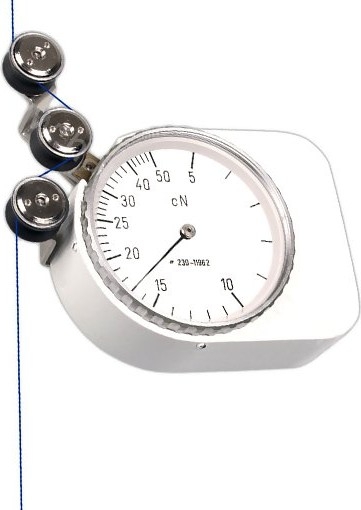

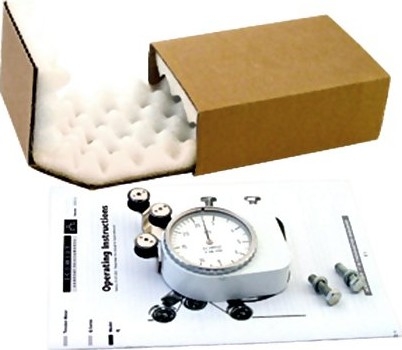

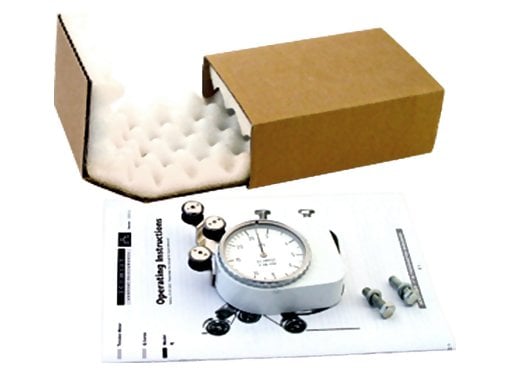

The CHECK-LINE model ODT Tension Meter accurately measures running line tensions on a wide variety of yarns, fibers, wires, etc. It's designed for fixed mounting for continuous tension measurement.
Threaded mounting holes are provided on the back side and edge of the housing.
Features
- Easy-to-read analog scale.
- Chromed steel, V-grooved guide rollers for speeds up to 1000 m/min or, optionally, 3000 m/min.
- Magnetic damping minimizes tensions fluctuations.
- Adjustable maximum tension detector can provide a low voltage signal when tensions exceed user-set limit.
Specifications
| Accuracy | ±1% Full Scale (FS) or ±1 Graduation mark |
| Scale Diameter | 58mm |
| Roller Material | Chromed Steel - Standard
Hard-coated aluminum (K) - Optional |
| Housing Material | Die-cast aluminum |
| Weight | 0.7 pounds (300 g) |
| Dimensions | 3.1" x 2.5" x 1.1" (78 x 62 x 27mm) |
Tension Ranges
| Model | Range | Model | Range |
| ODT-10 | 2 - 10 grams | ODT-200 | 20 - 200 grams |
| ODT-20 | 2 - 20 grams | ODT-300 | 20 - 300 grams |
| ODT-30 | 3 - 30 grams | ODT-400 | 40 - 400 grams |
| ODT-50 | 5 - 50 grams | ODT-500 | 50 - 500 grams |
| ODT-70 | 10 - 70 grams | ODT-800 | 20 - 800 grams |
| ODT-100 | 10 - 100 grams | ODT-1K | 50 - 1000 grams |
NOTE: Add "-X" for optional peak Tension detector, ie: ODT-100-X

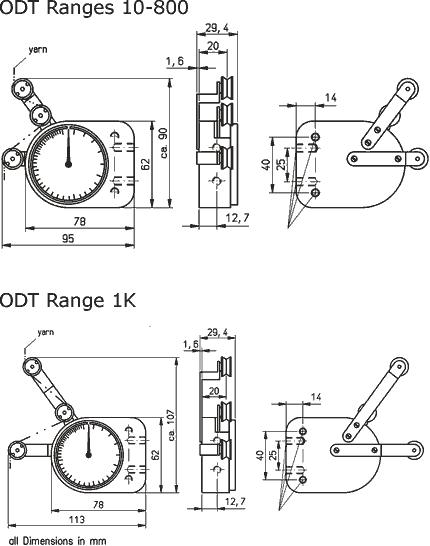

Dimensions
Downloads
