8 Tension Ranges
Up to 500 grams

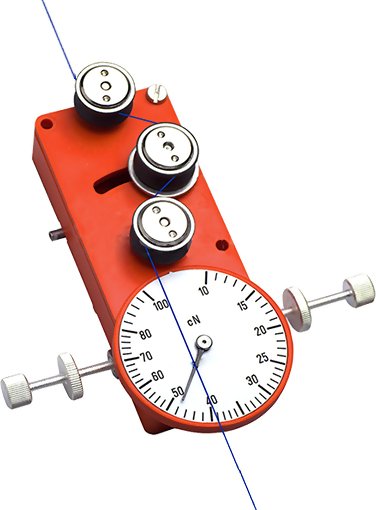

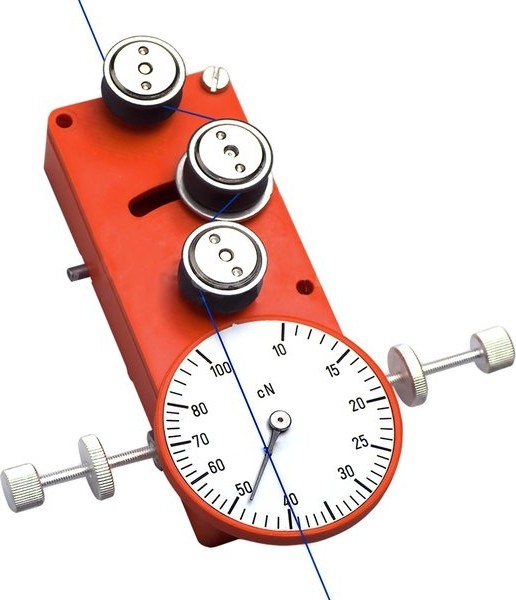

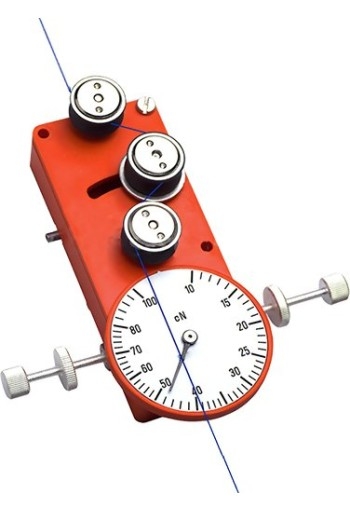

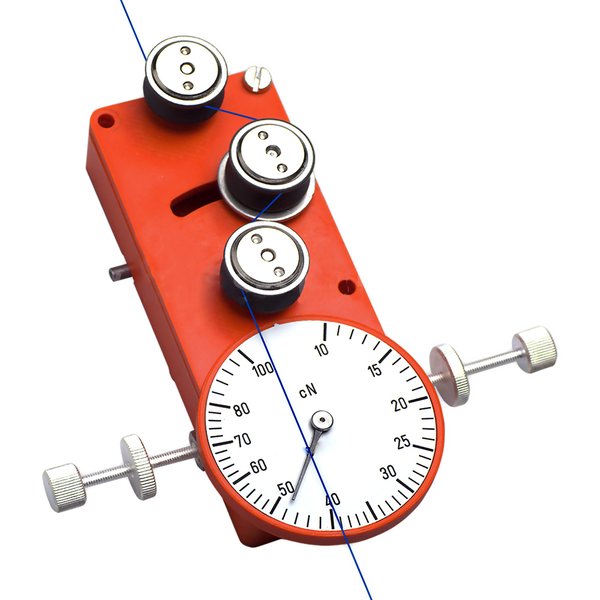

The CHECK-LINE model MK Tension Meter accurately measures running line tensions on a wide variety of yarns, fibers, wires, etc. It's designed for fixed mounting for continuous tension measurement.
Threaded mounting holes are provided on the back side and edge of the housing
Features
- Adjustable maximum tension detector contact can provide a low voltage signal when tensions exceed the user-set maximum limit.
- Built-in magnetic damping averages out tension fluctuations.
- Chromed steel, V-grooved guide rollers for speeds up to 1000 m/min or, optionally, 5000 m/min.
Tension Ranges
| Model | Range | Model | Range |
| MK2-12 | 3 - 12 grams | MK2-100 | 10 - 100 grams |
| MK2-20 | 5 - 20 grams | MK2-250 | 20 - 250 grams |
| MK2-30 | 5 - 30 grams | MK2-300 | 20 - 300 grams |
| MK2-50 | 10 - 50 grams | MK2-400 | 50 - 400 grams |

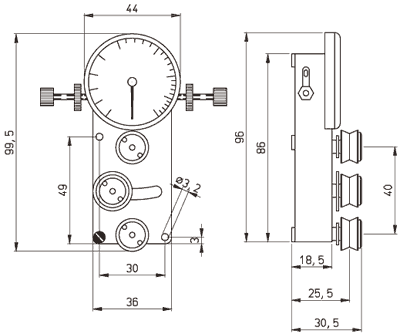

Dimensions
Downloads
