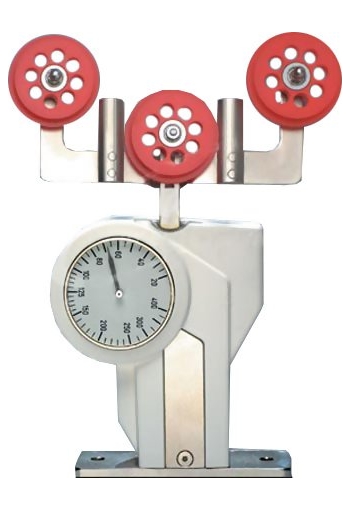

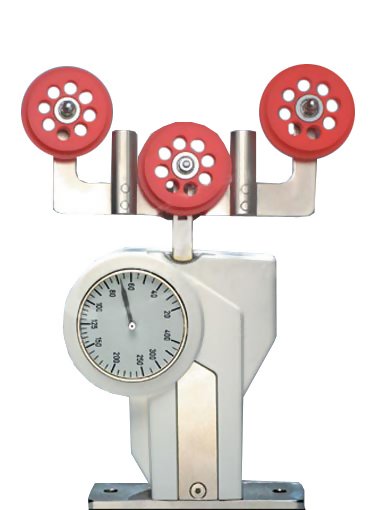

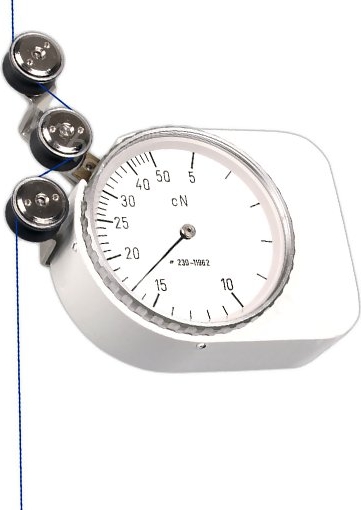

Stationary Tension Meter for Fragile Filaments
Large diameter rollers and 100 mm spacing between outer rollers minimize damage to optic fibers and similar materials that cannot withstand a small bending radius.
Built-in mounting holes permit fixed installation for continuous in-line use.
Features
- Standard roller material is Delrin plastic or, optionally, aluminum (L).
- Lightweight, low inertia 32 mm diameter rollers for speeds up to 2000 m/min or, optionally, up to 4000 m/min (K).
- The analog display shows changing and fluctuating tensions fast and enables an optimal process adjustment.
- Large bending radius assures gentle handling of the material being measured.
- Built-in mounting holes permit fixed installation for continuous tension measurement.
- Special guides on the bracket assembly permit easy material acquisition.
Specifications
| Accuracy | ±1 % full scale or ±1 graduation on scale |
| Diameter of Scale | 41 mm |
| Temperature Range | 10 - 45 ºC |
| Air humidity | 85 % RH, max |
| Housing material | Die-cast aluminium |
| Housing Dimensions | 127 x 85 x 45 mm (LxWxH) |
Tension Ranges
| Model | Range | Measuring Width Head |
| FX2S-50 | 10-50 g | 140 |
| FX2S-120 | 20-120 g | 140 |
| FX2S-400 | 20-400 g | 140 |
| FX2S-1000 | 50-1000 g | 140 |

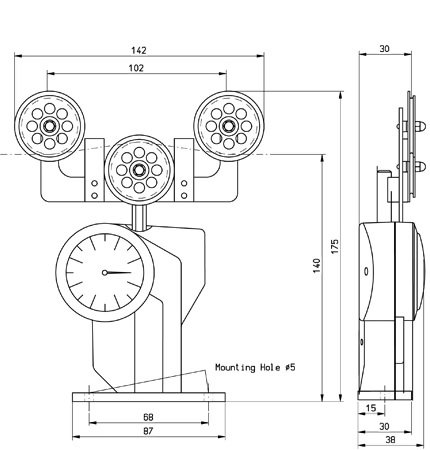

Dimensions
Guide Rollers
| Order Code | Line Speed
vmax...m/min | Roller Material | |
| Standard | 4000 | Plastic (PVC) red | |
| Code L | 4000 | Hardcoated aluminium | |
