Measuring amplifier unit for field installation

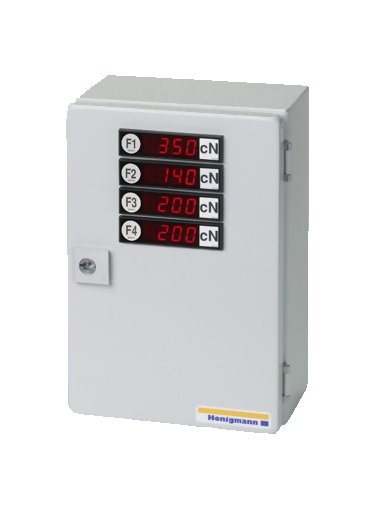

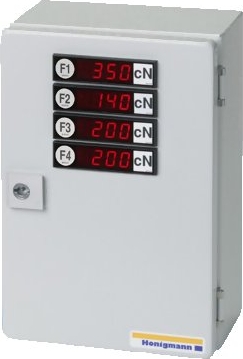

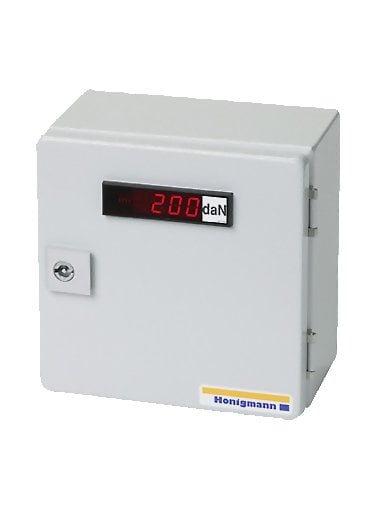

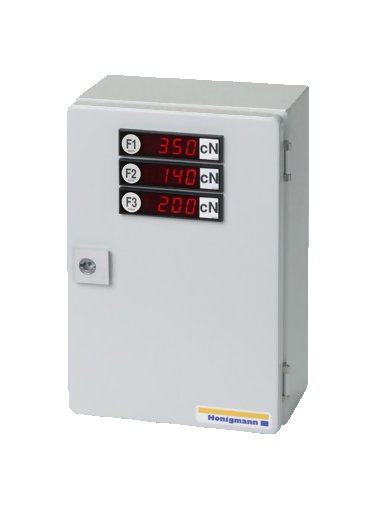

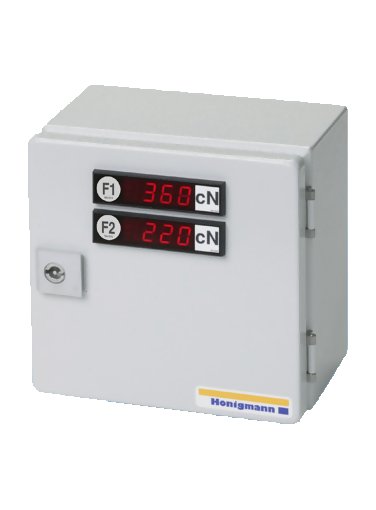

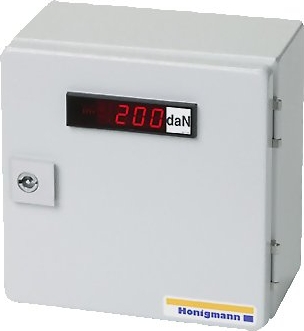

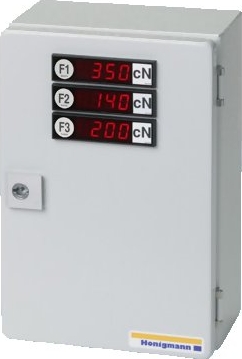

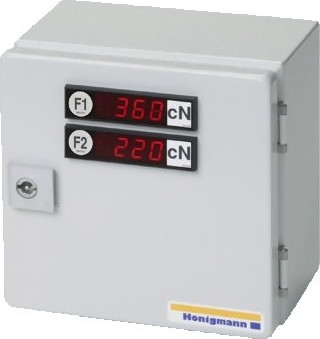

MU621 Tension Indicator/Amplifier Console
Features
- for strain gauge sensors
- 1 to 4 measuring channels
- includes TS621 Amplifier and DPM502 Indicator
- scalable to all engineering units
- requires 24V DC power
- rugged industrial design in steel plate-housing
Specifications
| Display Range | 0– 1999 (calibrated for any units) |
| Display | 3 1 /2 - digit Red LED, 14.4mm high |
| Decimal Point | User-selected via internal jumper |
| Power Supply | 24 VDC @ 100mA |
| Analog Output | 4–20 mA or 0–10 VDC, user selected |
| Frequency Response | 1 Hz (with damping filter)
40 Hz (without damping filter) |
| Enclosure Material | High-Impact Plastic |
| Dimensions | 3.78" W x 1.89" H x 4.04" D
(96 x 48 x 103mm) |
| Panel Cutout | 92 x 44mm |
| Operating Temperature | 32 to 122° F (0–50° C) |
| Relay Operation | Hi–Hi/Hi or Hi–Lo |
| Relay Rating | 1 Amp @ 250 VAC/ 30 VDC, normally open |
| Power Required | 115/ 230 VAC + 10%, 50/ 60 Hz |
