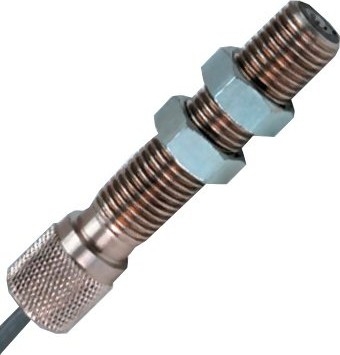

Shimpo MP-10 Magnetic Pick-Up Sensor

Provides a sine wave output whenever there is an abrupt change from non-magnetic to magnetic material moving past the sensor pole

The Shimpo MP-10 Magnetic Pick-Up Sensor a sine wave output whenever there is an abrupt change from non-magnetic to magnetic material moving past the sensor pole. The output volate is directly proportional to the change in magnetic flux intensity over the change in time.

Mounting: Unit will mount in a 5/8" threaded hole and is provided with 2 jam nuts to secure the sensor.

Adjustment: Pickup should be adjusted for a typical clearance of .01" between sensor and gear. This adjustment will provide excellent sensitivity and resolution.

Temperature Range: -40° F to 221° F

Connections

Lead WireShieldWhiteBlack
Tachometer
Terminal
ESIGOV
  • Bare: Sensor cable shield
  • White: Signal output lead
  • Black: Sensor common


line
Speed vs. Voltage
line


line
Dimensions
line


ADD TO CART THE ITEMS YOU WOULD LIKE TO PURCHASE
ModelsPrice
$125.00
