PK2 Pocket-Strobe

See More Stroboscopes
This product has been discontinued

Product Description
The PK2 has been replaced by the PK2X.
Type: New & Improved Pocket-Strobe™, Compact Battery Powered Stroboscope
Range: 30 - 12,500 RPM/FPM
Power: Internal Battery or AC-Power

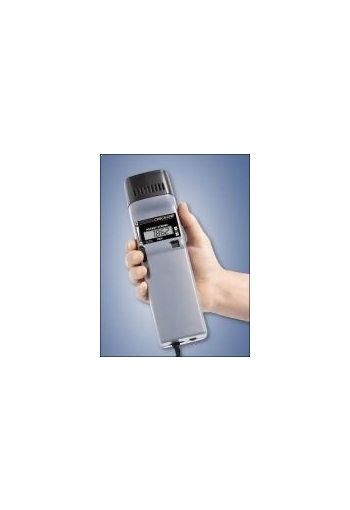

The CHECK-LINE Pocket Strobe™ Model PK2 is a highly stable instrument for taking non-contact RPM measurements and inspecting moving parts by “freezing” or “slowing down” the action.

The PK2 requires only one hand to operate, yet delivers performance comparable to much larger and heavier “pistol-grip” type models.

The PK2 is ideal for industrial, laboratory, R&D and academic environments. Its small size and excellent performance provide superior convenience and value — at a reasonable price.

Features

l
Internal NiMH battery provides one hour of continuous operation, regardless
l
Accepts input from sensor for external flash triggering
l
Includes NIST calibration Certificate
l
Fits in pocket or can be worn on optional belt holster—small
l
Resolution of 1 RPM over the entire range with highly accurate speed contr
l
Bright (800 Lux) flash intensity with life of 100 million flashes
l
CE Certification

Complete Kit

l
Stroboscope, battery charger, external triggering jack, NIST-traceable calibration certificate and instruction manual, all supplied in a hard shell carrying case.




Optional Accessories

PK2-TBE Spare Xenon Flash Tube
PK2-HLT Padded-vinyl & leather belt-clip holster
PK2-PHONO Connection jack for external
trigger input signal
PK2-TRI Telescoping tripod
PK2-BNC External triggering cable; 6 ft. long;
1/8" male to BNC male connections
PK2-8M External triggering cable; 6 ft. long;
1/8" male to 1/8" male connections
PK2-BAT Replacement NiMH Battery Pack
PK2-BC-WORLD Replacement Universal Battery
Charger (100-240 VAC)

Specifications

Flash Range:
30 - 12,500 FPM
Flash Brightness:
800 Lux
Accuracy:
±0.01% over entire range
Resolution:
±1 FPM over entire range
Display:
5-digit LCD
Display Update:
0.5 seconds
Flash Energy:
150 mJ
Flash Tube
Longevity:
100 million flashes
Flash Duration:
< 20µs
External Trigger:
0-5 volt, DTL/TTL compatible 1/8" jack
Optional Signal
Output*:
0-5 volt, DTL/TTL compatible 1/8" jack
*OT Model Only
Operating Time:
Time:
1 hour, regardless of flash rate
Battery Charger:
Power Required - 100-240 VAC, 50/60 Hz
Output - 4.8-12 VDC @ 600 mA max
Charging Time - 2-3 hours, typical
Overcharge Protection:
Yes
CE Certification:
Yes
Weight:
1.1 lbs (550g) including battery
Housing Material:
High Impact ABS Plastic
Reflector Material:
Aluminum
Tripod Mount:
1/4-20, female insert
Operating Temp:
32 to 104° F (0 to -40° C)
Dimensions:
9–3/4" x 2–3/4"x 1–3/4" (2–1/4" at reflector)
Warranty:
1 year
