    Product Description

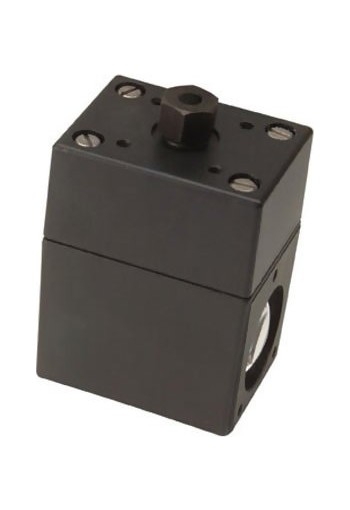

    Shimpo MCS-625 Photo Reflective Sensor


    The Shimpo MCS-625 Photo Reflective Sensor consists of a LED infra-red light source sensing device and amplifier contained in a heavy-duty housing. For initial alignment purposes, a small indicator lamp is mounted in the top of the sensor housing. The MCS-625 has an open collector output and requires a pull up resistor

    Specifications

    Operating Range1" to 3ft
    Power Input12 to 18VDC at 35 to 50mA
    Activation Frequency250Hz
    Ambient Temperature-30ºC to 50ºC ( -22ºF to 122ºF)
    OutputOpen collector type sink current 250mA max
    Cable length10ft
    Weight18.5 oz
    HousingZinc die cast
    Mounting4 mounting holes in base, 3 holes in face
