Digital Xenon Stroboscope with Internal Battery
Range: 40 - 35,000 RPM/FPM
Power: Internal Battery
Flash Range: 40-35,000 RPM/FPM

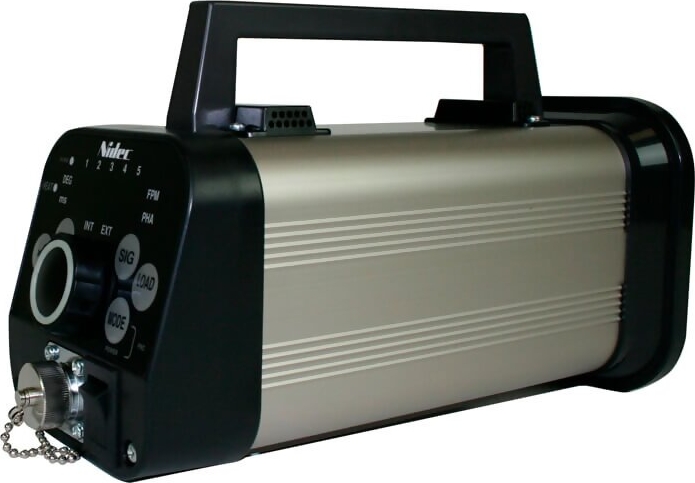

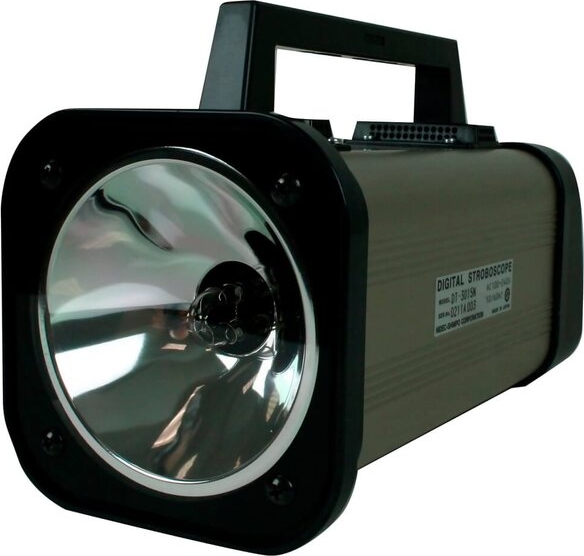

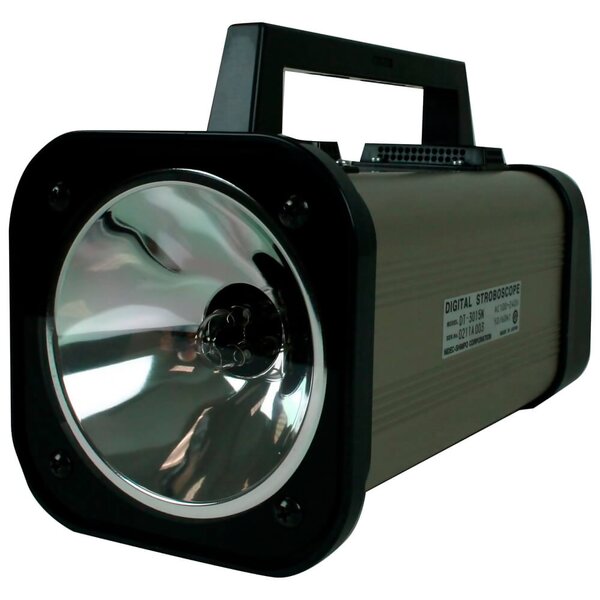

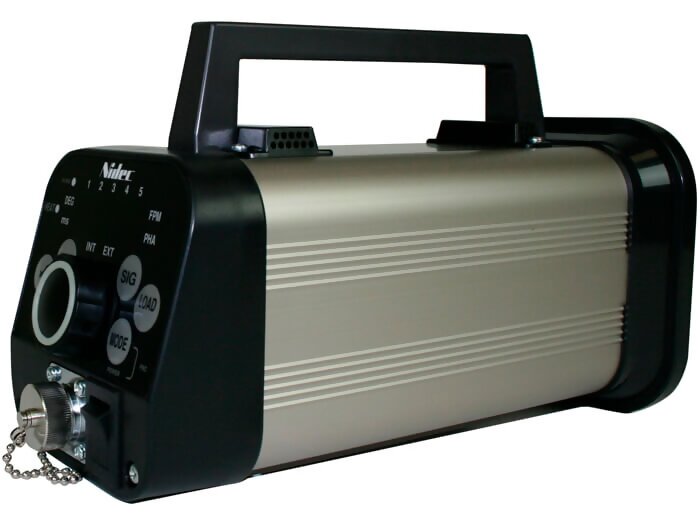

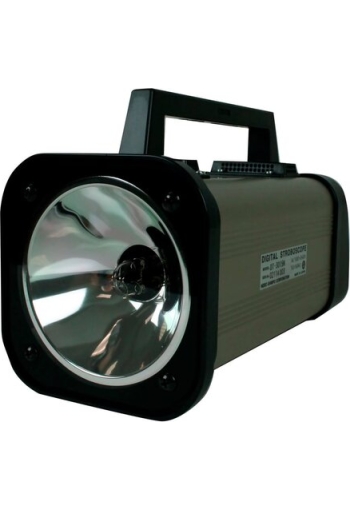

The Shimpo DT-3015N Portable Xenon Stroboscope with Rechargeable Battery is a rugged, battery-powered xenon stroboscope designed for non-contact RPM measurement, inspection, and observation of moving parts by "freezing" or "slowing down" the motion. The Shimpo DT-3015N Portable Xenon Stroboscope with Rechargeable Battery provides power flexibility as in addition to its internal rechargeable battery it can operate from AC power.
Kit Contents
- Shimpo DT-3015N Portable Xenon Stroboscope
- Input signal connector
- Charger adapter with cable
Features
- Internal, fast-charge rechargeable battery
- Aluminum construction provides exceptional durability
- High polish and focused reflector creates a uniform light
- External trigger allows unit to be automatically synchronized with equipment
- Light emission auto-off feature from 1 - 120 min enables extended battery operatio
- Phase shift, set in degrees or ms, allows visual analysis of rotating/reciprocating objects

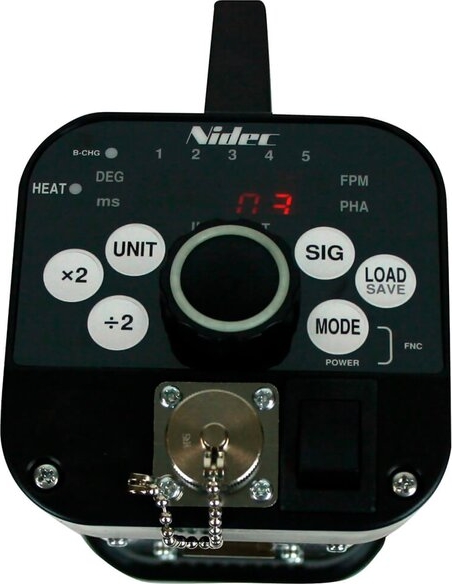

- Save up to 5 user configurations to enable switching quickly between machinery
- Synchronous output enables strobe to drive other strobes
- Easy tri-pod (optional) or permanent mounting with integral mounting thread
- Specify IEC-C13-EURO for use with a EURO Type Mains Connection
- NIST Traceable Calibration Certificate is OPTIONAL
Specifications
| Flashing Range | 40.0 - 35,000 fpm (flashes per minute) |
| Accuracy | ±0.05 % of reading |
| Resolution | 30.0 to 5000.0 : 0.1 fpm; 5001.0 to 8000.0 to 0.2 fpm; 8001.0 to 10000.0 : 0.5 fpm; 10001.0 to 35000.0 : 1.0 fpm |
| Lux Rating | 8" (20 cm) Distance = 1950 lx @ 1500 fpm, 2000 lx @ 6000 fpm with 8" (203 mm) irradiation diameter.
20" (50 cm) Distance = 725 lx @ 1500 fpm, 850 lx @ 6000 fpm with 12" (305 mm) irradiation diameter. |
| Lamp Lifetime | Typ.1200 hours at 1500 fpm |

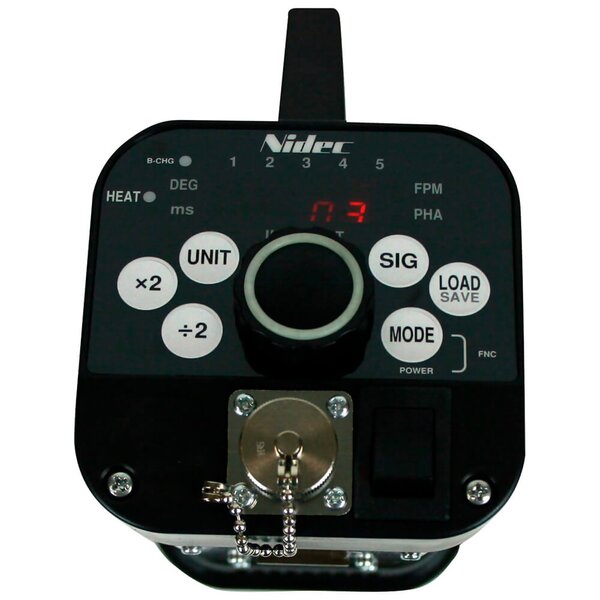

| Display | 6-digit, 7 segment red LED |
| Flash Duration | 30 μsec |
| Phase Shift | 0 to 359˚ set by 0.1˚ resolution; 0.00 to 999.99 msec set by 0.01 msec resolution, 1000.0 to 1994.4 msec set by 0.1 msec resolution |
| Power Requirement | 100 to 240 VAC 50/60Hz |
| Battery | NiMH battery- Approximate 2 hour time to full charge |
| Battery Life | Approx. 3 hours (when the emission count is 1500 FPM) |
| Input Signal | H level: 2.5 – 12 V; L level: 0 – 0.5 V Pulse width : 50 µs or more Input impedance : 10 kΩ or more |
| Input Signal Range | 27 to 35,020 fpm (1 fpm resolution) with available delay setting in degree or msec |
| Sensor Power Supply | DC 12 VDC 40 mA |
| Temperature Limits | 32 to 104°F (0 to 40°C) |
| Humidity Limits | 35 to 85% RH (Non- condensing) |
| Product Weight | 4.2 lbs (1.9 kg) |
| Approvals | RoHS |
| Warranty | 1-Year |
