Tachometer for Elevator Cable Speed, Belt Speed and other applications
Supplied with 12 inch circumference grooved wheel
Measures ft/min, ft/sec, m/min, m/sec, mph and more

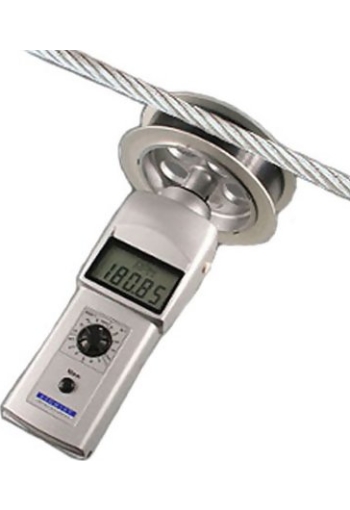

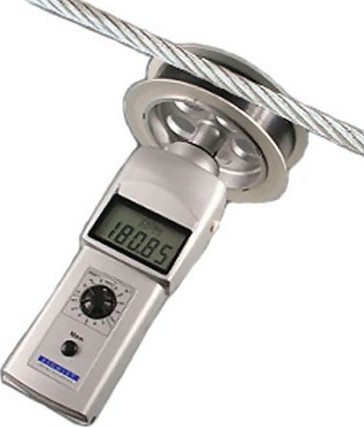

The DT-105A-12CBL is designed to measure elevator cable speed in feet per minute, meters per minute and other measuring units. It is supplied with a rugged 12” circumference wheel with large flanges to keep the cable in contact with the surface. Delivering superior performance and accuracy over more conventional flat surface wheels
Employing a non slip rubber contact surface, the wheel adds safety and accuracy while measuring speeds on Elevator governor cables, wire and cable reels, extruded tubing and many other applications
Features
- Built-in memory for last, maximum, minimum and 10 separate readings
- Rugged cast aluminum housing
- Includes Traceable calibration Certificate
- LCD Version for use in sunlight and for longest battery life (DT-105A-12CBL)
- LED version for use in poorly lit or dark environments (DT-107A-12CBL)
Specifications
| Display Range | 0.10 to 25,000 rpm with floating decimal |
| Accuracy | 0.10 to 999.99 rpm: ±0.06 rpm
1,000.0 to 9,999.9 rpm: ±0.6 rpm
10,000 to 25,000 rpm: ±0.006% rpm |
| Display | DT-105A: (LCD MODEL) 5 digit 0.47" (12mm) high
DT-107A: (LED MODEL) 5 digit 0.4" (10mm) high |
| Measurement Units | Per Second: Inches, Centimeters (optional, inquire)
Per Minute: Revolutions, Inches, Feet, Yards, Meters
Per Hour: Miles, Kilometers (optional, inquire)
Total: Revolutions, Inches, Feet, Yards, Centimeter, Meters |

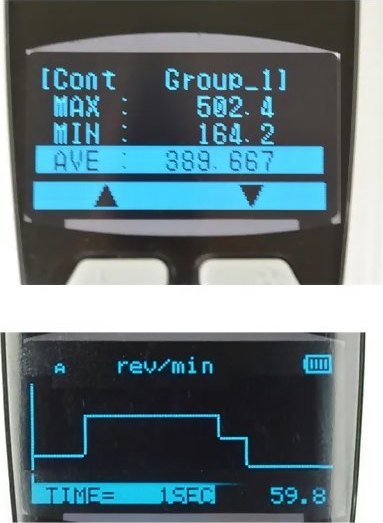

| Memory System | 13 readings are stored in memory and retained for 5 minutes
(last, max., min., and 10 measurements) |
| Detection | Optical coupler, 60 pulses/rev. |
| Update Time | 1 second (typical) |
| Over-Range Indicator | Flashing numerals |
| Batteries | 2 - 1.5 V AA |
| Battery Life | Approx. 65 hrs. (DT-105A)
Life: Approx. 40 hrs. (DT-107A) |
| Operating Temp | 32 to 113° F (0 to 45° C) |

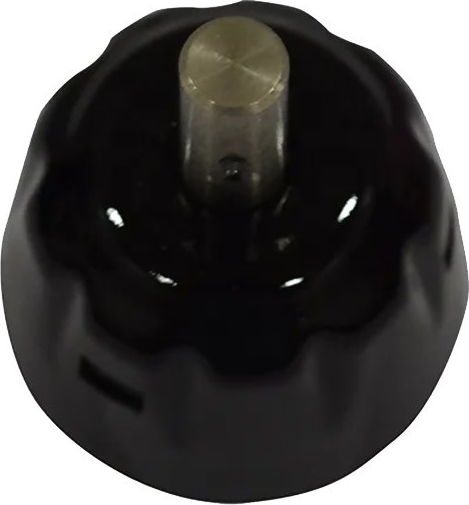

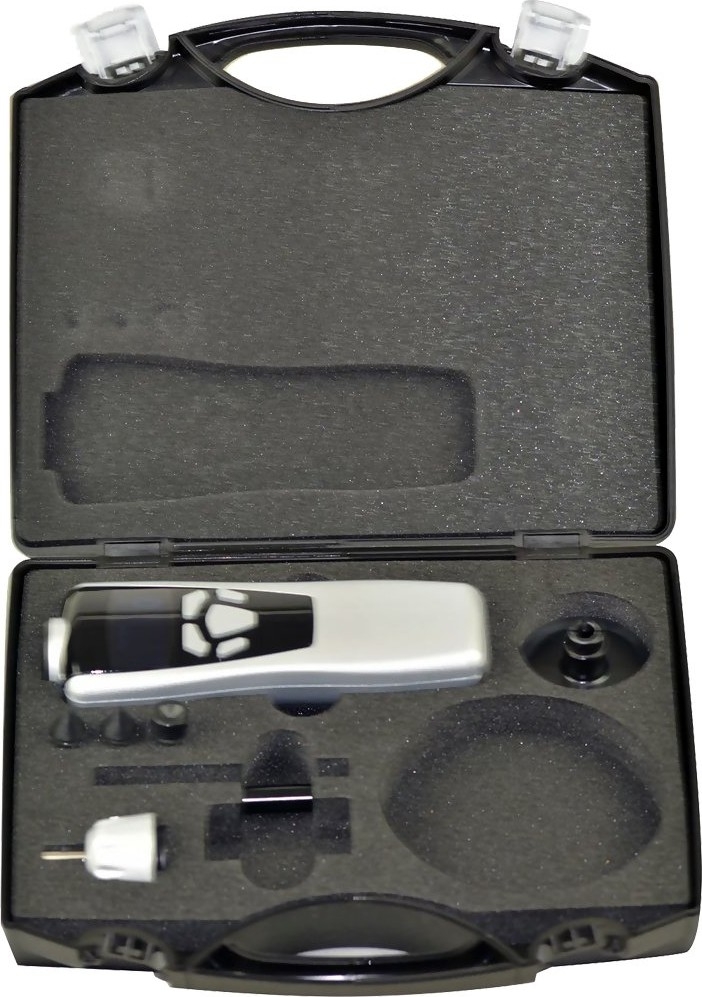

| Accessories Included | 2 cone adapters, 1 funnel adapter, 3-1/2" extension shaft, 1 surface speed wheel (6" circumference), carrying case, operating instructions |
| Product Weight | 0.9 pounds (400 grams) (without wheel) |

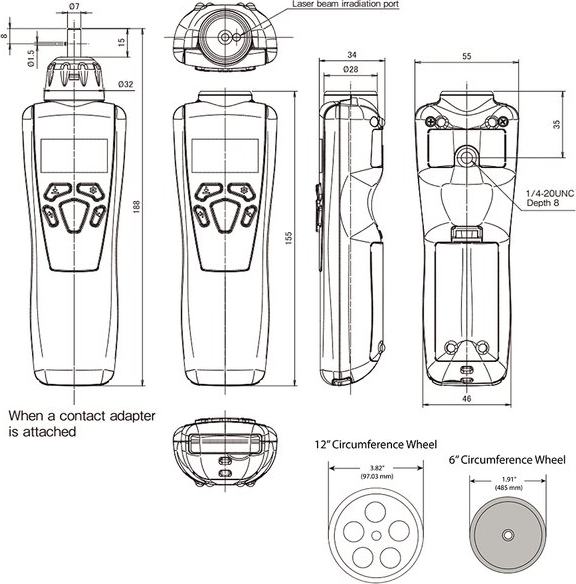

| Dimensions | 7.3" L x 2.4" W x 1.8" H |
| Warranty | 1 year |
| Country of Origin | Taiwan |
Related Products

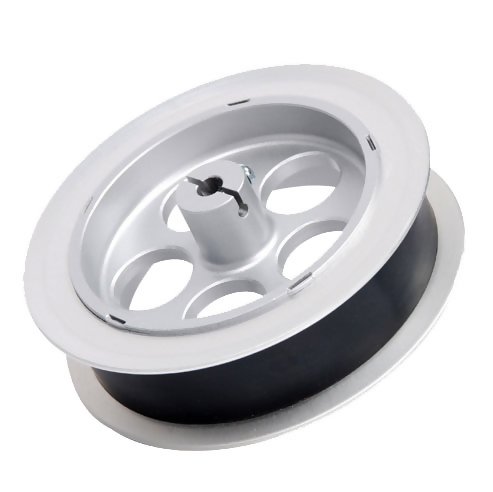

FPM-12-CBL
