4 Models:

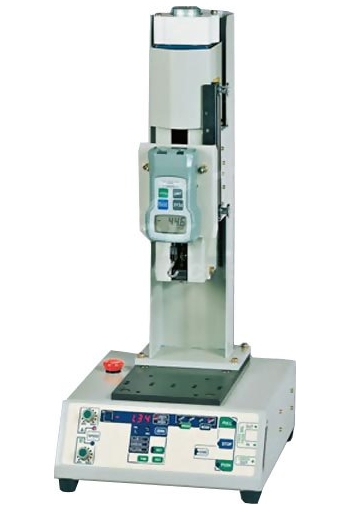

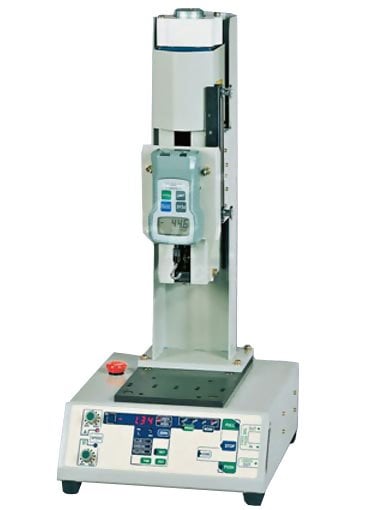

Shimpo FGS-100PVH (vertical - standard) - 110 lb Capacity
Shimpo FGS-100PVL (vertical - low speed) - 110 lb Capacity
Shimpo FGS-100PVH-230V (vertical - low speed) - 110 lb Capacity, 230V AC
Shimpo FGS-100PVL-230V (vertical - low speed) - 110 lb Capacity, 230V AC This advanced motorized test stand allow the user to obtain the most accurate, repeatable results available in the market today. The all steel construction makes the Shimpo FGS-100PVH remarkably rugged, while programming and cycling capabilities enable it to be highly intelligent. All stands have the ability to interface with our top quality force gauges, providing complete force measurement systems for the most precise testing applications. Because speed, distance, and time are controlled by the user in either a vertical or horizontal model, our motorized stands can be configured for any application. One year warranty. *Formally FGS-50PVH / FGS-50PVL
Features
- User programmable set points: speed, distance, stop time
- High and low force set points user selectable through RS232C interface or directly through DFS gauge
- Gauge overload protection
- Analog distance outputs
- Single cycle and continuous cycling capabilities
- Compatibility with nearly all manufacturers’ gauges
- All gauge functions can be communicated through stand via RS232 interface
- Manually adjustable upper and lower limits

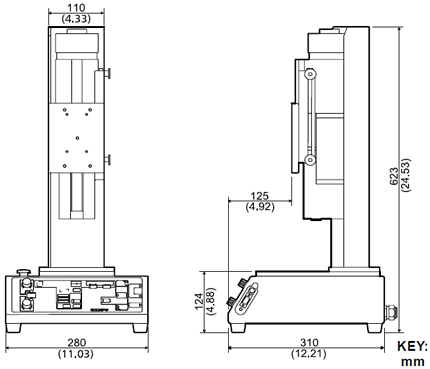

Dimensions
Specifications
| Capacity | 110 lb (50 kg) | | Stroke | 5.5" (140 mm) | | Vertical Clearance | 2.4"- 7.1" (61-181 mm)
5 steps, 1.18"/step (30 mm/step) | | Travel | 100PVH:Adjustable: 1.57-15.74"/min
(40-400 mm/min)
100PVL:Adjustable: 0.39-3.93"/min
(10-100 mm/min) | | Display | Four digit LED, 0.41" high (10.5 mm).
Reads in inches (0.01 resolution) or millimeters (0.1 resolution) | | Power | 120 VAC, 60 Hz | | Weight | 42 lb (19 kg) |
