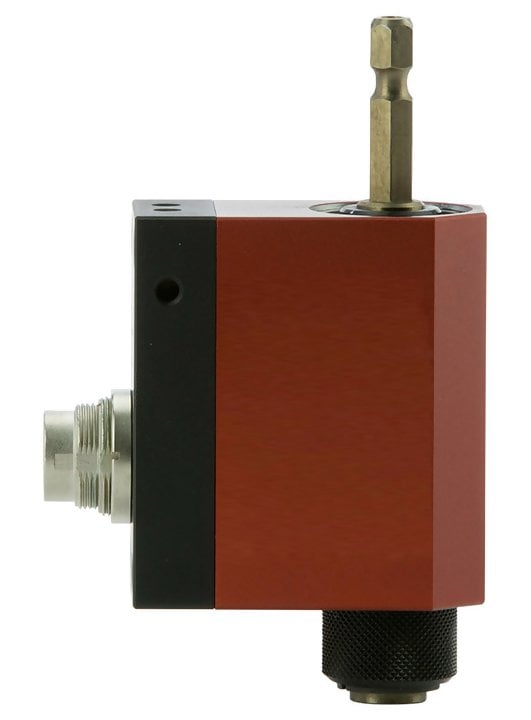

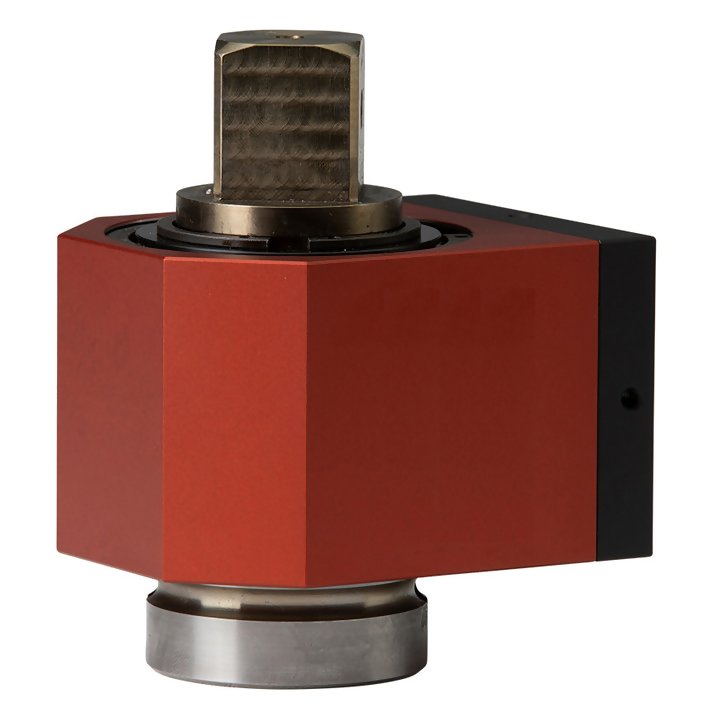

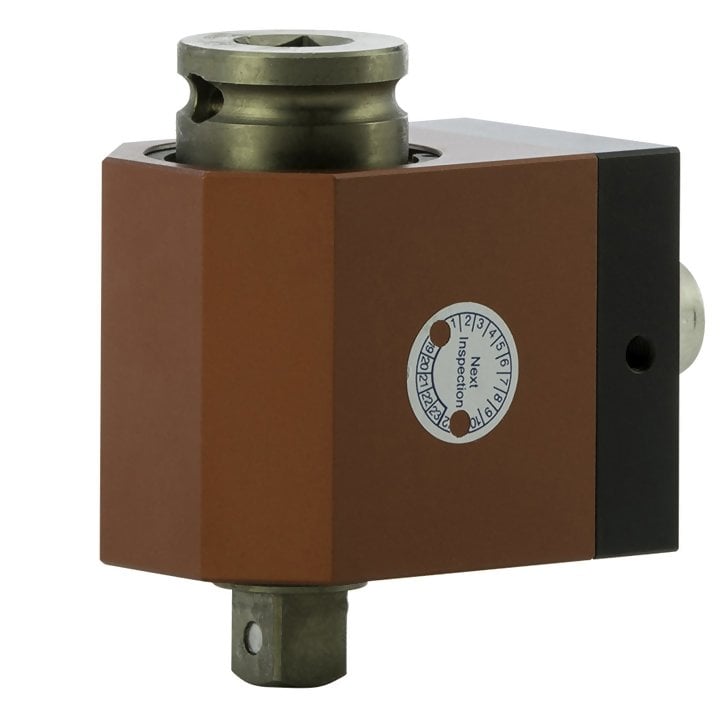

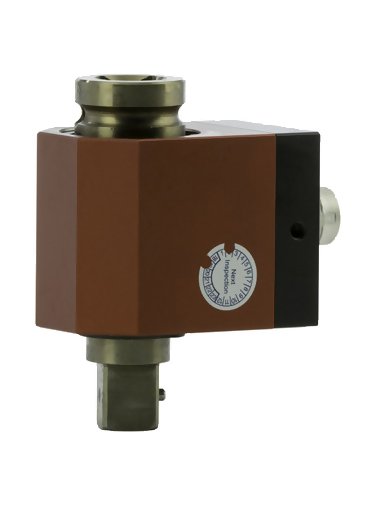

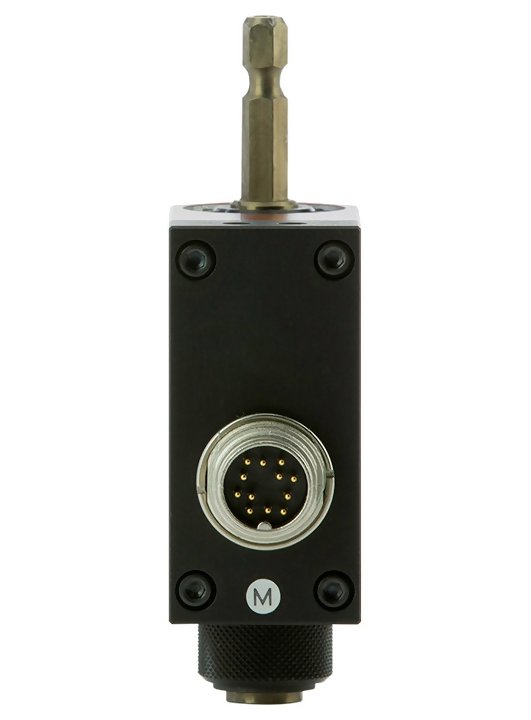

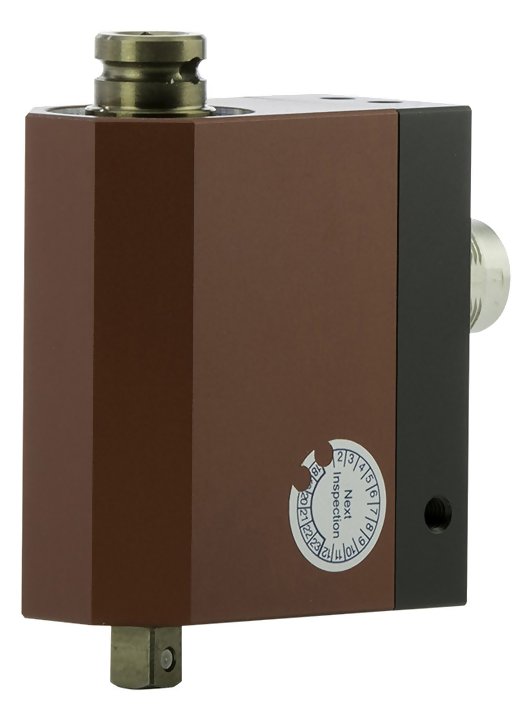

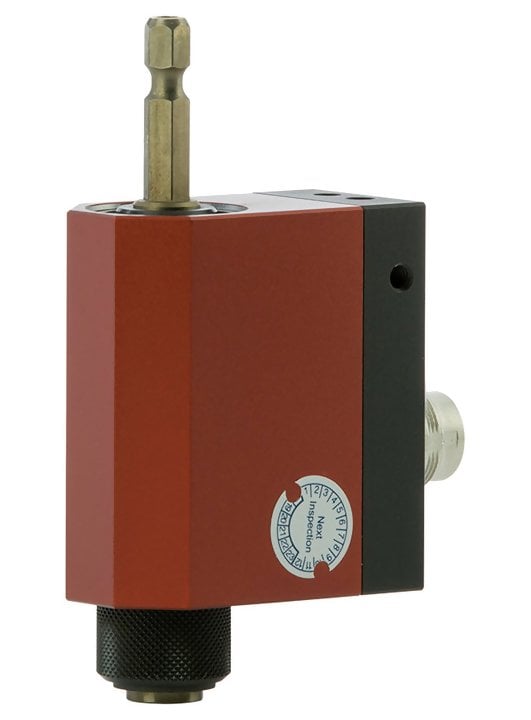

    Mountz RTSX-A Rotary Torque and Angle Transducer

    Various models that range from 1 Lb-in to 800 Lb-ft.

    For use with most power tools or rotational measurement applications.

    The Mountz RTSX-A rotary torque and angle transducer measures actual torque being applied from the driver to the fastener as well as the degrees of rotation.

    Features an instant auto-recognition system of the RTSX connected to the PTT & LTT.

    Not for use with impact wrenches


    line
    Features
    line

    • Accuracy ± .25% of full scale.
    • Angle Output: 2 channel quadrature, 360 pulses per rotation.
    • Ability to measure the rotation angle of a fastener. Joint rate and breakaway torque can be measured too.
    • Bi-directional.
    • For use with most power tools or rotational measurement applications.
    • Supplied with NIST-Traceable Certification of Calibration


    lineSpecificationsline

    Output at Rated Capacity> 6 Nm [53 lbf.in] rated torque 2 mV/V
    InterchanegeabilityMatched for mv/v and shunt calibration +0.3% FS
    Nonlinearity+0.2% FS
    Excitation Recommended10V DC or AC RMS
    Bridge Resistance350 ohms
    Usable Temperature Range41-122 degrees F
    Safe Overload125% of rated output


    line

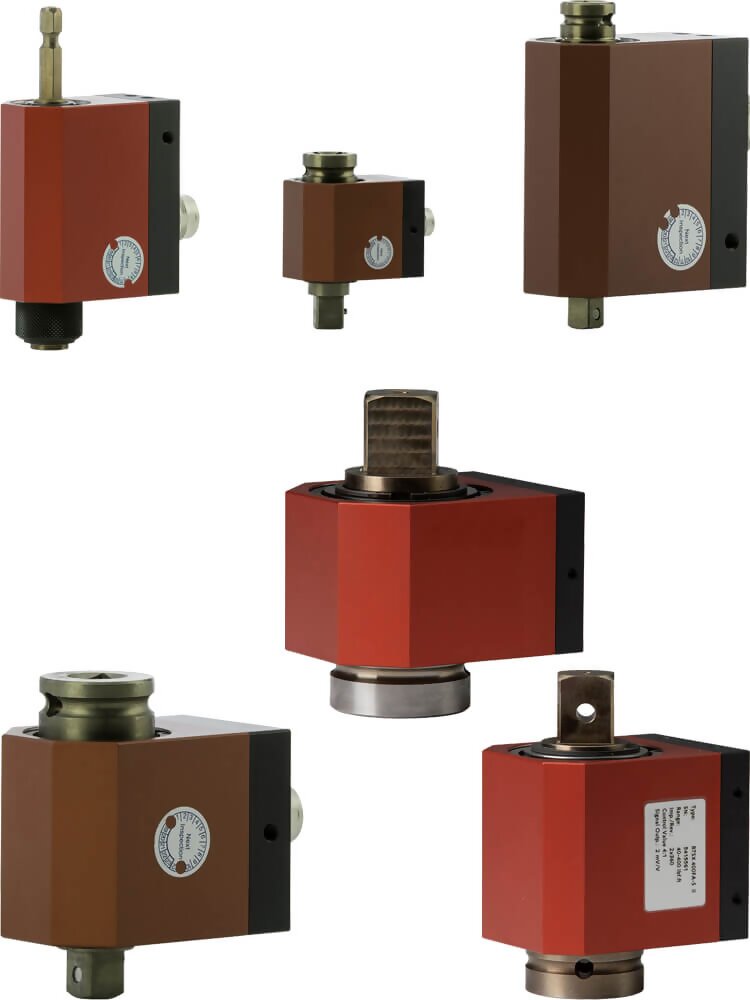

    Torque Ranges
    line

    ModelRangeInput DriveOutput Drive
    RTSX10i-HA 1 - 10 lbf-in 1/4" M/Hex1/4" F/Hex
    RTSX10i-A 1 - 10 lbf-in 1/4" F/Sq1/4" M/Sq
    RTSX50i-HA 5 - 50 lbf-in 1/4" M/Hex1/4" F/Hex
    RTSX50i-A 5 - 50 lbf-in 1/4" F/Sq1/4" M/Sq
    RTSX100i-HA 10 - 100 lbf-in 1/4" M/Hex1/4" F/Hex
    RTSX100i-A 10 - 100 lbf-in 1/4" F/Sq1/4" M/Sq
    RTSX200i-HA 20 - 200 lbf-in 1/4" M/Hex1/4" F/Hex
    RTSX200i-A 20 - 200 lbf-in 1/4" F/Sq1/4" M/Sq
    RTSX50F-A 5 - 50 lbf-ft 3/8" F/Sq3/8" M/Sq
    RTSX100F-A 10 - 100 lbf-ft 1/2" F/Sq1/2" M/Sq

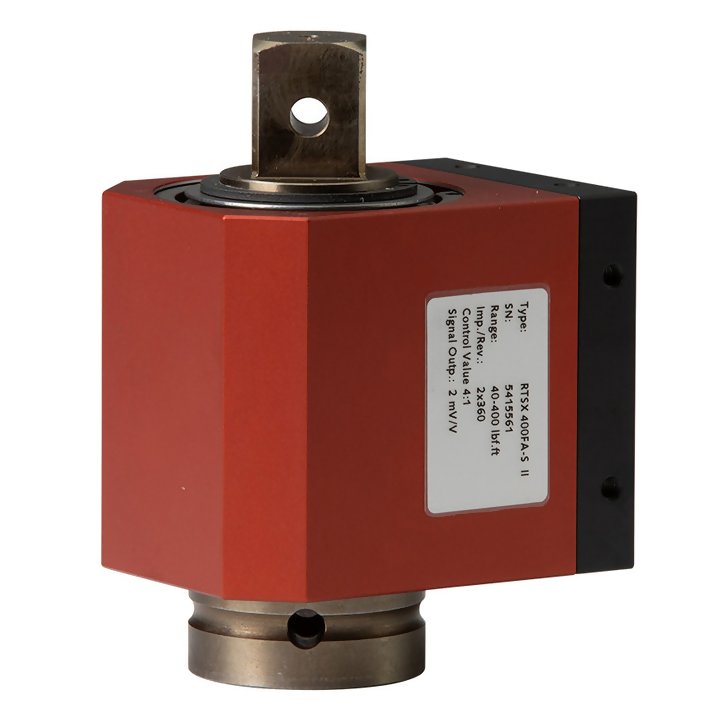

    RTSX400F-A 40 - 400 lbf-ft 3/4" F/Sq3/4" M/Sq
    RTSX800F-A 80 - 800 lbf-ft 1" F/Sq1" M/Sq

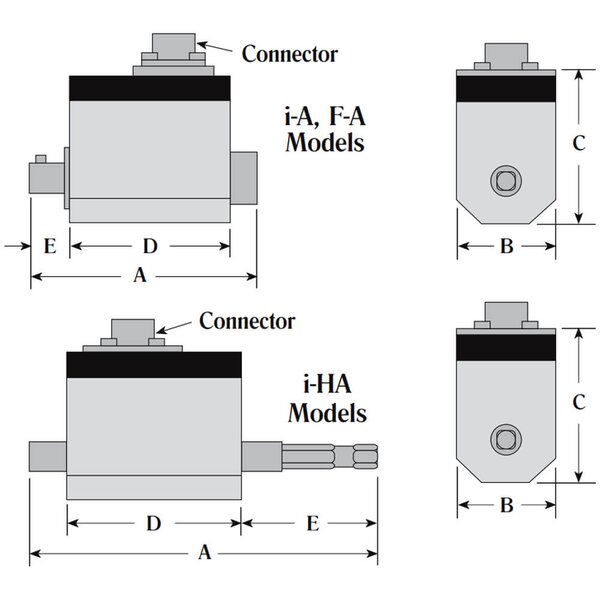

    lineDimensionsline

    ModelABCDE
    RTSX10i-HA101 mm28 mm52 mm58 mm28 mm
    RTSX10i-A75 mm28 mm52 mm58 mm8.5 mm
    RTSX50i-HA101 mm28 mm52 mm58 mm28 mm
    RTSX50i-A75 mm28 mm52 mm58 mm8.5 mm
    RTSX100i-HA101 mm28 mm52 mm58 mm28 mm
    RTSX100i-A75 mm28 mm52 mm58 mm8.5 mm
    RTSX200i-HA101 mm28 mm52 mm58 mm28 mm
    RTSX200i-A75 mm28 mm52 mm58 mm8.5 mm
    RTSX50F-A101 mm38 mm58 mm59 mm21.5 mm
    RTSX100F-A106 mm38 mm58 mm59 mm26 mm
    RTSX400F-A135 mm58 mm76 mm64 mm40 mm
    RTSX800F-A177 mm58 mm90 mm73 mm57.5 mm
