Mark-10 R51 Universal Torque Sensor

Description
Price: $ 707,75 up to $ 755.25
General torque testing
Interchangeable attachments
Capacities from 10 ozFin to 100 lbFin (7 to 1150 Ncm)
Bi-directional

A great solution for general bi-directional torque testing applications requiring different sample sizes. Three interchangeable chuck capacities and bit holder are available. The R51 has superb overload protection and is available in capacities from 10 ozin to 100 lbin.

line
Features
line

  • Compatible with the 5i and 3i digital indicators
  • Outstanding overload protection
  • NIST-traceable certificate of calibration included
  • Unique Plug & TestTM connector holds all calibration and configuration data

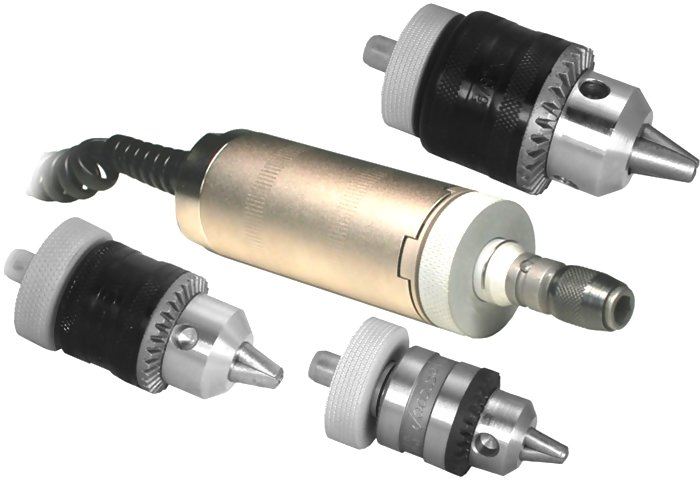

  • Interchangeable chucks (order separately)

line
Photo Gallery
line

ABQ ABQ ABQ ABQ ABQ

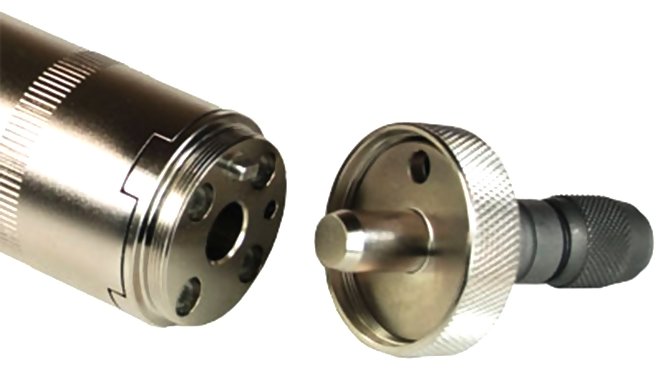

The Plug & TestTM connector locks into the receptacle in the indicator when fully inserted. Dual buttons on the indicator housing release the connector for easy removal. Gold plated spring contacts ensure long lasting and reliable connection

line
Force Ranges
line

Modeloz Finlb Finlb FftgF cmkgF mmN mmN cm
MR51-10Z10
0.005
--700
0.5
7
0.005
70
0.05
7
0.005
MR51-20Z20
0.01
--1400
1
14
0.01
140
0.1
14
0.01
MR51-50Z50
0.02
--3600
2
36
0.02
350
0.2
35
0.02
MR51-12-12
0.005
1
0.0005
-140
0.1
-135
0.1
MR51-50-50
0.02
4
0.002
-580
0.5
-570
0.5
MR51-100-100
0.05
8
0.005
-1150
0.5
-1150
0.5

N/A = Gauge is unable to display these units.

line
Specifications
line

Accuracy± 0.20% of full scale ±1 digit + indicator
Weight1.4 lbs (0.6 kg)
Warranty3 Years


line
Related Products
line

Series-3I
Advanced Force/Torque Indicator

  • Interchangeable force and torque sensors through Plug & Test™technology
  • USB data output
related

line

Series-5I
Advanced Force/Toruqe Indicator

  • Interchangeable force and torque sensors through Plug & Test™ technology
  • 1,000-point data memory with statistics (min, max, mean, standard deviation) and outputs
related

line
Downloads
line

ABQMark-10 R51 Universal Torque Sensor - Data Sheet
