Mark-10 MR05-500 Push/Pull Sensor Series 5, 500 lbs Capacity

See More Force Sensors

Mark-10 MR05-500 Push/Pull Sensor Series 5, 500 lbs Capacity

See More Force Sensors
Price:
$850.00
    warrenty

    Product Description
    Measures push and pull force
    500 lbs capacity

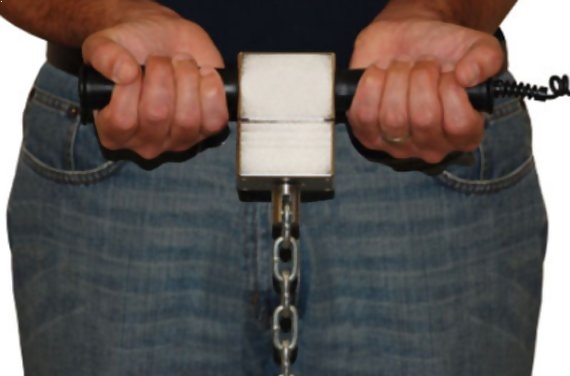

    Mark-10 R05 Push/Pull Sensor fully enclosed smart sensors are designed for pull / push measurements. Useful in ergonomics testing, workplace safety testing, and general lifting or tension / compression requirements. Threaded holes are supplied to accommodate various mounting configurations and attachments. For up to 500 lbF (2,500 N).


    line
    Features
    line

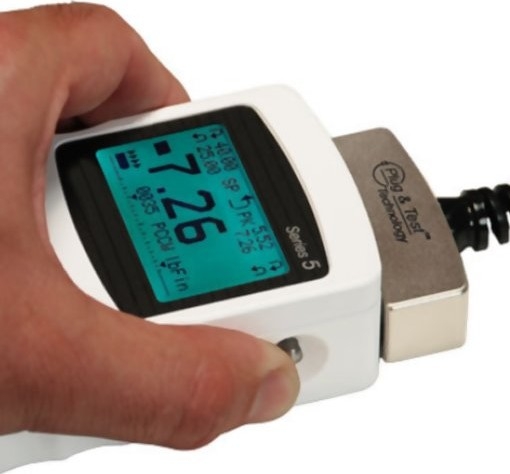

    • Compatible with the 5i and 3i digital indicators
    • Rugged aluminum housing
    • NIST-traceable certificate of calibration included

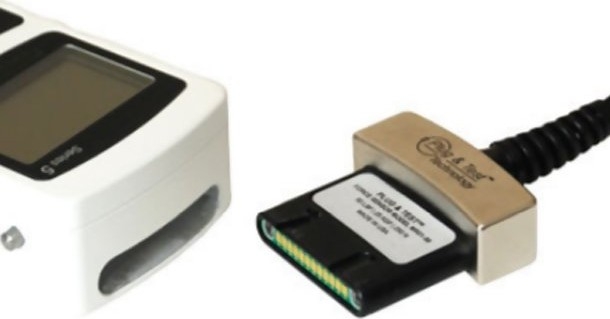

    • Unique Plug & TestTM connector holds all calibration and configuration data
    • Measures tensile and compressive forces
    • Warranty: 3 years


    line
    Specifications
    line

    Accuracy± 0.15% of full scale + indicator
    Weight0.015 lbs (0.007 kg)


    line
    Force Ranges
    line

    With Model 7i and 5i Indicators

    ModellbFozFkgFNkN
    MR05-500500 x 0.28000 x 5250 x 0.12500 x 12.5 x 0.001

    With Model 3i Indicator

    ModellbFkgFN
    MR05-500500 x 0.5250 x 0.22500 x 2


    line
    Related Products
    line

    Series-7i
    Professional Force and Torque Indicator

    • Continous data capture of up to 5,000 data points, at up to 14,000 Hz, downloadable to a PC
    related

    line

    Series-5i
    Advanced Force/Torque Indicator

    • 1,000-point data memory with statistics (min, max, mean, standard deviation) and outputs
    related

    line

    Series-3i
    Force and Torque Indicator

    • Interchangeable force and torque sensors through Plug & Test™technology
    • USB data output
    related


    line
    Downloads
    line

    ABQMark-10 R05 Push / Pull Sensor - Data Sheet
