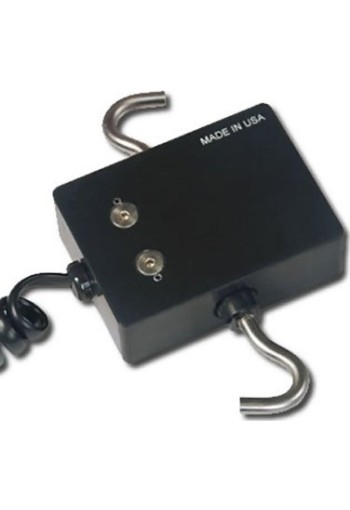

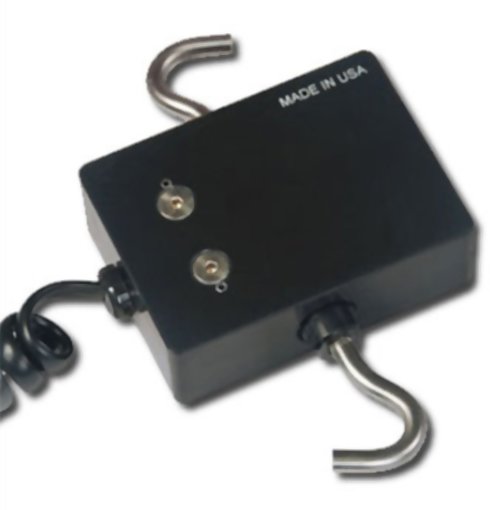

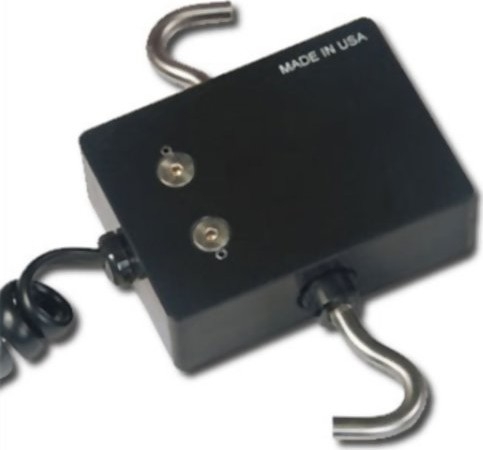

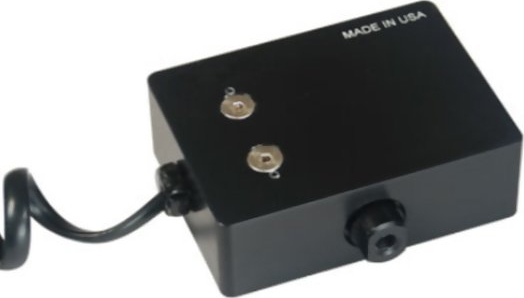

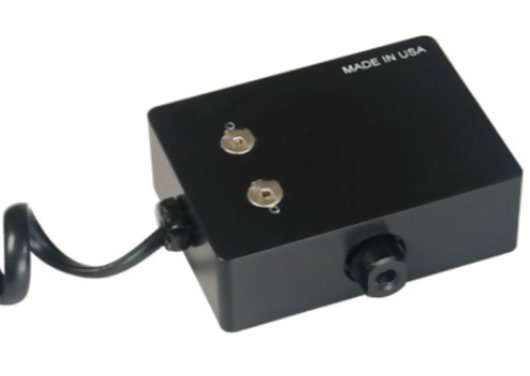

    Mark-10 Series R03 Tension and Compression Force Sensor
    8 Ranges up to 100 lbs

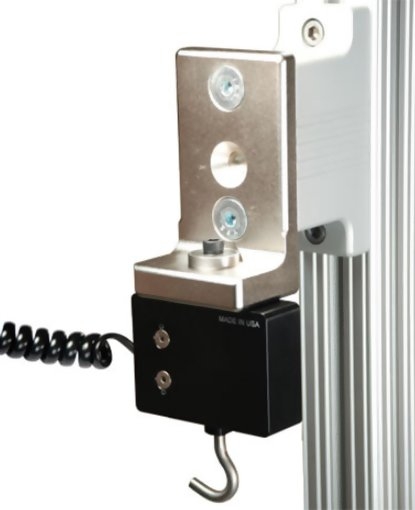

    Well suited for inline tests

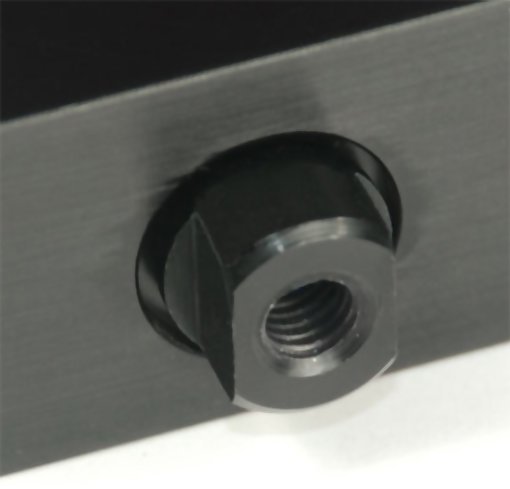

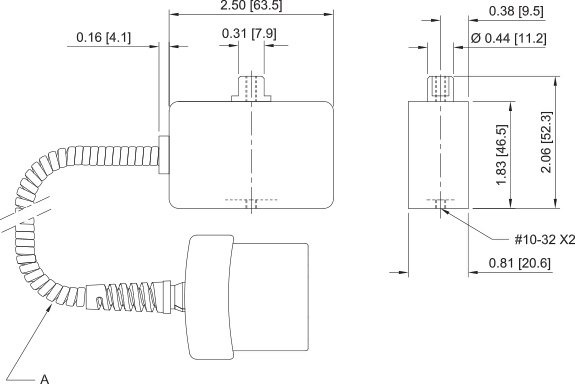

    The Mark-10 Series R03 smart sensors are designed for tension and compression measurement applications in virtually every industry. Threaded holes on two sides can accept a variety of hooks and implements, making this sensor particularly well suited for inline tests.

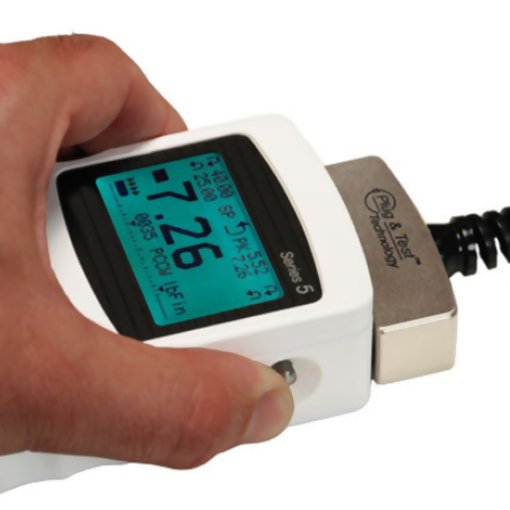

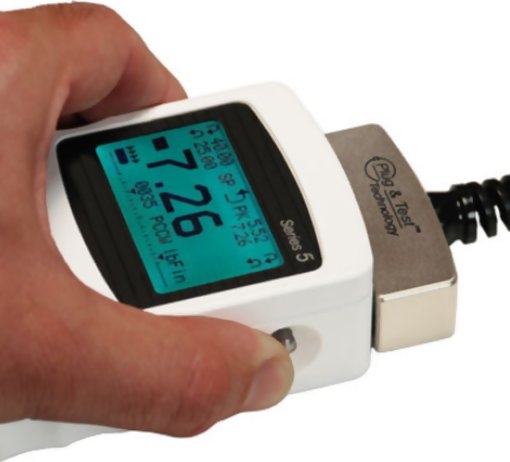

    Capacities available from 0.25 to 100 lbF [1 to 500 N]. Compatible with Mark-10 indicators (sold separately) through unique Plug & Test™ technology.


    line
    Features
    line

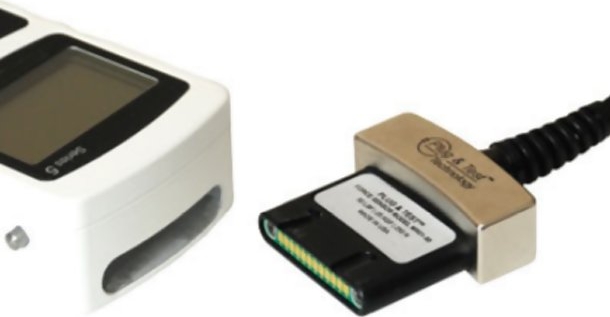

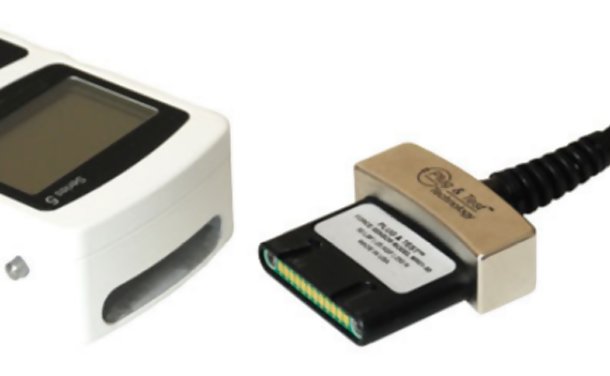

    • Member of the Plug & Test® family of interchangeable sensors and indicators
    • Rugged aluminum housing
    • Measures tensile and compressive forces
    • NIST-traceable certificate of calibration with data is included. If the sensor is ordered with an indicator, a certificate for the set (indicator + sensor) can be supplied upon request, at no additional charge.
    • Warranty: 3 years


    line
    Specifications
    line

    Accuracy± 0.15% of full scale ±1 digit + indicator
    Weight0.4 lbs (0.2 kg)


    line
    Force Ranges
    line

    With Models 7i and 5i Indicator

    ModellbFozFgFkgFNmN
    MR03-0250.25 x 0.00014 x 0.002100 x 0.051 x 0.00051000 x 0.5
    MR03-050.5 x 0.00028 x 0.005250 x 0.12.5 x 0.0012500 x 1
    MR03-22 x 0.00132 x 0.021000 x 0.51 x 0.000510 x 0.005
    MR03-55 x 0.00280 x 0.052500 x 12.5 x 0.00125 x 0.01
    MR03-1010 x 0.005160 x 0.15000 x 25 x 0.00250 x 0.02
    MR03-2020 x 0.01320 x 0.210000 x 510 x 0.005100 x 0.05
    MR03-5050 x 0.02800 x 0.525000 x 1025 x 0.01250 x 0.1
    MR03-100100 x 0.051600 x 150000 x 2050 x 0.02500 x 0.2

    With Model 3i Indicator

    ModellbFgFkgFN
    MR03-0250.25 x 0.0002100 x 0.11 x 0.001
    MR03-050.5 x 0.0005250 x 0.22.5 x 0.002
    MR03-22 x 0.0021 x 0.00110 x 0.01
    MR03-55 x 0.0052.5 x 0.00225 x 0.02
    MR03-1010 x 0.015 x 0.00550 x 0.05
    MR03-2020 x 0.0210 x 0.01100 x 0.1
    MR03-5050 x 0.0525 x 0.02250 x 0.2
    MR03-100100 x 0.150 x 0.05500 x 0.5
