PCWI 0917 Digital Pit, Crack and Corrosion Depth Gauge, 2.17" Blade, PITCRACKD55

See More Pit Depth Gauges

PCWI 0917 Digital Pit, Crack and Corrosion Depth Gauge, 2.17" Blade, PITCRACKD55

See More Pit Depth Gauges
Price:
$396.00
    warrenty

    Product Description

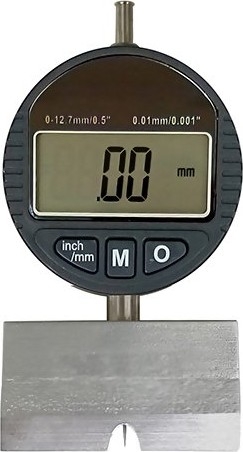

    0917 & 0923 Digital Pit, Crack and Corrosion Depth Gauges


    Digital Pit, Crack & Corrosion Depth Gauges / Pipe Pit Gauges

    The PCWI Pit Gauges digital metric/imperial pit depth gauge measures the depth of pits, cracks, scratches, corrosion and craters on the external, and in some case the internal, surfaces of steel structures, pipes and concrete.

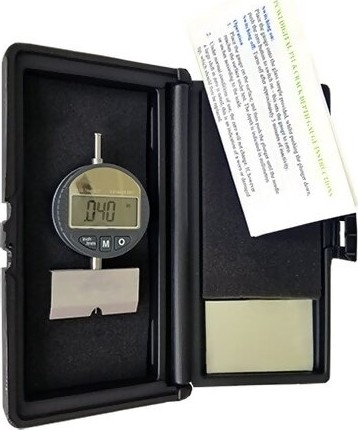

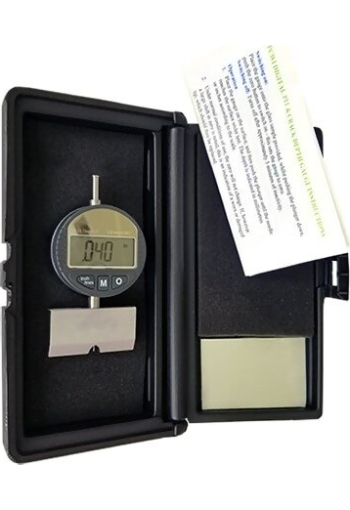

    The PCWI Pit & Crack Depth Gauge Kit includes gauge, carrying case, glass mirror sample, mini allen wrench, spare battery and instructions


    line
    Kit Contents
    line

    • PCWI 0917 / 0923 Digital Pit, Crack And Corrosion Depth Gauges
    • Glass mirror sample
    • Mini allen wrench
    • Spare battery
    • Instructions
    • Carrying Case


    line
    Features
    line

    • Enables quick assessment of surface condition.
    • The slender tip allows for the depth measurement of narrow cracks and corrosion.
    • This is an essential gauge for the corrosion industry, pipeline layers and coaters, enabling them to make quick assessments of the condition of pipework during rehabilitation.
    • The PCWI Pit & Crack Depth Gauges are available with a 55mm (2-3/16") or 125mm (5") wide blades, part numbers 0917 and 0923, respectively.
    • The extended 125mm wide blade enables measurement of heavily pitted work. The dial indicator can be repositioned to the end for easy measurement of corners.
    • Available with metric and imperial units.
    • We also have available a digital surface profile gauge

    The pit and crack depth gauge No. 0923 with 125mm (5") wide foot blade allows the dial indicator to be repositioned to the end for easy measurement of corners.


    line
    Specifications
    line

    Measuring Range0 - 12.7mm (0 - 0.5")
    Resolution0.01mm (0.0005")
    Blade (foot) widthn 0917 - 55mm (2-3/16")
    n 0923 - 125mm (5")
    Gauge face diameter55mm (2.165")
    Power1.55V silver oxide battery (SR44)
    Battery Life8 - 12 months
    Working Temperature0 to +40C (32 to 104F)
    Storage Temperature-10 to +60C (14 to 140F)
    Relative Humidity<80%
    Response speed350mm/sec


    line
    Downloads
    line

    PCWI Digital Pit Gauges Instruction Manual
