2 Exchangeable Knife Edge Bases
IP54 protection level for water spray, dust, etc.
Accuracy of +/- 0.001"

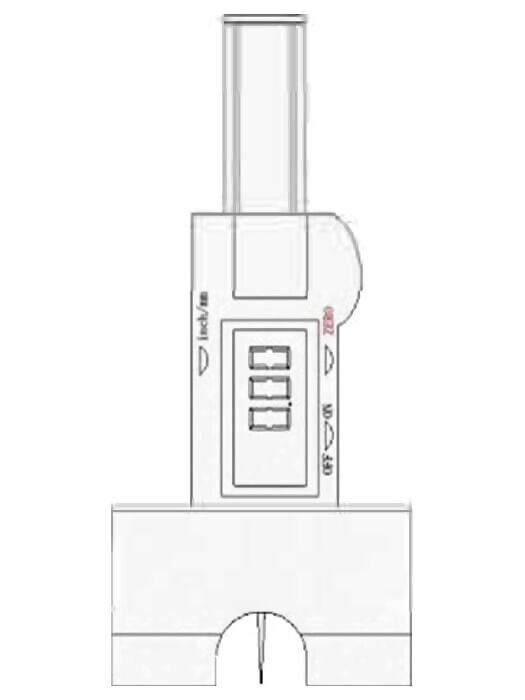

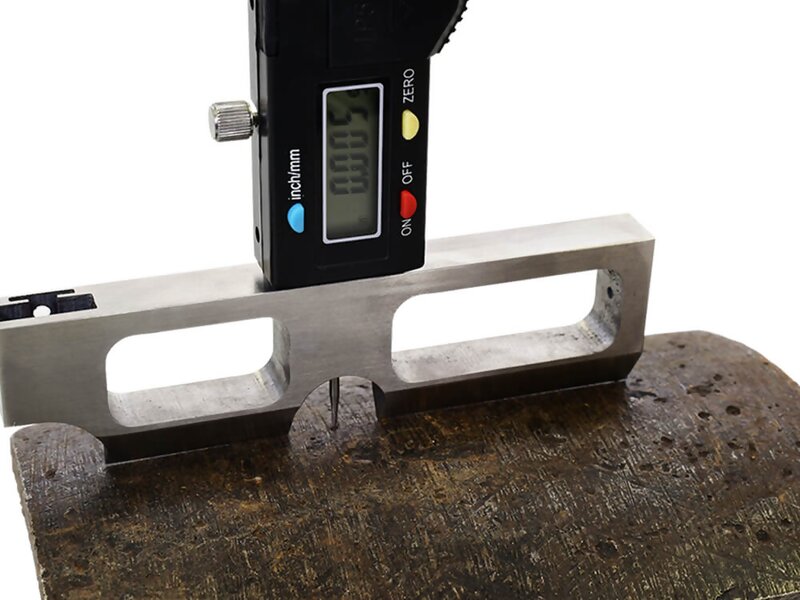

The NDT DPG-3 Enhanced Digital Pit Depth Gauge is the new and improved spring loaded digital pit gauge with two exchangeable knife edge bases: a standard 2 3/8" long base and a 4 7/8" long base with center and cantilever positions for versatility based on your needs. Simple to use, the NDT DPG-3 Enhanced Digital Pit Depth Gauge is water resistant and made of hardened stainless steel, producing accurate measurements of surface pits, gauges, dents, undercuts and more. Only 0.050" in diameter, the probe can access even the smallest pits.
Kit Contents
- Spring Loaded Digital Pit Gauge
- Standard 2 3/8" Long Base
- Two Position 4 7/8" Long Base
- Two Sets of Attachment Screws
- Hard Storage Case
Features

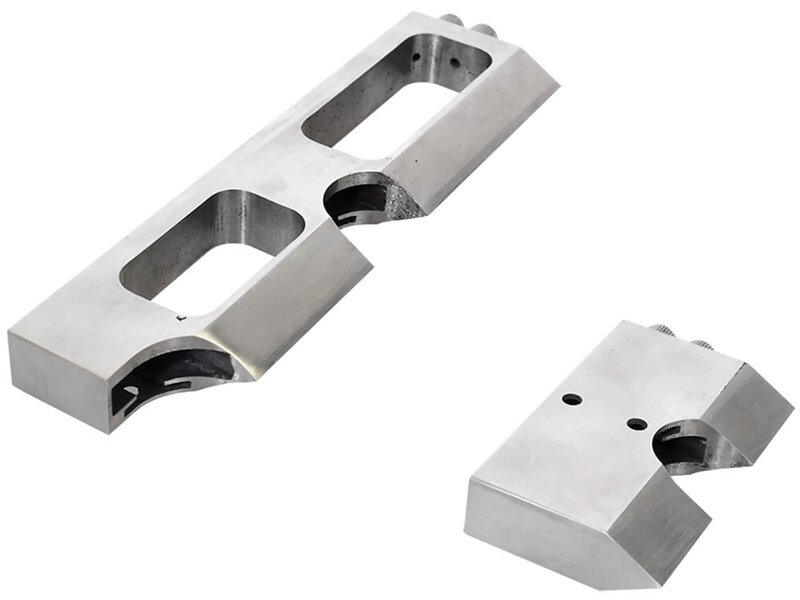

- 2 Exchangeable Knife Edge Bases: Standard 2 3/8" long base and a 4 7/8" long base with center and cantilever positions
- IP54 protection level for water spray, dust, etc.
- Accuracy of +/- 0.001"
- Can measure up to a 1.18" depth
- Made of hardened stainless steel
- Spring Loaded, 0.050" diameter probe
- Can zero at any position
- Button to switch between inches and mm
- 1 Year Limited Warranty
Specifications
| Resolution | 0.0004" (0.01 mm) |
| Range | 0-1.18" (0-30 mm) |
| Accuracy | 0.001" (0.03 mm) |
| Protection Level | IP54 |
Measuring Speed | ≤ 1.5 m/sec. |
Standard Knife Edge Base Size | 2 3/8" Long |
Two Position Knife Edge Base Size | 4 7/8" Long with Center and Cantilever Positions |
| Working Temperature | 0-40 °C |
| Working Relative Humidity | ≤ 80% |
| Storage Temperature | -10-60 °C |
| Power | One Button 1.55 V Battery |
