Call for price
    warranty 1 year
    Secure Transaction
    Product Description

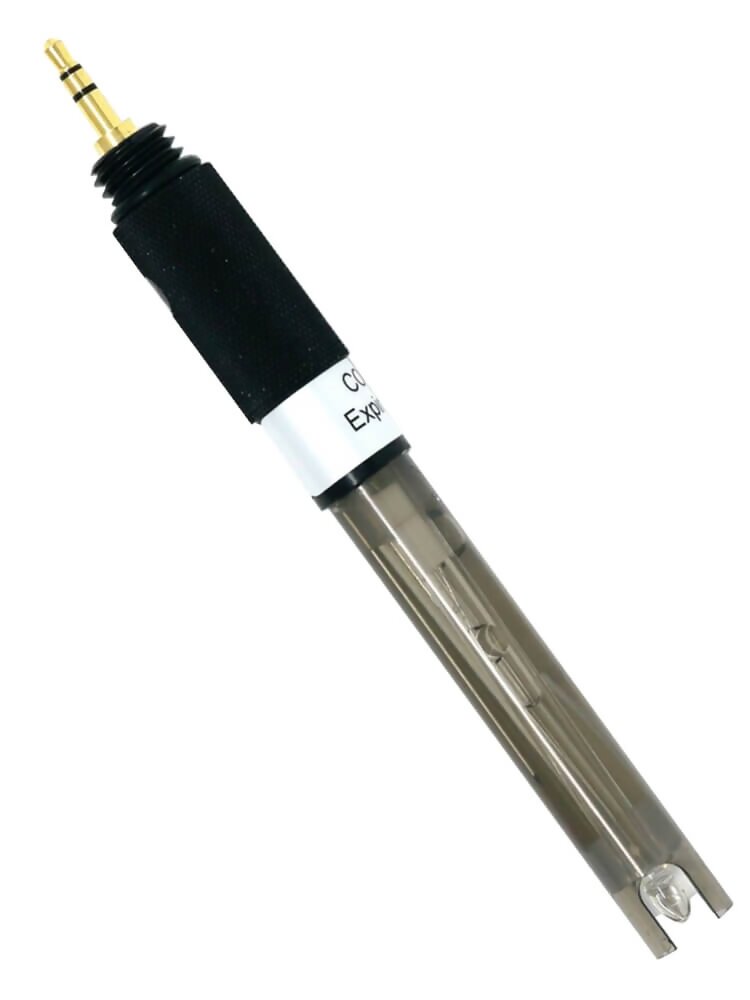

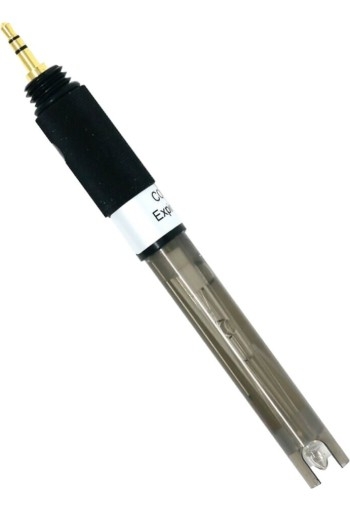

    NKE Aquaread ORP Oxidation Reduction Potential Electrode stands for Oxidation Reduction Potential – a measure in millivolts of the potential for oxidation or reduction chemical reactions to take place. Oxidation is the loss of electrons by an atom, molecule or ion. The process may or may not involve the addition of oxygen, which is where the term originated from.
    Reduction is the net gain of electrons by an atom, molecule or ion. Oxidation reactions always go hand in hand with reduction reactions. The electrons lost in oxidation must have a destination, and the electrons gained in reduction reactions must have come from a source. In an oxidation reduction reaction between iron and chlorine, iron is called a reductant or reducing agent because it reduces chlorine, whereas chlorine oxidises iron so is called an oxidant or oxidising agent.

    Aquaread's ORP testing equipment

    Related Product

    NKE Aquaread Combined pH / ORP Electrode


    One of the most common water quality measurements taken is pH. pH is a measure of how acid or alkaline water is, but this is actually determined by the amount of free hydrogen and hydroxyl ions in the water. Water that has more free hydrogen is acidic, and conversely water that has more free hydroxyl ions is alkaline. Aquaread’s pH probe combines a pH sensor and an ORP sensor. It is gel filled and a consumable part. It features a 3MPK1 silver chloride reference ORP electrode and has a life span of around 12 months with regular use.

    Click image for more info

    NKE Aquaprobe-7000 Water Monitoring Probe


    The NKE Aquaprobe-7000 Water Monitoring Probe is designed for long term deployment utilising a central cleaning system to keep the fitted sensors clean reducing the effects of bio-fouling common in extended deployments. The probe comes with all of our standard parameters including optical dissolved oxygen, it also features 6 user configurable auxiliary sockets allowing you to add multiple specialist sensors to the probe. The NKE Aquaprobe-7000 Water Monitoring Probe is capable of measuring up to 17 individual parameters at once.

    Click image for more info

    NKE Aquaprobe-5000 Water Monitoring Probe


    The NKE Aquaprobe-5000 Water Monitoring Probe is the largest of our advanced portable multiparameter water monitoring probes. It comes with a range of standard sensors included, and much like its smaller counterpart it offers more customization options that allow you to add extra sensors to the probe. All of our probes are constructed from tough marine-grade aluminum that has been hard anodized, making it suitable for use in both fresh and salt waters.

    Click image for more info

    NKE Aquaprobe-2000 Water Monitoring Probe


    The NKE Aquaprobe-2000 Water Monitoring Probe is the smaller of our advanced portable multiparameter water monitoring probes. It comes with a range of standard sensors included; it also offers some customization options that allow you to add even more sensors to the probe. All of our probes are constructed from tough marine-grade aluminum that has been hard anodized, making it suitable for use in both fresh and salt waters

    Click image for more info

    F.A.Q.

    How to use an ORP meter

    ORP meters have an ORP electrode and a reference electrode. The ORP electrode is designed to either give up electrons to an oxidant or accept electrons from a reductant. These chemical reactions will continue until the electrode develops a potential, caused by the build up in charge, which is equal to the ORP of the solution. The reference electrode is encased in a stable gel. The measurement is referenced from the voltage of each electrode.

    When the ORP probe is placed in the water sample the measurement of water oxidation reduction potential will be recorded by the Aqualogger or Aquameter being used, in conjunction with the Aquaprobe. The ORP water testing measurements are particularly useful when considered in collaboration with the other measurements that our multiparameter water quality testing equipment provide. It is vital to follow the instructions for usage in the manual for your ORP sensor to ensure that you maintain the meter properly and prevent damage.

    When to use Aquaread's ORP meter

    ORP water testing measurements can be taken in the field to directly measure bodies of water. The pH and temperature of the water has an effect of the ORP measurement, so ORP should not be used as a direct indicator of the concentration of the oxidiser. ORP data can be collected over time to identify patterns or the normal range of ORP for this water body. By understanding the normal levels it is easier to identify when there has been an alteration that could affect the aquatic ecosystem.

    ORP water testing equipment can also be used to measure the effectiveness of swimming pool sanitiser. Chlorine is an oxidiser, and helps to clean water by killing unwanted organisms through altering their chemical makeup. Continual or regular monitoring with ORP water testing equipment will ensure the correct levels of water cleanliness is maintained.

    ORP monitoring is additionally used in the waste water treatment process, and can measure the performance of the treatment plant. The higher the ORP at the end of the process the cleaner the water. Monitoring the ORP at different stages of the treatment process can also help the operators to gain a more thorough understanding of the process' performance in detail.
