NDT DPG-2 Digital Pit Gauge with case, Range: 1.25 in / 30mm

See More Pit Depth Gauges

NDT DPG-2 Digital Pit Gauge with case, Range: 1.25 in / 30mm

See More Pit Depth Gauges
Price:
$154.00
    warrenty

    Product Description
    MM/IN - Switch between mm and inch measurements
    ON/OFF - Now just move the slide to turn unit On/Auto/Off
    IP54 protection level for water spray, dust, etc.

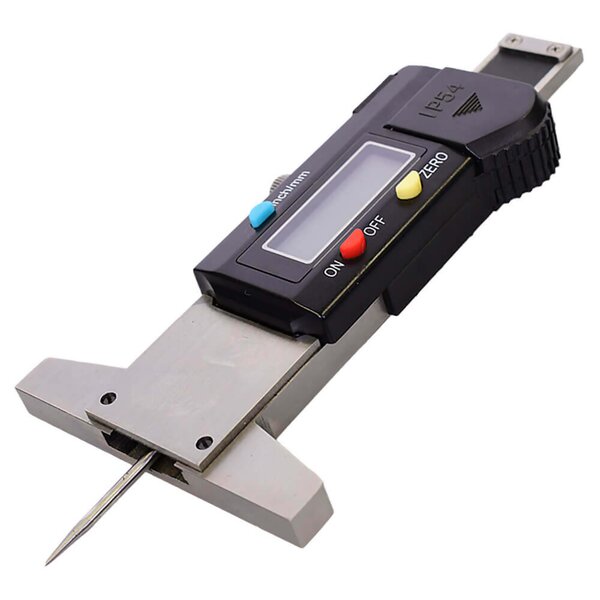

    The NDT DPG-2 Digital Pit Gauge with IP54, designed based on digital vernier caliper with direct reading, is easy to use and provides fast and accurate measurements of surface pits, gauges, dents, undercuts, etc.

    The NDT DPG-2 Digital Pit Gauge is made of hardened stainless steel, and its 0.2' (0.5mm) probe diameter will access even the smallest pits. A data output interface makes it possible to connect with a PC or data logger for collecting and analyzing measurements.

  • The DPG-2 is a unique Pit Gauge, based on a Direct Reading Digital Vernier Caliper.
  • The DPG-2 is easy-to-use and provides fast and accurate measurements of surface pits, gauges, dents, undercut, etc.
  • The DPG-2 is made in hardened stainless steel and its 0.050" (1.2 mm) diameter probe, will access even the smallest pits.
    • Waterproof Seal


    line
    Kit Contents
    line

    • NDT DPG-2 Digital Pit Gauge
    • IP54 protective module for protection from water-spray, dusts and oil.

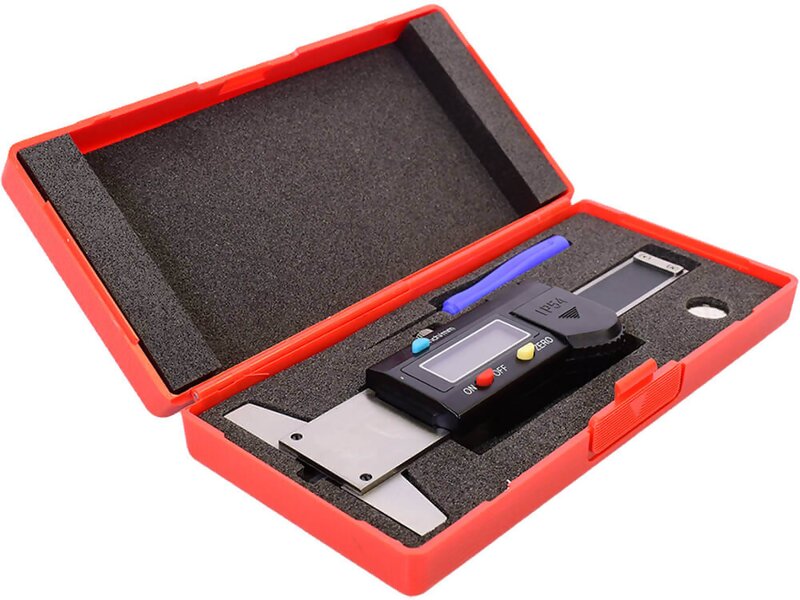

    • Hard Storage Case


    line
    Features
    line

    • MM/IN - Switch between mm and inch measurements
    • ON/OFF - Now just move the slide to turn unit On/Auto/Off.
    • ZERO - Set "0" at any position
    • IP54 protection level for water spray, dust, etc.
    • Accuracy of +/- 0.001"
    • Can measure up to a 1.18" depth
    • Made of hardened stainless steel
    • 0.050" diameter probe


    line
    Specifications
    line

    Range1.25 in | 30mm
    Resolution0.0004 in | 0.01mm
    Permissible Error+/- 0.001 in | +/- 0.03mm
    Measuring Speed≤ 1.5 m/sec.
    Working Temperature0-40 °C
    Working Relative Humidity≤ 80%
    Storage Temperature-10-60 °C
    PowerOne Button Battery 1.55 V, LR44 / A76
    Warranty1-year


    line
    Downloads
    line

    NDT DPG-2 Digital Pit Gauge - Data Sheet
    NDT DPG-2 Digital Pit Gauge - Instruction Manual
