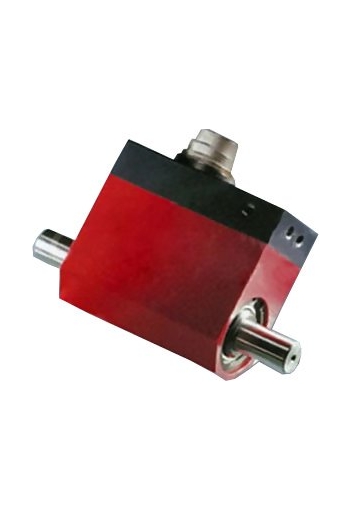

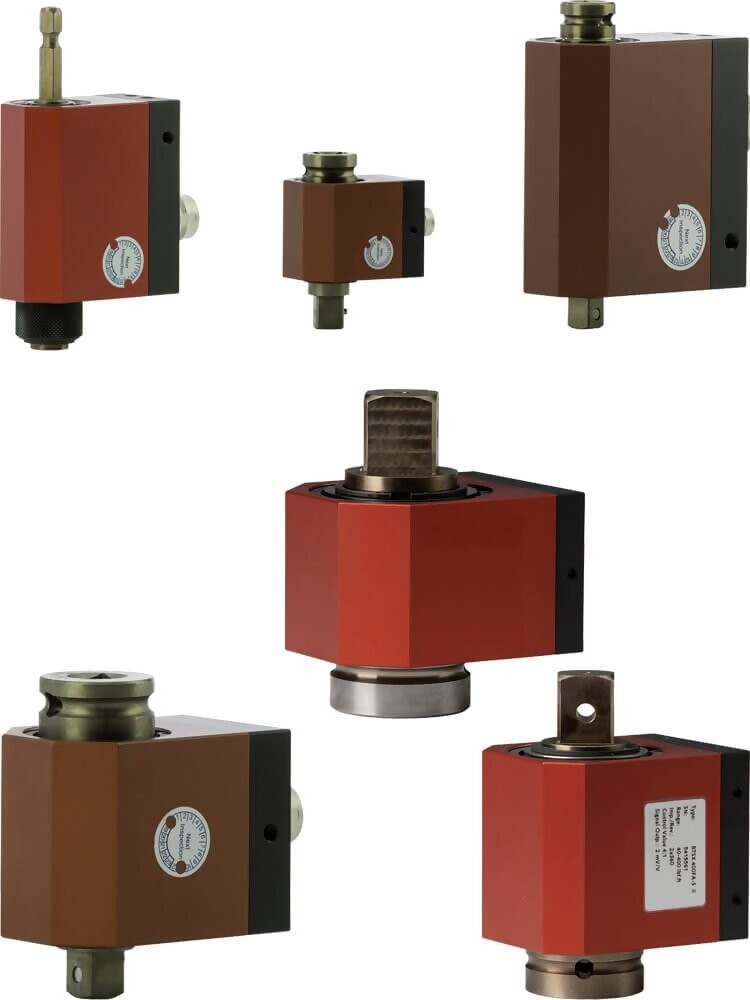

Mountz BLRTSX-R Brushless Rotary Torque & Angle Shaft Transducer
Various models that range from 25 ozf-in to 738 lbf-ft/ 18 cN-m to 1000 N-m
For use with most power tools, pulse tools, high RPM tools or rotational measurement applications.
The Mountz BLRTSX-R Brushless Rotary Torque & Angle Shaft Transducer is used in-line with rotating shafts or nutrunners for feed back control. Motor testings, high RPM Tools or rotational measurement applications. RA Models: - Angle output 2-channel quadrature
- 360 pulses per rotation
- Ability to measure the rotation angle of a fastener
- Joint rate & breakaway torque can be measured too
Features
- Accuracy +/- 0.2% of full scale
- Non-contact signal transfer and maintenance free
- The brushless rotary torque & angle sensor is a compact design & bi-directional
Torque Ranges
| Model | Range | | BLRTSX140z-R | 25 - 140 ozf.in | | BLRTSX140z-RA | 25 - 140 ozf.in | | BLRTSX18i-R | 2 - 18 lbf.in | | BLRTSX18i-RA | 2 - 18 lbf.in | | BLRTSX44i-R | 4 - 44 lbf.in | | BLRTSX44i-RA | 4 - 44 lbf.in | | BLRTSX89i-R | 10 - 89 lbf.in | | BLRTSX89i-RA | 10 - 89 lbf.in | | BLRTSX177i-R | 18 - 177 lbf.in | | BLRTSX177i-RA | 18 - 177 lbf.in | | BLRTSX36F-R | 4 - 36 lbf.ft | | BLRTSX36F-RA | 4 - 36 lbf.ft | | BLRTSX73F-RA | 8 - 73 lbf.ft | | BLRTSX148F-RA | 15 - 148 lbf.ft | | BLRTSX368F-RA | 37 - 368 lbf.ft | | BLRTSX738F-RA | 74 - 738lbf.ft | Alternative Unit Calculator- recasts values in above table (units in RED can be selected on gauge. Other units for reference only)
Specifications
| Accuracy | ± 0.2% of full scale | | Rated Output | ± 5VDC ± 0.2% FS | | Excitation Recommended | 11VDC to 26VDC (pole secure) | | Nonlinearity | 0.2% FS | | Usable Temperature Range | 41 to 122 F | | Mating Connector | Tuchel Series 581 (98-2030-09-12) | | Safe Overload | 150% of Rated Output |
