Wireless Ambient Temperature and Humidity Sensor
For use with Trems Tramex Remote Environmental Monitoring System

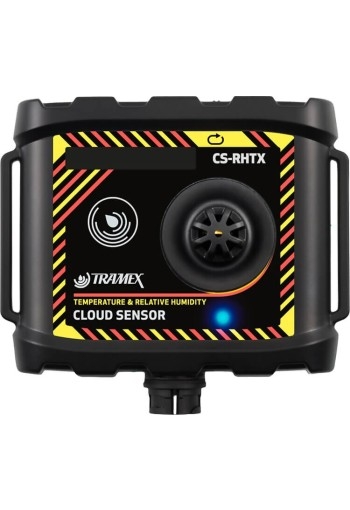

The Tramex CS-RHTX Ambient and Probe Cloud Sensors is on-site Cloud Sensors, with long-life batteries, transmit ambient and in in-situ relative humidity, temperature (ºC and ºF), dew point and grains per pound / grams per kilo readings wirelessly via the Tramex Cloud Station enabling remote monitoring of up to 200 on-site Sensors on the Tramex Cloud platform.
Tramex CS-RHTX Ambient and Probe Cloud Sensors are compatible with the range of Tramex relative humidity probes, the Tramex TREMS-WME/MC pin probes, and the CTP-WME contact temperature probe.
Sensors can be easily registered by scanning the QR code on the back of the instrument and clicking ‘register’ in your Cloud account.
Kit Contents

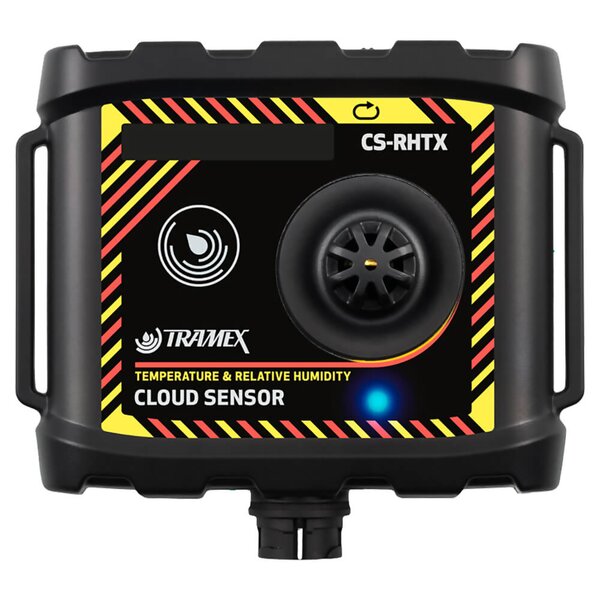

- Tramex CS-RHTX Ambient & Probe Cloud Sensor
Features
- Use with Trems Tramex Remote Environmental Monitoring System
Specifications
Temperature Sensor Specifications
| Exceptional Accuracy | ±0.1 °C Range 20°C to 60°C (±0.1°F Range 68°F to 140°F) |
| Range | -40°C to 125°C (-40°F to 257°F) |
| Sensor Protection | PTFE Film protects sensor opening from water & dust |
| Drift | <0.03°C (0.04°F) per year |
Relative Humidity Sensor Specifications:
| Exceptional Accuracy | ±1.5%RH Range 0% to 80%RH, ±2.0%RH Range 80% to 99%RH (@ 25°C (77°F)) |
| Range | 0 to 100%RH |
| Resolution | 0.1% over the complete range |
| Drift | <0.25%RH per year |
Specifications
| Transmission Range | Over 3kms line-of-sight |
| Communication Frequency | Multiple readings per hour. |
| Identification | Items individually coded for ease of install and logging identification. |
| Size | 100mm x 90mm x35mm (3.94" x 3.54" x 1.38") |
| Weight | 100g (3.53oz) |
| Construction | ABS enclosure |
| Power | Built in long-life CR123A battery |
| Included | Wall Mounting |
Related Products
Tramex TREMS-WME-MC Remote Environmental Monitoring System
- Allows for Moisture Content (%MC) monitoring in wood and Wood Moisture Equivalent (WME) monitoring in a variety of building materials such as wood-based products, drywall or plasterboard.
- Additionally, the system enables ambient temperature and relative humidity monitoring to ensure optimal environmental conditions
