Wireless Ambient Temperature and Humidity Sensor
Use With TREMS Tramex Remote Environmental Monitoring System

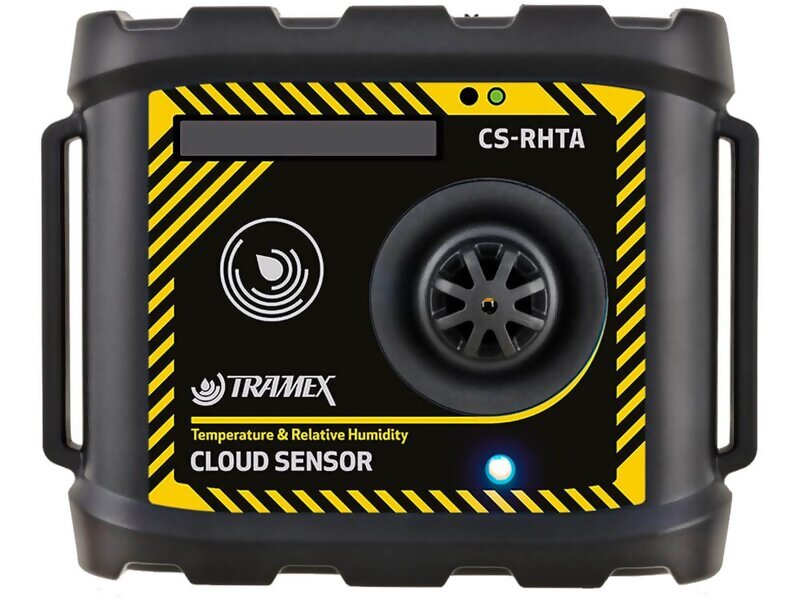

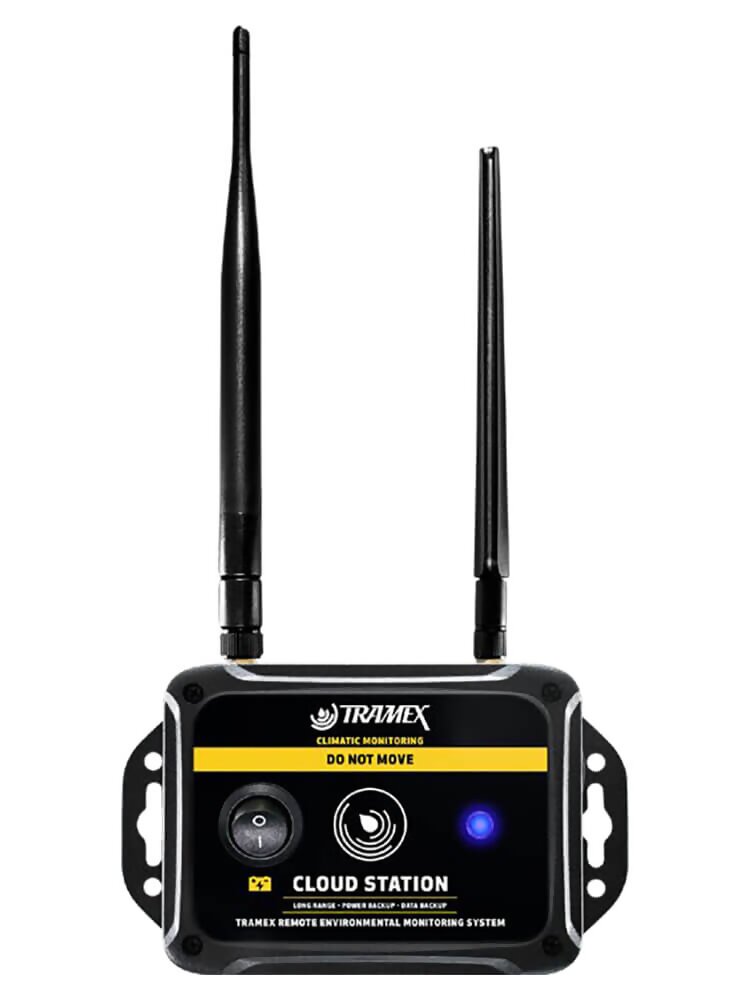

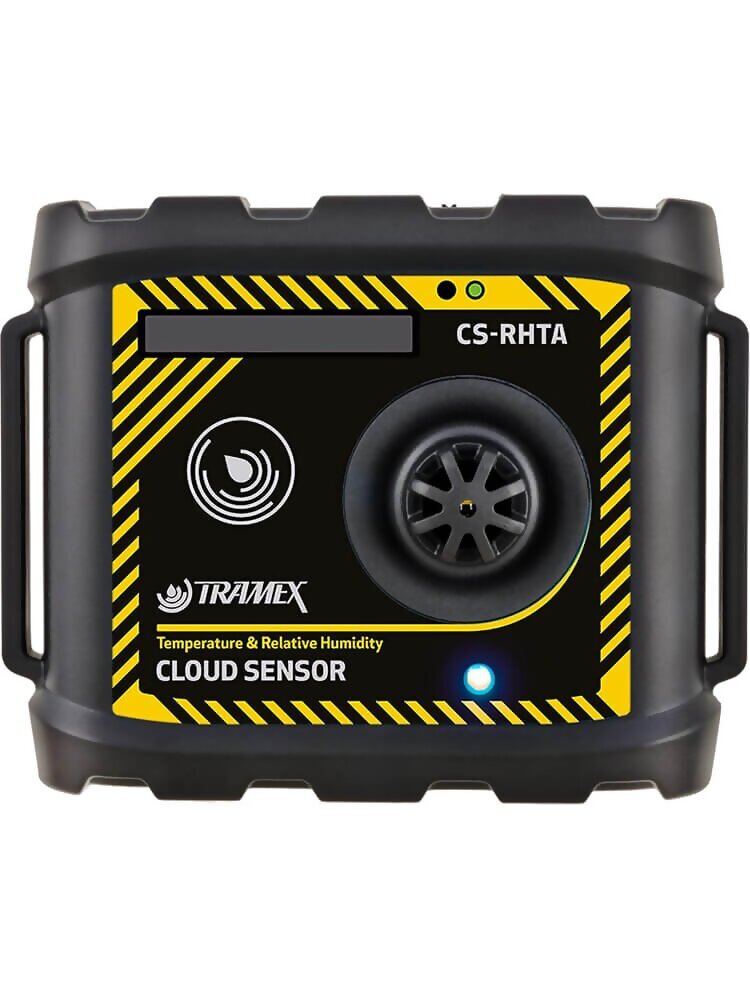

The Tramex CS-RHTA Cloud Sensors Ambient is on-site Cloud Sensors, with long-life batteries, transmit ambient relative humidity, temperature (ºC and ºF), dew point and grains per pound / grams per kilo readings wirelessly via the Tramex Cloud Station enabling remote monitoring of up to 200 on-site Sensors on the Tramex Cloud platform.
Tramex CS-RHTA Cloud Sensors Ambient are compatible with the CTP contact temperature probe.
Sensors can be easily registered by scanning the QR code on the back of the instrument and clicking ‘register’ in your Cloud account.
Kit Contents
- Tramex CS-RHTA Cloud Sensors Ambient
Features
- Use With TREMS Tramex Remote Environmental Monitoring System
Specifications
Temperature Sensor Specifications
| Exeptional Accuracy | ±0.1 °C Range 20°C to 60°C (±0.1ºF Range 68ºF to 140ºF) |
| Range | -40ºC to 125ºC (-40ºF to 257ºF) |
| Sensor Protection | PTFE Film protects sensor opening from water & dust |
| Drift | < 0.03ºC (0.04ºF) per year |
Relative Humidity Sensor Specifications
| Exceptional Accuracy | ±1.5%RH Range 0% to 80%RH, ±2.0%RH Range 80% to 99%RH (@ 25ºC (77ºF)) |
| Range | 0 to 100%RH |
| Resolution | 0.1% over the complete range |
| Drift | < 0.25%RH per year |
Sensor Specifications
| Transmission Range | Over 3kms line-of-sight |
| Communication Frequency | Multiple readings per hour. |
| Identification | Items individually coded for ease of install and logging identification. |
| Size | 100mm x 90mm x35mm (3.94” x 3.54” x 1.38”) |
| Weight | 100g (3.53oz) |
| Construction | ABS enclosure |
| Power | Built in CR123A battery with up to 15 year lifespan |
| Included | Wall Mounting |
Related Products

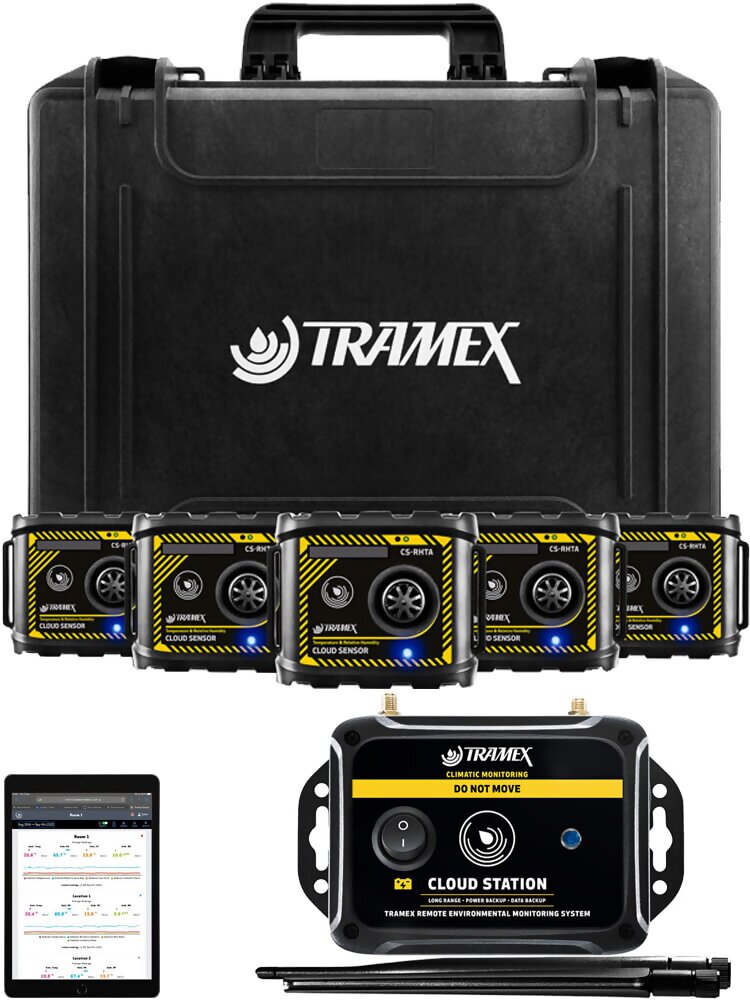

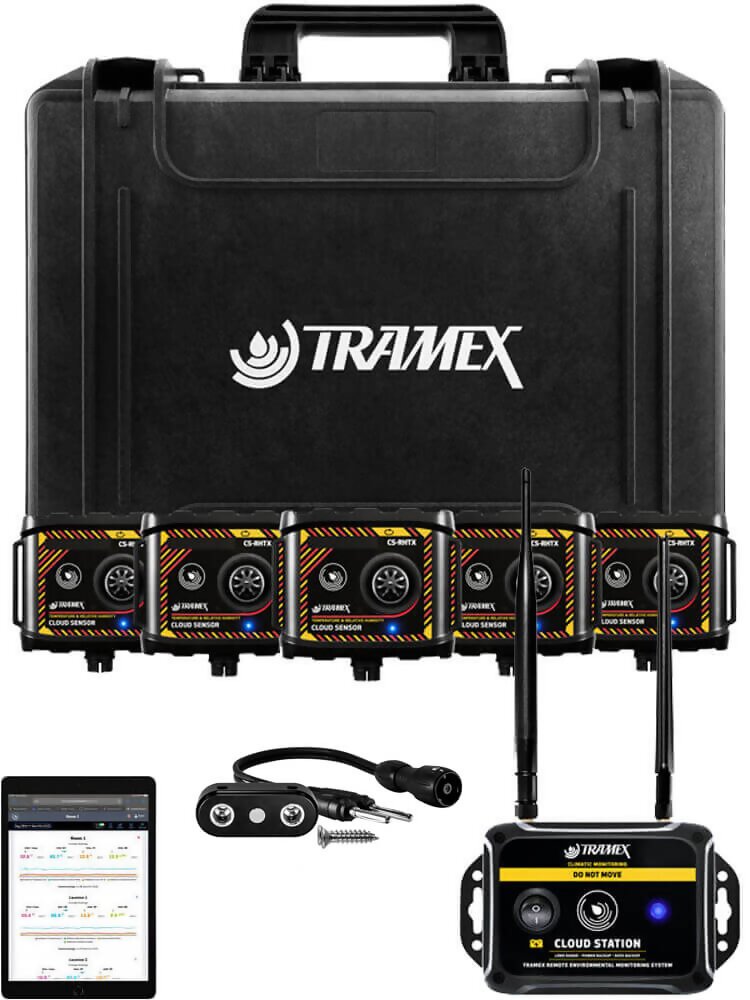

Tramex TREMS-WME-MC Remote Environmental Monitoring System
- Allows for Moisture Content (%MC) monitoring in wood and Wood Moisture Equivalent (WME) monitoring in a variety of building materials such as wood-based products, drywall or plasterboard.
- Additionally, the system enables ambient temperature and relative humidity monitoring to ensure optimal environmental conditions
