This product has been replaced by the Mark-10 TT03
The TORQ-T has been replaced by the new and improved TT03.
Digital Torque Tester for Hand Tools
3 ranges up to 100 lb-in
Units of measure: lbf-in, kgf-cm, and N-cm (selectable)
RS-232 and Mitutoyo (Digimatic) outputs

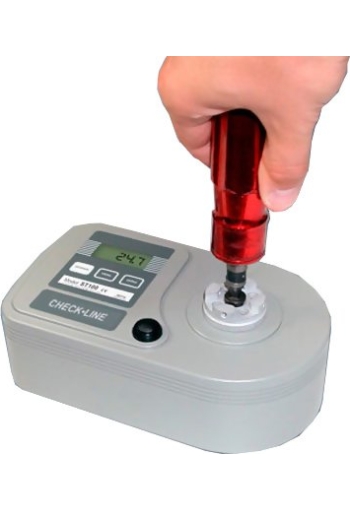

The new TORQ-T Digital Torque Tool Testers present a simple yet accurate solution for testing torque screwdrivers, wrenches, and non-motorized torque tools. Applications exist in manufacturing facilities in virtually every industry. The TORQ-T features a solid aluminum housing, making it rugged enough for many years of service in production or laboratory use, while a universal receptacle with square drive and grooves accepts common bits and attachments. The TORQ-T captures peak torque in both clockwise and counterclockwise directions. Note: The TORQ-QC cannot be used with motorized tools (electric, air tools, impact wrenches, etc...)
Photo Gallery
Features
- Selectable units of measurement
- Peak memory for clockwise and counterclockwise readings
- Solid aluminum housing
- Battery or AC operation (AC Adapter included)
- Mounting holes for bench mounting
- CE Certified
- Includes NIST Calibration Certificate
Force Ranges
| Model | Capacity | Resolution | | TORQ-T-12 | 12 lb-in
140 kg-mm
135 N-cm | 0.01 lb-in
0.1 kg-mm
0.1 N-cm | | TORQ-T-50 | 50 lb-in
580 kg-mm
570 N-cm | 0.05 lb-in
0.5 kg-mm
0.5 N-cm | | TORQ-T-100 | 100 lb-in
1150 kg-mm
1150 N-cm | 0.1 lb-in
1 kg-mm
1 N-cm |

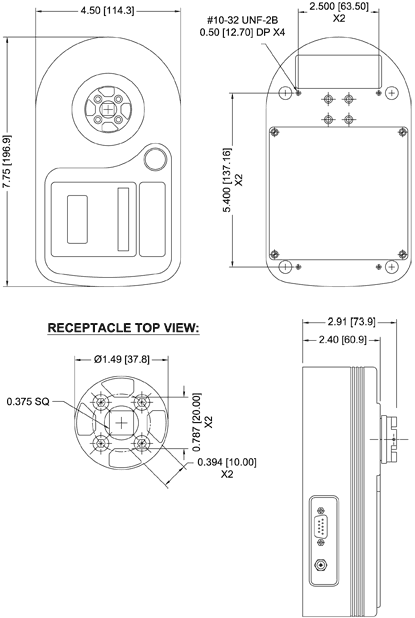

Dimensions
Specifications
| Accuracy | ± 0.5% of full scale, ±1 least significant digit | | Max Sample Diameter | 7.5" (189.4 mm) | | Sampling Rate | 65 readings per second | | Display | 4 1/2 digit LCD with .3" high characters. Indicators for low battery, units and mode of operation | | Power | Non-rechargeable 9V battery or AC operation with included adapter | | Battery Life | 30 hours of continuous use, LO BAT indicator | | Overload Protection | 150% or higher | | Weight | 4.8 lbs (2.2 kg) | | Warranty | 3 years | | Calibration Certificate | Included |
|
|
