This product has been replaced by the Mark-10 ES20

---

Designed for compression and tensile testing of small samples

---

It precisely measures push pull forces as low as 0.0001 lb with an accuracy of ± 0.5% full scale ±1 digit

---

Includes Gauge and Test Stand

---

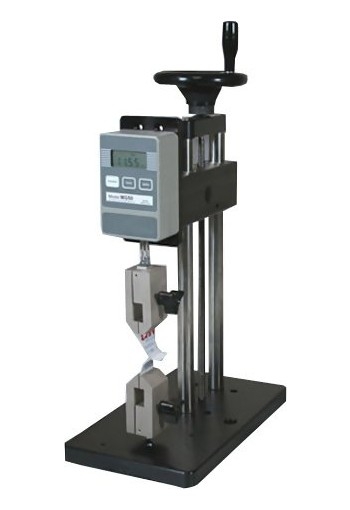

The Mark-10 FTS-MG Force Test System is a complete Force Test System designed for compression and tensile testing of small samples. It precisely measures push pull forces as low as 0.002 lb with an accuracy of ± 0.5% full scale ±1 digit. The precision hand wheel allows fine control with greater consistency in testing results. An optional dial indicator kit displays up to 1" of displacement.

*NOTE: Shown with optional attachments

Features

---

• Mounting holes for bench mounting
• Optional 1" [25.4mm] dial indicator travel kit
• Display "real-time" or "peak" force
• Push-button calibration
• Battery life: 30 hours of continuous operation
• Battery or AC operation
• Large baseplate with 5 #10-32 UNF holes for fixture mounting
• User-selected units of Pounds, Kilograms or Newtons
• Includes NIST-Traceable calibration certificate
• 3 Year Warranty

Specifications

---

Capacity	100 lb (45 kg)
Stroke	9" (229mm)
Travel Rate	0.06" (1.5mm) per revolution
Accuracy	± 0.5% of full scale, ±1 least significant digit
Sampling Rate	30 readings per second
Display	4 1/2 digit LCD with .3" high characters. Indicators for low battery, units and mode of operation
Power	Non-rechargeable 9V battery or AC operation with included adapter
Battery Life	30 hours of continuous use, LO BAT indicator
Sensor Deflection	0.010" (0.25 mm) maximum deflection at full load
Overload Protection	150% or higher
Accessories Included	Hook and Flat head
Warranty	3 years

Force Ranges

---

Model	Capacity	Resolution
FTS-2MG	2 lb 1 kg 10 N	0.002 lb 0.001 kg 0.01N
FTS-10MG	10 lb 5 kg 50 N	0.01 lb 0.005 kg 0.05 N
FTS-50MG	50 lb 25 kg 250 N	0.05 lb 0.02 kg 0.2 N
FTS-100MG	100 lb 50 kg 500 N	0.1 lb 0.05 kg 0.5 N

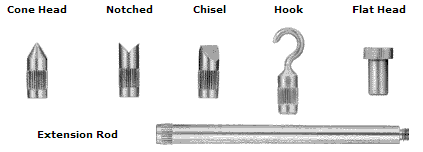

Attachments

---

Standard Attachments	Special Attachments
