Horiba IG-320 # 3014081377 Gloss Meter / Checker, Old # 375004

See More Glossmeters

Horiba IG-320 # 3014081377 Gloss Meter / Checker, Old # 375004

See More Glossmeters
This product has been discontinued

Product Description

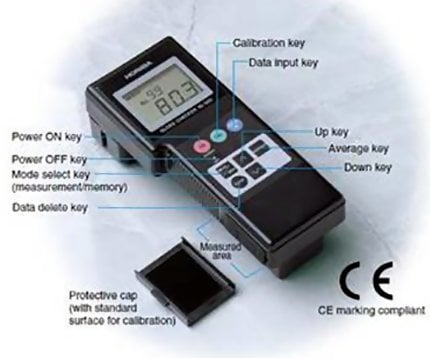

Horiba IG-320 # 3014081377 Gloss Meter / Checker, Old # 375004
High precision measurement
Internal memory
Average mode
Measuring angle 60°
Range 0-100

Gloss meters reflect light when exposed to a surface. The intensity of this reflected light is measured as gloss. The Horiba IG-320 Gloss Meter, # 3014081377 provides a measured value to confirm visual observations reducing human error. Applications vary widely from floor maintenance, floor polishing, marble polishing, to quality control of paint finishes on cars and appliances. Calibrations are performed using a black glass standard. Operation is simple and the user does not need to have any technical knowledge. The meter is laid on the surface to display the gloss value instantaneously. The IG-320's measurement angle is set at 60 degrees.

line
Features
line

  • Easy, one key operation for measurements and data storage.
  • The IG-320 is very accurate with a ± 0.5% reproducibility capability at full scale .
  • Averages up to 99 data points.
  • View saved data on the display by scrolling to the numbered data point.
  • The protective cap holds the black glass calibration plate and protects the meter detection area.
  • The IG-320 is Japan Industrial Standard (JIS) compliant.
  • Battery life: 15 hours of continuous operation

line
Specifications
line

Measurement principle

LED (Wavelength 880nm)

Measurement area

12x6mm oval

Measurement range

0 - 100.0

Display range

0 -199.9

Repeatability

±0.5%F.S. ±within 1 digit

Continual-use time

15 hours

Functions

display hold, battery alarm, out-of-range display, internal data memory, average value calculation, auto power-off, audible keystroke confirmation signal


line
Schematics
line

ABQ

line
Downloads
line

Horiba IG-320 Gloss Meter No. 3014081377 - Literature
Horiba IG-320 Gloss Meter No. 3014081377 - Data Sheet
Horiba IG-320 Gloss Meter No. 3014081377 - Instruction Manual
