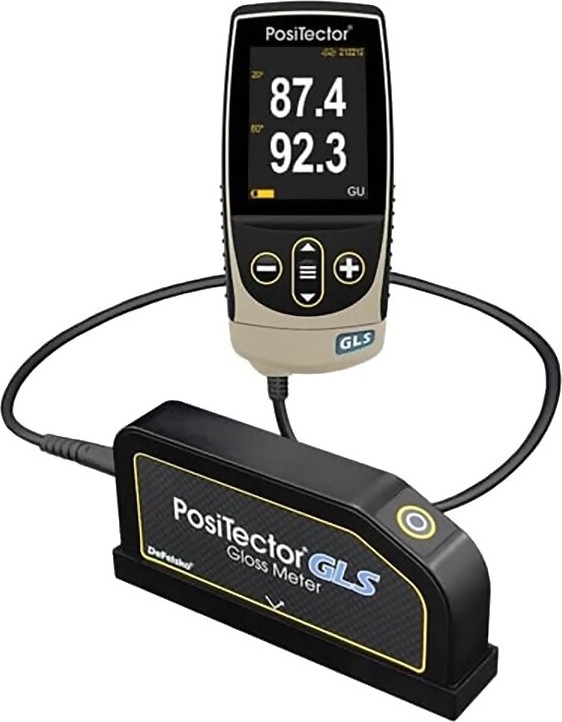

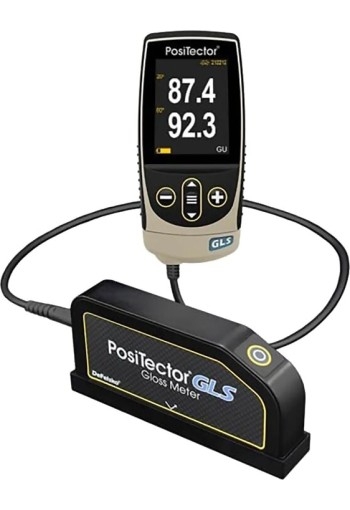

DeFelsko GLS2060-3 PosiTector Advanced Gloss Meter - Range: Semi Gloss, 60° value:10 – 70 GU, Measure with: 60°

See More DeFelsko PosiTector GLS Gloss Meter

DeFelsko GLS2060-3 PosiTector Advanced Gloss Meter - Range: Semi Gloss, 60° value:10 – 70 GU, Measure with: 60°

See More DeFelsko PosiTector GLS Gloss Meter
Price:
$2,575.00
    warrenty

    Product Description

    Portable gloss measurement for all surface finishes
    Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
    Weatherproof, dustproof, and water-resistant gage body - IP65-rated enclosure

    Portable gloss measurement for all surface finishes

    • Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
    • Weatherproof, dustproof, and water-resistant gage body - IP65-rated enclosure
    • Automatic Diagnosis and Auto Calibration performed upon power-on using the protective base plate with integrated calibration standard (tile)
    • Fast measurement speeds of 60+ readings per minute
    • 2 Powerful Scan Modes for quantifying large surfaces (Advanced models only)

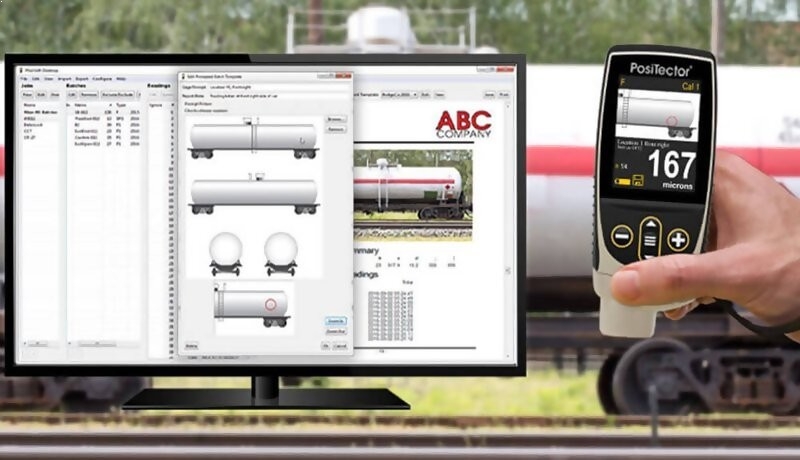

    • USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
    • Certificate of Calibration showing traceability to NRC for both the probe and gloss standard included

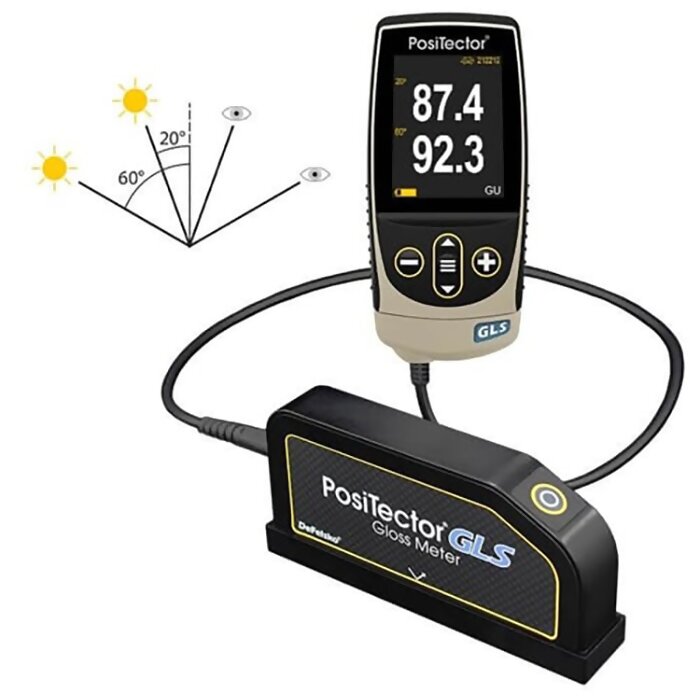

    Conforms to ASTM C584/D523/D4039, ISO 2813/7668, JIS Z 8741, AS/NZS 1580.602.2


    line

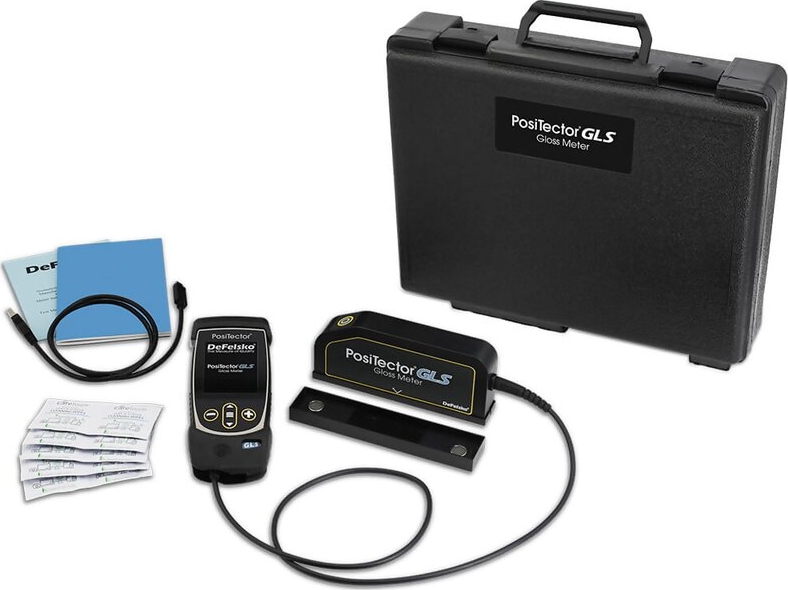

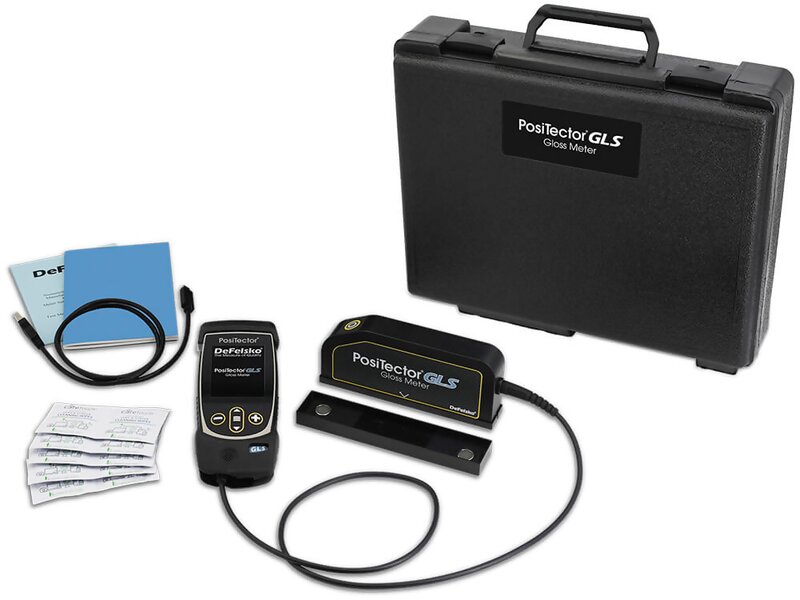

    Kit Contents
    line

    • PosiTector Advanced Gage Body BDYAVD-G
    • PosiTector GLS Probe PRBGLS2060

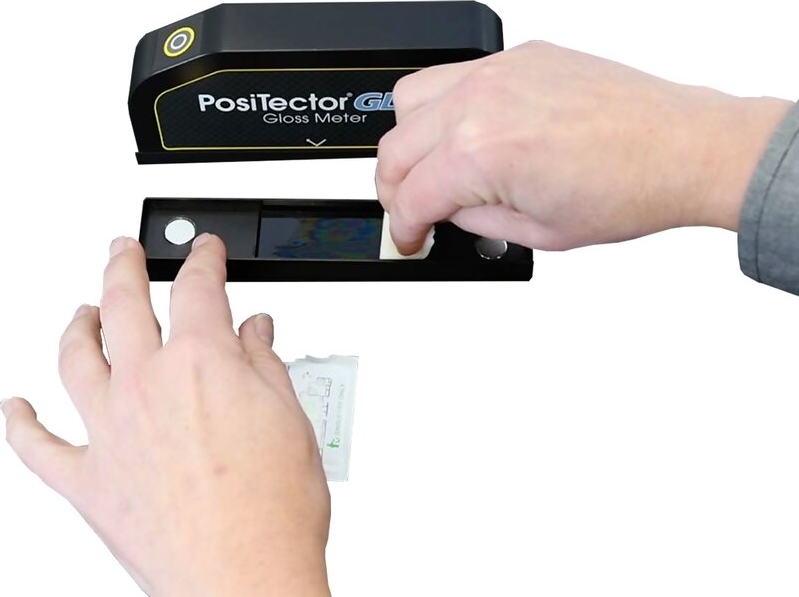

    • Protective base plate with integrated calibration standard (tile)

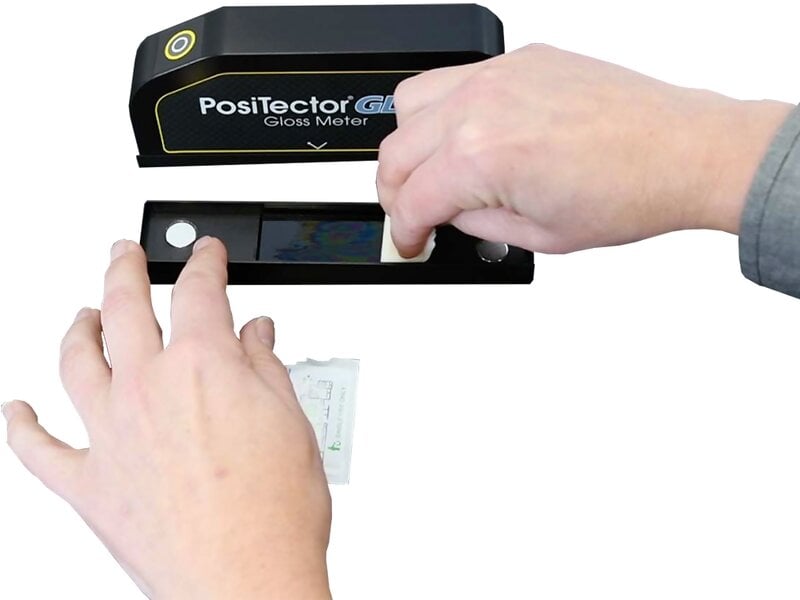

    • 10 cleaning wipes
    • Protective rubber holster with belt clip
    • Wrist strap and protective lens shield
    • 3 AAA alkaline batteries
    • PosiSoft Software and USB cable
    • Long Form Certificate of Calibration
    • Hard shell case and instructions
    • Two (2) year warranty

    DeFelsko PosiTector GLS Gloss Meter - Kit


    line
    Features
    line

    Simple

    • Fast measurement speed - 60+ readings per minute
    • Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
    • On-gage help explains menu items at the touch of a button
    • RESET feature instantly restores factory settings

    Durable

    • All-metal probe construction for long term stability
    • Weatherproof, dustproof, and water-resistant gage body - IP65-rated enclosure
    • Ergonomic design with durable rubberized grip
    • Rugged, indoor/outdoor instrument - ideal for field or shop use
    • Shock-absorbing protective rubber holster for added impact resistance
    • Two year warranty on gage body AND probe

    Powerful

    • Statistics mode continually displays/updates average, standard deviation, min/max, and number of readings while measuring
    • Screen Capture - save 100 screen images for record keeping and review
    • HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits - can be used as Pass/Fail for quick inspection
    • Instant-on feature quickly powers up the gage if recently powered down
    • Up to 30% longer battery life

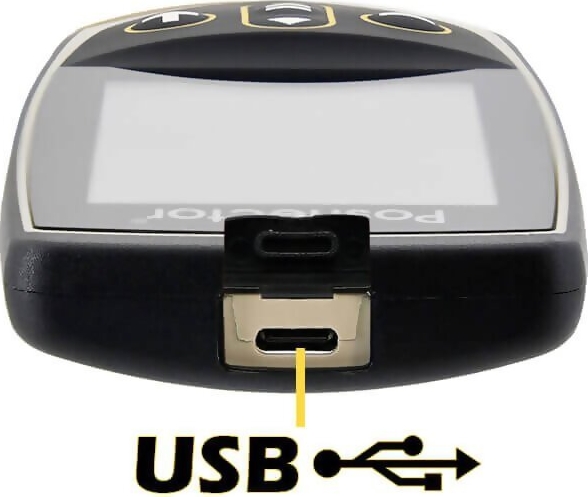

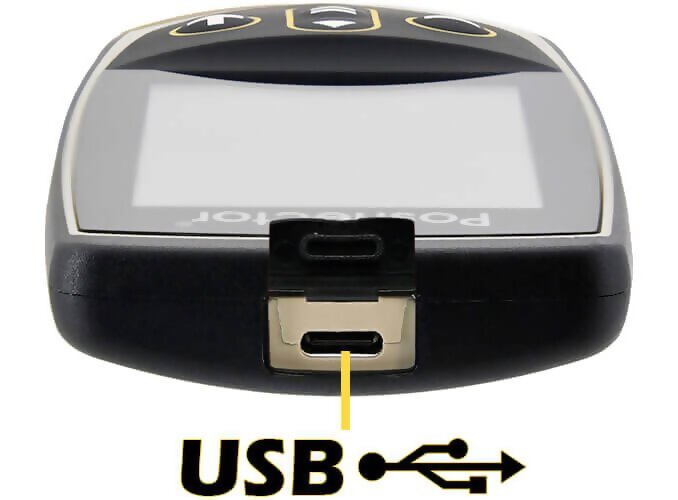

    • USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
    • View pre-formatted reports and .csv data with PosiSoft USB Drive - no software installation required
    • Every stored measurement is date and time stamped
    • Includes PosiSoft Software for viewing and reporting data
    • Software Updates via web keep your gage current

    Accurate

    • Certificate of Calibration showing traceability to NRC for both the probe and gloss standard included
    • Automatic Diagnosis and Auto Calibration upon power-on using the protective base plate with integrated calibration standard (tile)
    • Store multiple calibration standards (tiles) for quick calibration adjustment
    • Conforms to national and international standards including ISO and ASTM

    Versatile

    • PosiTector body accepts all PosiTector probes easily converting to a coating thickness gage, dew point meter, soluble surface profile gage, soluble salt tester, hardness tester, or ultrasonic wall thickness gage
    • Selectable units for each geometry - Gloss and % Reflectance
    • Auto rotating display with Flip Lock

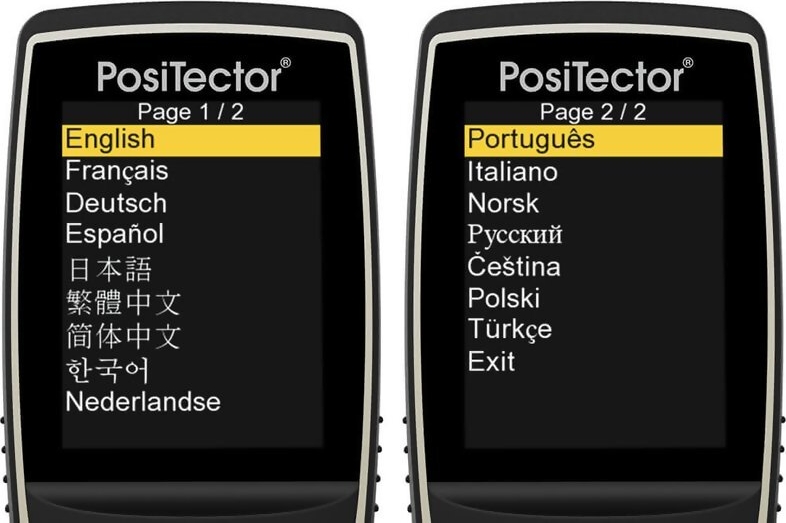

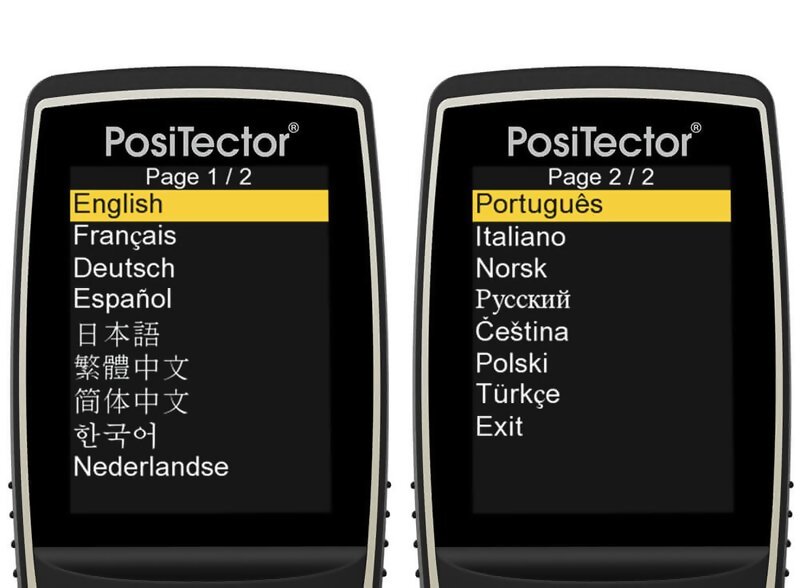

    • Selectable display languages

    Advanced Model Features

    • Storage of 250,000 readings in up to 1,000 batches and sub-batches
    • Differential Mode automatically calculates the difference between the current reading and a stored reference value
    • 2 Powerful Scan Modes for quantifying large surfaces
      • Normal – take continuous readings
      • Statistics – take continuous readings and record average, standard deviation, min/max, and number of readings while scanning
    • Live graphing of measurement data
    • Touchscreen keyboard for quickly renaming batches, adding notes, and more
    • WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
    • Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.
    • Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols


    line
    Specifications
    line

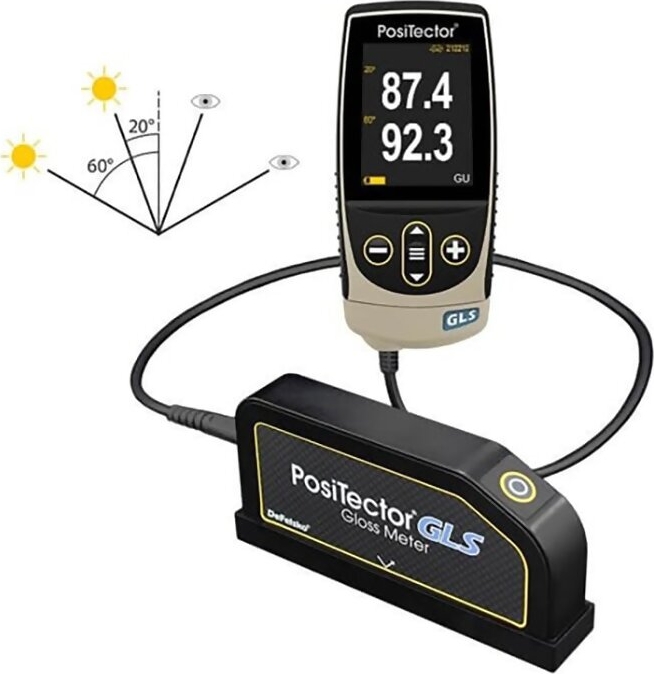

     20°60°85°
    Measurement Area10 x 10 mm10 x 20 mm4 x 45 mm
    Measurement Range0 - 2,000 GU0 - 1,000 GU0 - 160 GU
    Repeatability±0.2 GU (≤100 GU), ±0.2% (>100 GU)
    Reproducibility±0.5 GU (≤100 GU), ±0.5% (>100 GU)
    Resolution Gloss±0.1 GU (≤100 GU), ±1 GU (>100 GU)
    Resolution % Reflectance0.1%
    Resolution Haze±0.1 (≤100), ±1 (>100)
    Operating Conditions0° to 45° C (32° to 113° F) - non-condensing
    Probe Size165 x 73 x 32 mm (6.5" x 2.875" x 1.25")
    Probe Weight555 g (19.6 oz.)


    line
    Range
    line

    Gloss Range60° valueMeasure with
    High Gloss> 70 GU20°
    Semi Gloss10 – 70 GU60°
    Low/Matte< 10 GU85°
