This product has been replaced by the Imada PSH
The ESH has been replaced by the PSH High Capacity Mechanical Force Gauge
High Capacity Mechanical Force Gauge
11 Ranges up 500lbs / 300 Kg / 3000 N
Intrinsically Safe for use in hazardous environments

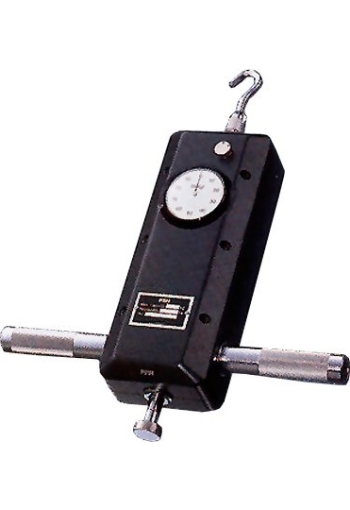

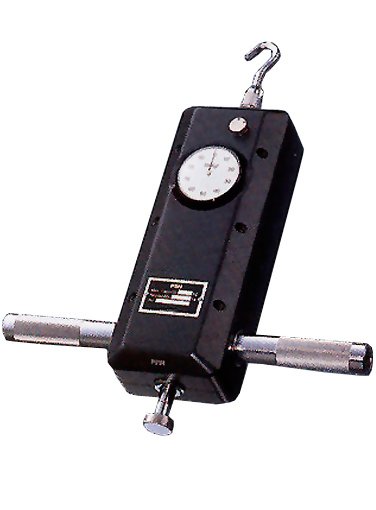

The Imada ESH series mechanical force gauge is designed for high capacity measurements from 200 lbs up to 500 lbs (300 kg). The rugged metal housing and heavy duty springs will withstand the harsh rugged environment of a manufacturing plant, yet the highly accurate, matched springs will ensure reliable results and retain their accuracy over long periods. The tare ring allows you to zero the gauge and compensate for measuring attachments and changes in measuring position. The real time/peak hold selector switch enables you to observe transients or capture peaks. The Imada ESH force gauges are available in pounds, kilograms and Newtons. No batteries are needed and the unit is intrinsically safe in hazardous environments.
Features
- Real time and peak mode
- Simple, rugged, virtually maintenance free
- No batteries needed
- Full set of accessories and carrying case included
- Capacities up to 500 lbs (push and pull)
- Intrinsically safe in hazardous environments
- Heavy duty metal construction
- Tare Ring
- ISO/IEC 17025 Long-form Certificate & Test Data is optionally available
- 2 Year Warranty
Force Ranges
| Model | Capacity (resolution) | | ESH-200 | 200 lb (2 lb) | | ESH-300 | 300 lb (2.5 lb) | | ESH-400 | 400 lb (4 lb) | | ESH-500 | 500 lb (5 lb) | | ESH-100 kg | 100 kg (1 kg) | | ESH-200 kg | 200 kg (2 kg) | | ESH-300 kg | 300 kg (2.5 kg) | | ESH-1000 N | 1000 N (10 N) | | ESH-2000 N | 2000 N (20 N) | | ESH-3000 N | 3000 N (25 N) | M10p1.5 Threaded measuring shaft (top & bottom)
Displacement at full scale capacity is 10mm
Special Attachments
Standard Attachments

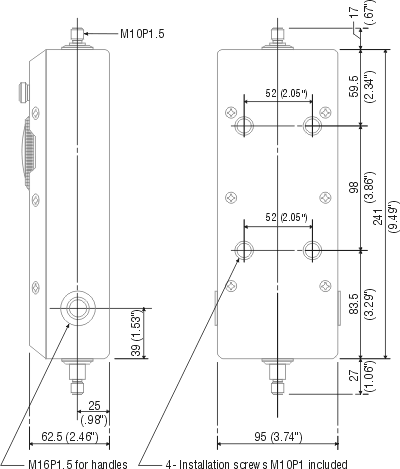

Dimensions
Specifications
| Accuracy | ± 0.5% Full Scale | | Stroke | 10 mm | | Weight | 3.1 Kg | | Warranty | 2 Years |
Complete Kit
Sold in kit form complete with force gauge, hard plastic carrying case, handles, measuring attachments (hook and flat head), and extension shaft. Four installation bolts are also included for mounting the gauge to a test stand or other permanent location.
|
|
