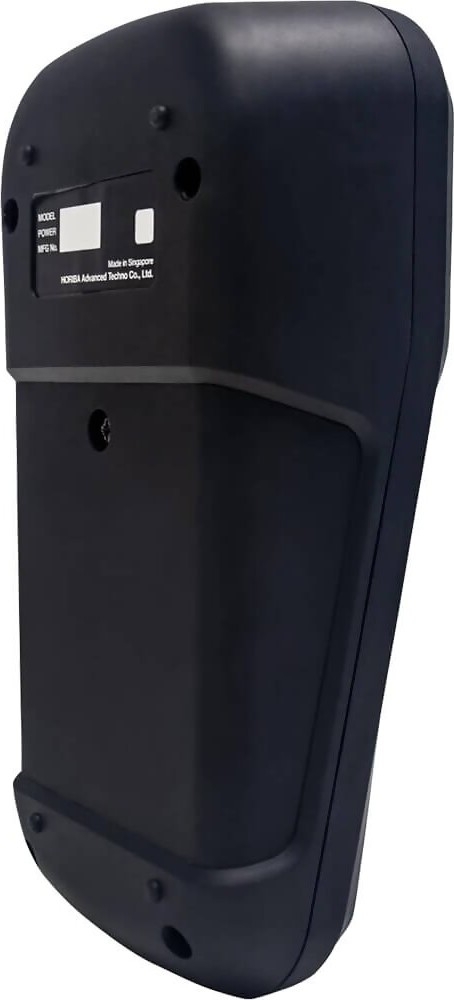

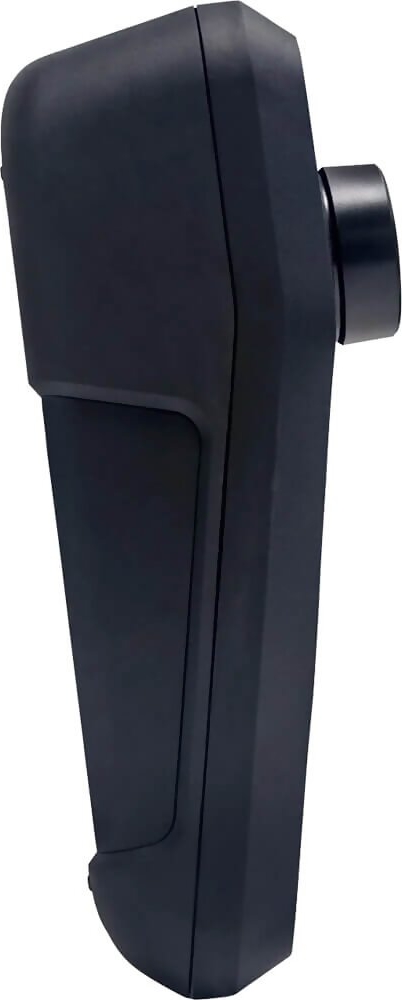

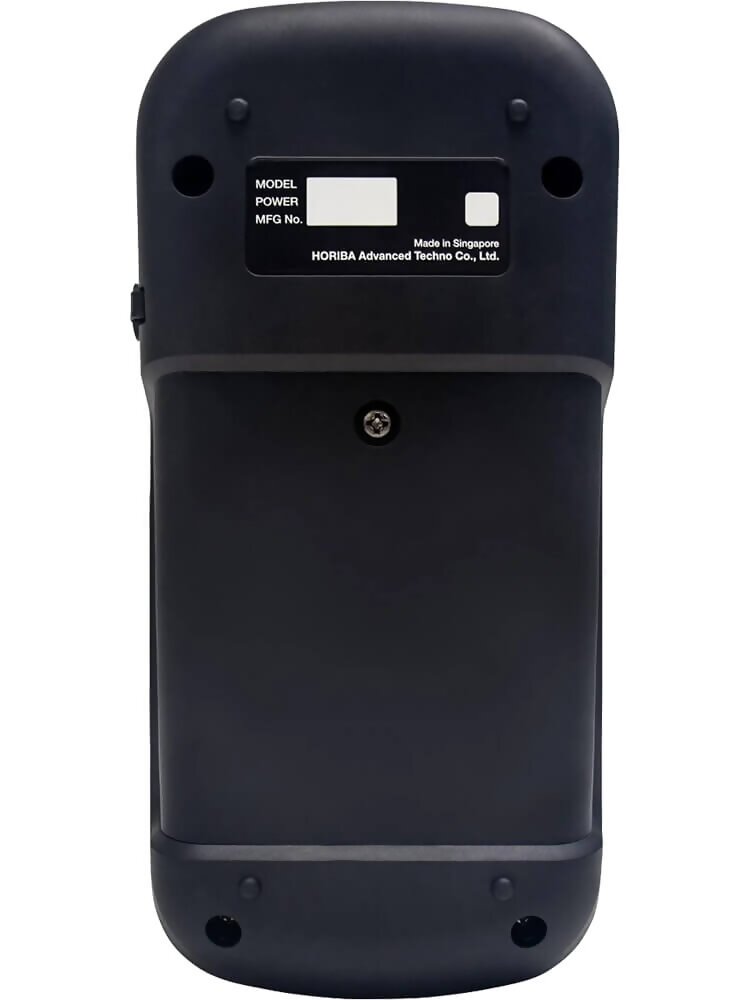

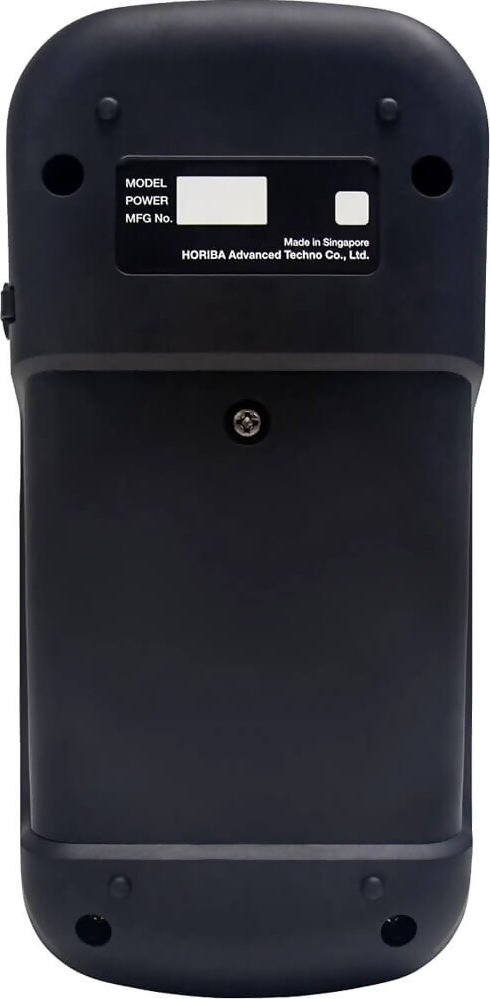

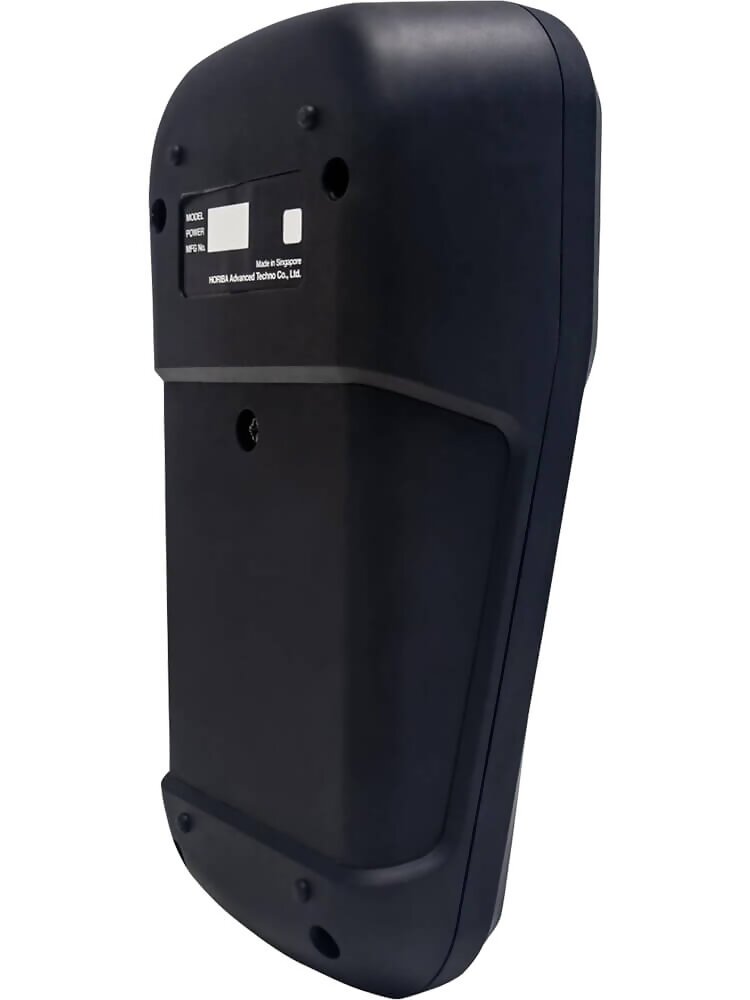

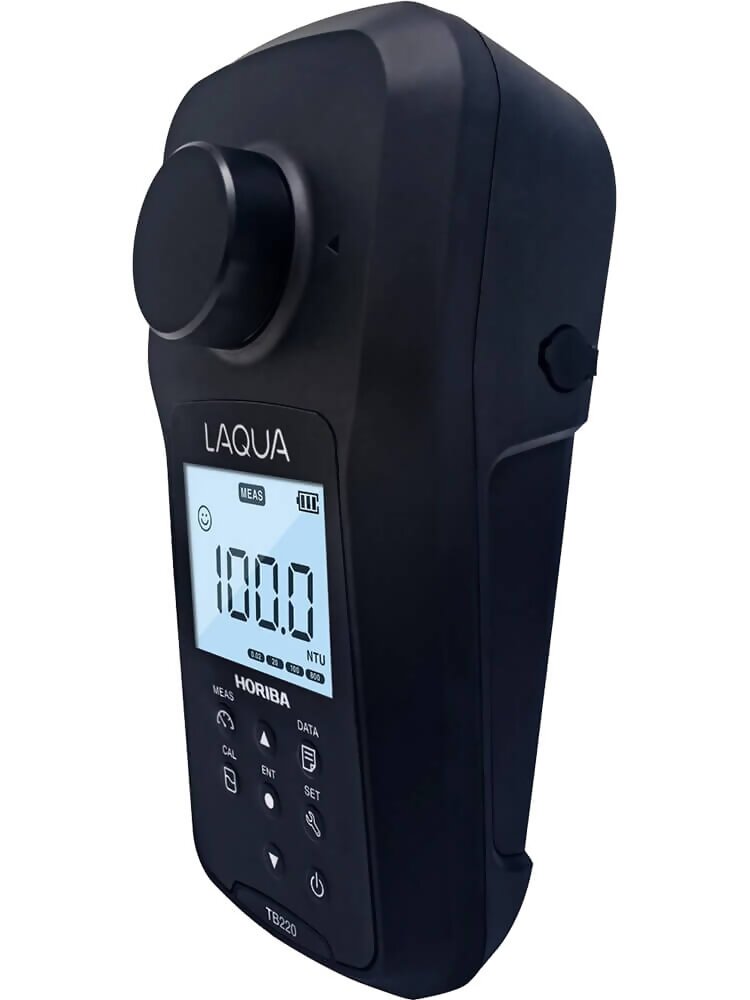

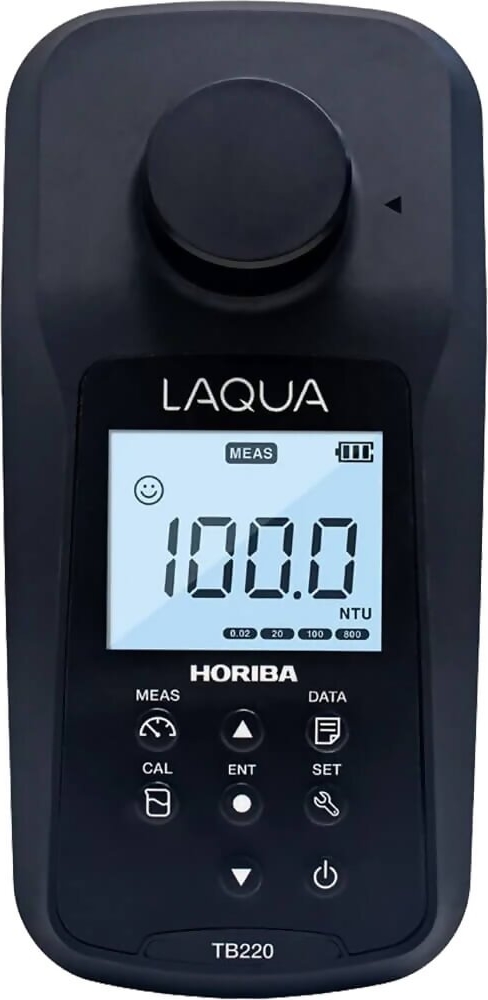

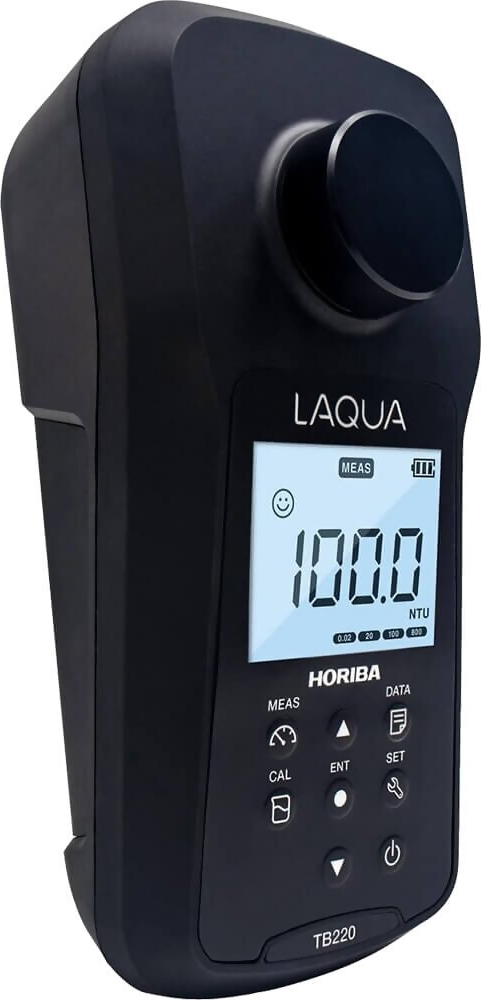

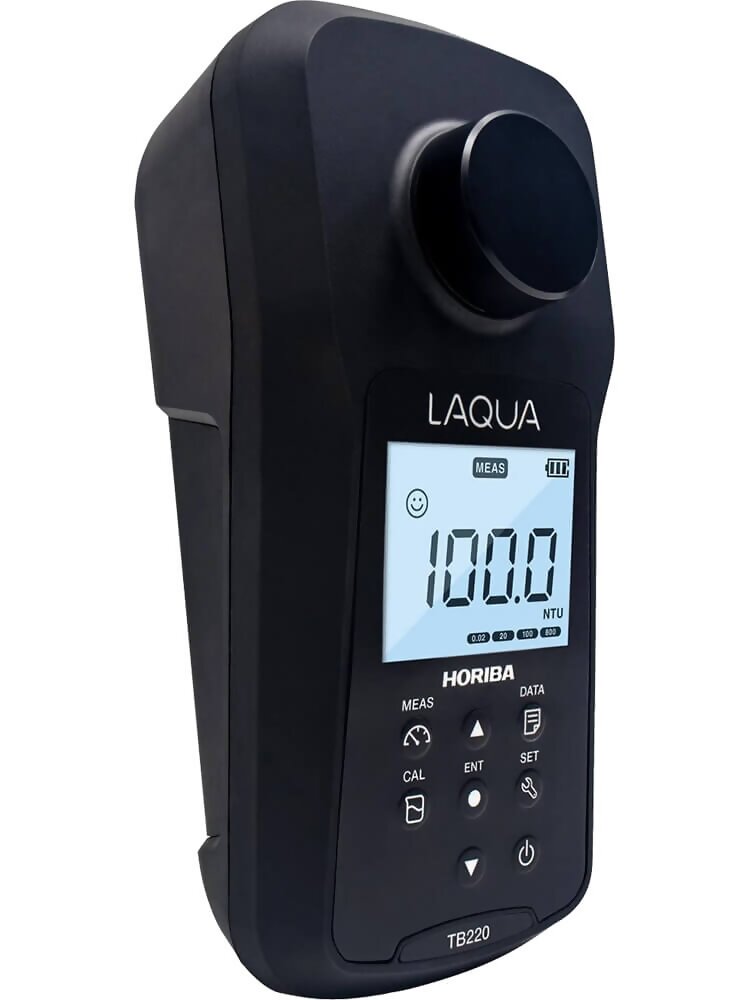

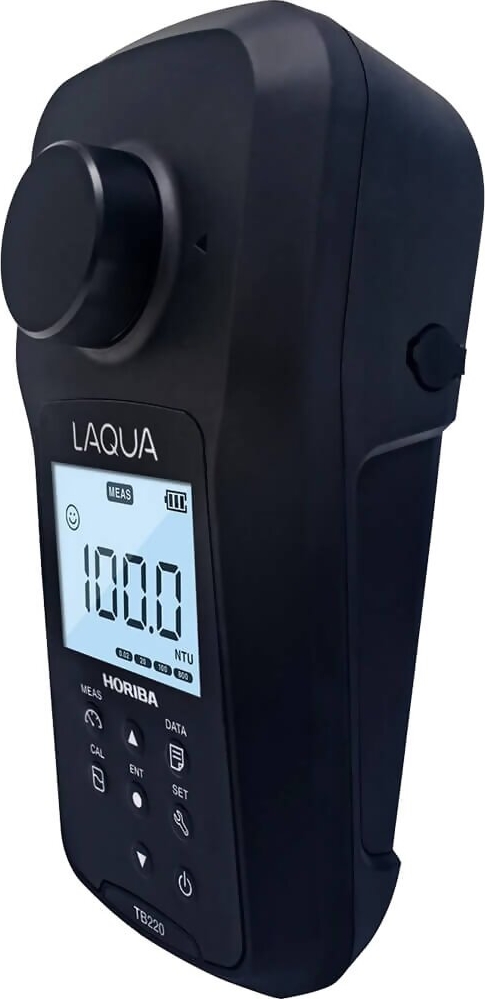

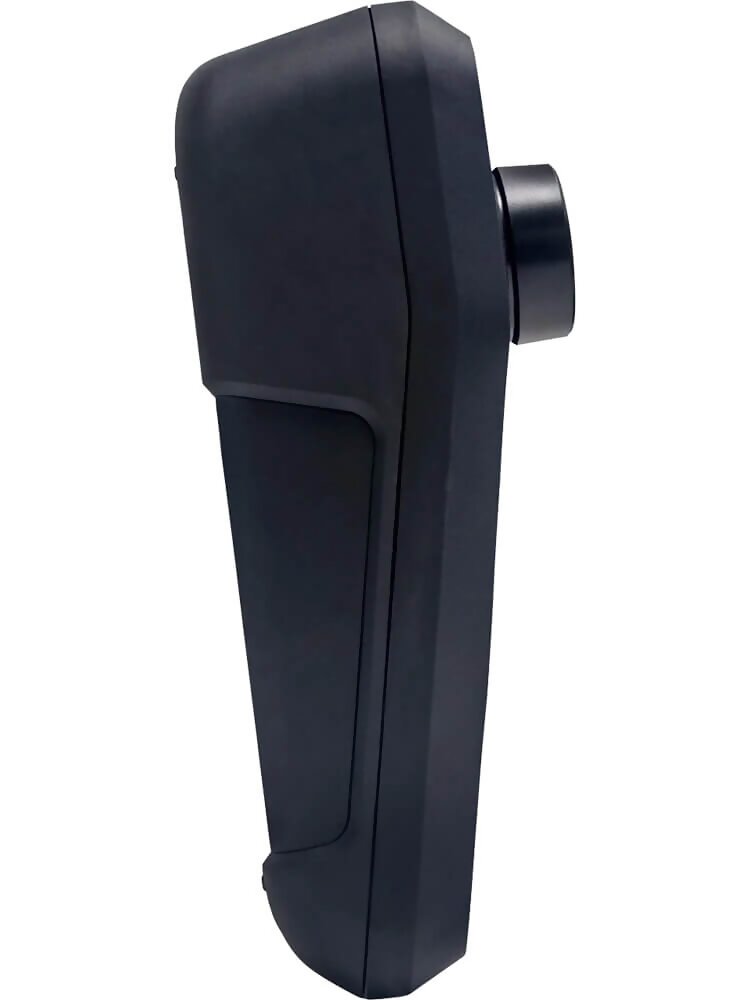

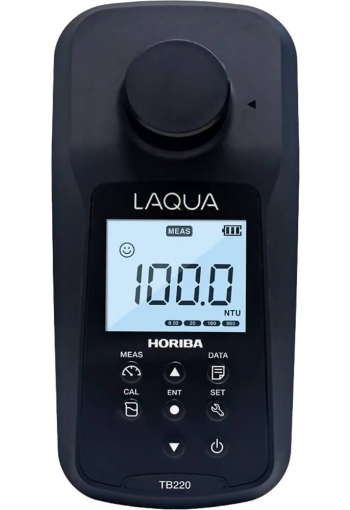

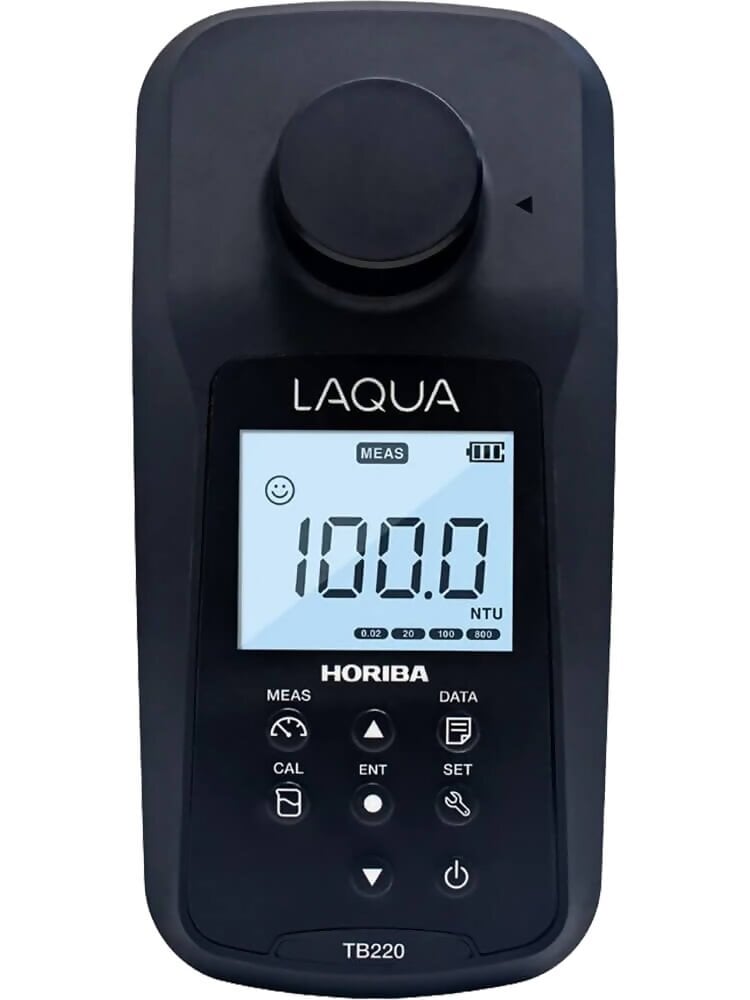

The Horiba LAQUA TB220 Portable Turbidity Meter, # 3201068607 is a waterproof turbidity portable meter with backlit LCD and shockproof, scratch-resistant, non-slip casing. Packaged with 0.02, 20, 100, and 800 NTU Styrene Divinylbenzene (SDVB) polymer solution standards, 4 sample vials, and a set of silicone oil and cloth in durable carrying case for routine water quality testing.
- Horiba LAQUA TB220 Portable Turbidity Meter, # 3201068607, Meter Only
- Leveraging the principle of ratiometric turbidity measurement using nephelometric light scatter and transmitted light signals
- Auto range up to 2000 NTU
- Compliant with ISO 7027 and DIN EN 27027
- Up to 4 selectable calibration points using SDVB polymer standards (0.02, 20, 100, 800 NTU)
- IP67 rating dustproof and waterproof (excluding vial mounting part)
- Large monochrome display with backlight (50 x 40 mm)
- Shock and scratch resistant, non-slip housing
- Simple user interface with smiley reading stability indicator
- PC and printer compatible
- Software upgradeable
- Up to 2000 data with date and time stamp
- Auto shut-off (programmable: off, up to 30 minutes)
- Phono jack output for connecting the meter to computer via PC (USB) cable for data collection and to printer via printer (RS232) cable for printout
- 3 years meter warranty
- Software Upgrad: Yes, PC (USB) cable required; Via PC (USB) cable PN 3200779639
- Printer Communication: Yes, Printer (RS232) cable required. Via Printer (RS232) cable PN 3200779638
- Battery Life: 2000 measurements - Depends on meter settings
| Turbidity Range: | 0.00 to 2000 NTU |
| Resolution: | 0.00 – 19.99 NTU, 20.0 – 199.9 NTU, 200 – 2000 NTU |
| Accuracy: | 0.00 – 1000 NTU ±0.02 NTU or ±2%, 1001 – 2000 NTU ±3% |
| Repeatability: | ±0.02 NTU or ±2% |
| Calibration Points: | Up to 4 (selectable 0.02, 20, 100, 800 NTU) |
| Calibration Standards: | Styrene divinylbenzene (SDVB) polymer solution |
| Principle: | Ratiometric turbidity measurement using nephelometric light scatter and transmitted light signals |
| Compliance: | ISO 7027, DIN EN 27027 |
| Light Source: | Infrared light emitting diode (860 nm) |
| Detector: | Silicone photodiode |
| Sample Volume: | 10 ml |
| Memory: | 2000 |
| Real-Time Clock: | Yes |
| Date & Time Stamp: | Yes |
| Auto Shut-Off: | Off, 1 to 30 mins |
| Diagnostic Messages: | Yes |
| Display: | Custom LCD with backlight (50 x 40 mm) |
| Housing: | IP67 (Except for vial mounting part), shock & scratch resistant, non-slip |
| Power Requirement: | 4 x AA batteries. Not provided |
| Operating Temperature: | 0 to 50 °C |
| Meter Dimensions: | 210 (L) x 110 (W) x 55 (H) mm |
| Weight: | Approx. 510g (with batteries) / 410g (without batteries) |
