Waterproof standard handheld meters with backlit LCD, shockproof & scratch-resistant non-slip casing, built-in electrode stand, and foldable meter stand in durable carrying case for routine water quality testing in the field.

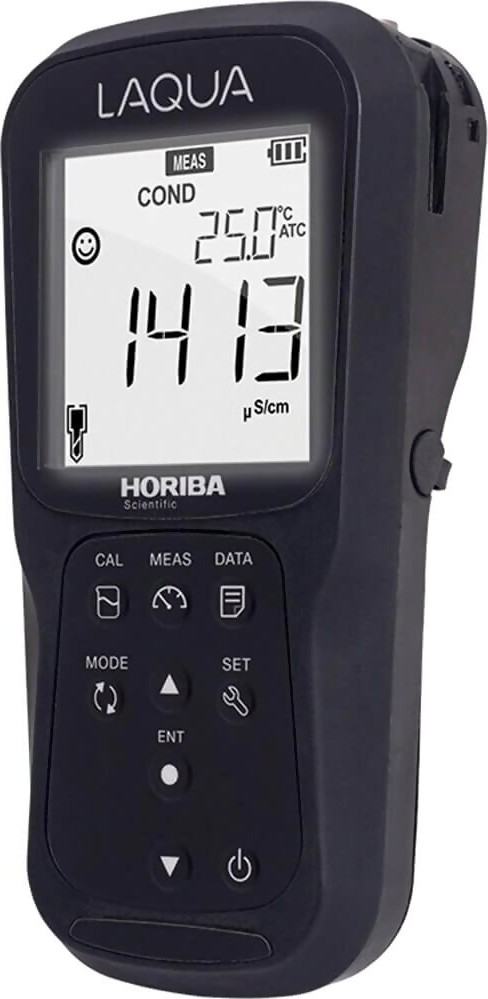

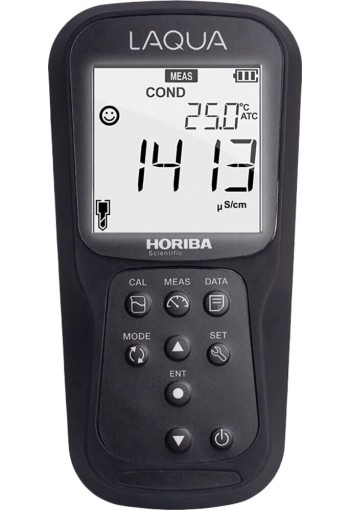

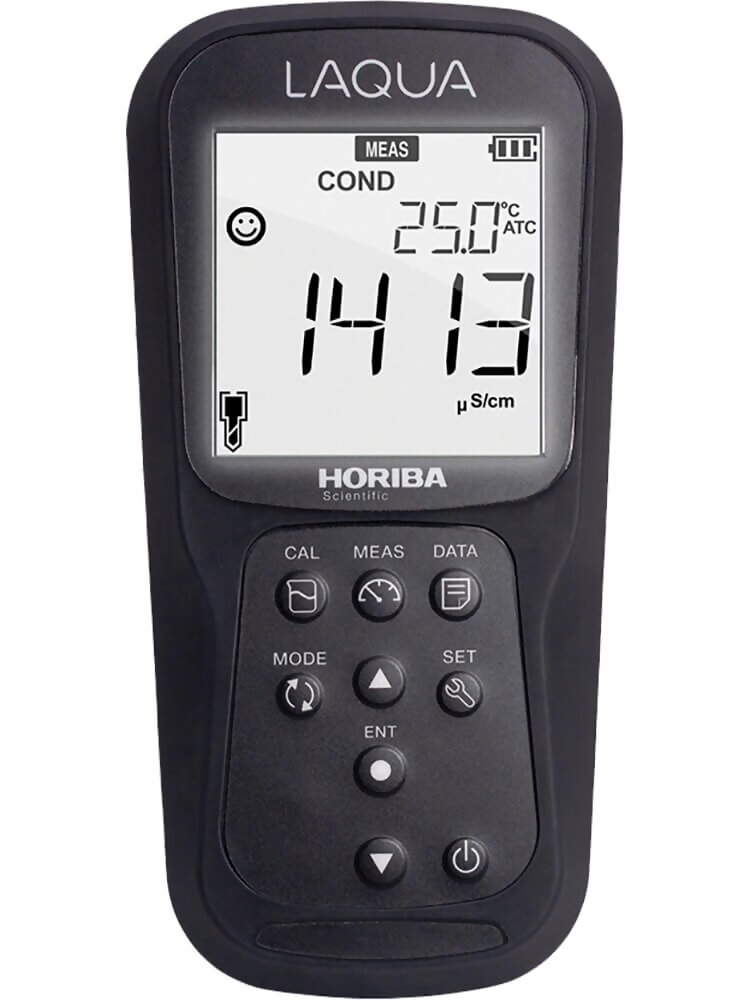

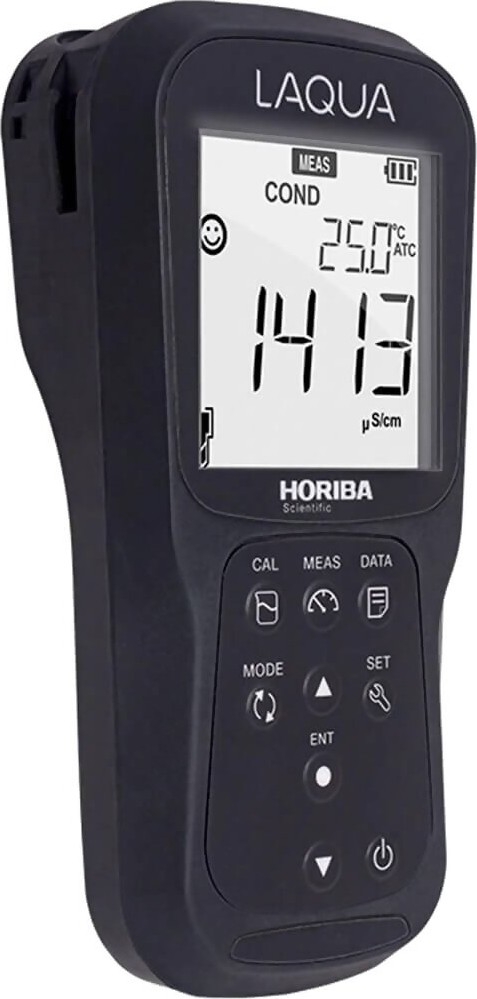

- Horiba LAQUA EC220 Handheld Conductivity / Salinity / Resistivity / TDS / Temperature Meter Only
- Instruction Manual
- Automatic (up to 4 points) and manual (up to 5 points) conductivity calibration
- Adjustable reference temperature and temperature coefficient
- Adjustable cell constant and selectable measurement unit
- Automatic / manual temperature compensation and temperature calibration function
- Conductivity and total dissolved solids (TDS) conversion
- Four (4) TDS calibration curves for wide range of applications: EN27888, Linear, 442, NaCl
- Two (2) salinity calibration curves: NaCl, Seawater
- °C & °F temperature readings
- With real-time clock and date/time stamp for GLP compliance
- Auto log data; built-in memory can store up to 1000 data
- Auto stable, auto hold, and real-time measurement modes
- Auto shut-off (programmable: up to 30 minutes)
- Monochrome LCD with white LED backlight: 50 x 50 mm
- Phono jack output for connecting the meter to computer via PC (USB) cable for data collection and to printer via printer (RS232) cable for printout
- Powered by 2 x AA batteries
- Casing is IP67 waterproof/dustproof, shock & scratch resistant, non-slip

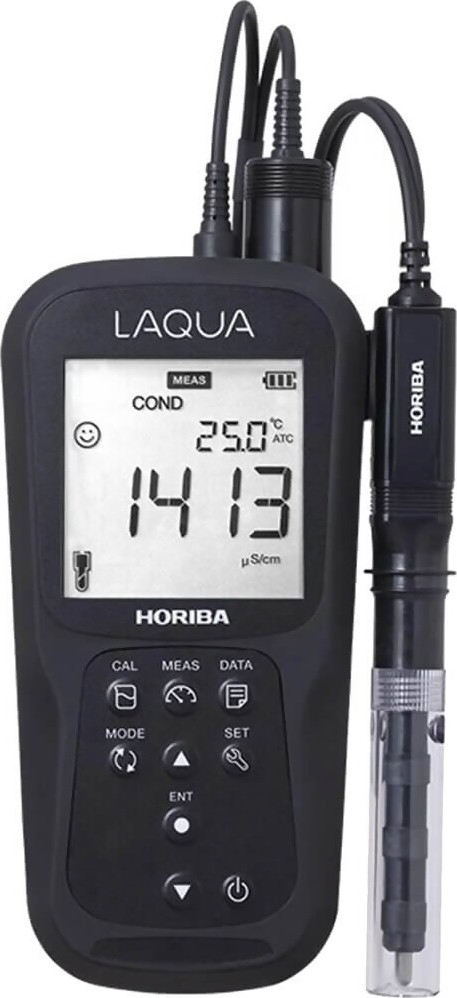

- Packaged with electrode and calibration solutions in carrying case
- 3 years meter warranty
| Conductivity Range: | ...µS/cm to 200.0 mS/cm (k=1.0)
|
| Resolution: | 0.1 °C / °F
|
| Accuracy: | ± 0.5 °C / ± 0.9 °C
|
| Reference Temperature: | 15 to 30 °C (adjustable)
|
| Temperature Coefficient: | 0.00 to 10.00% (adjustable)
|
| Cell Constant: | 0.1, 1.0, 10.0 (adjustable)
|
| Calibration Points: | Up to 4 (Auto) / Up to 5 (Manual)
|
| Measurement Unit: | S/cm, S/m (selectable / auto-ranging)
|
| TDS Range: | ...ppm to 100 ppt (TDS factor=0.5)
|
| TDS Curves: | Linear (0.40 to 1.00), EN27888, 442, NaCl
|
| Resistivity Range: | 0.000 Ω•cm to 20.0 MΩ•cm
|
| Salinity Range: | 0.0 to 100.0 ppt / 0.00 to 10.00 %
|
| Salinity Curves: | NaCl / Seawater
|
| Calibration Option: | Yes
|
| Temperature Range: | -30.0 to 130.0 °C / -22.0 to 266.0 °F
|
| Memory Data: | 1000
|
| Auto Log Data: | Yes
|
| Real-time Clock: | Yes
|
| Date & Time Stamp: | Yes
|
| Measurement Modes: | Auto Stable, Auto Hold, Real Time
|
| Auto-Shut Off: | Yes (Programmable up to 30 minutes)
|
| Electrode Status: | Yes (On screen display)
|
| Diagnostic Messages: | Yes
|
| Software Upgrade: | Yes via PC (USB) cable PN 3200779639
|
| PC Communication: | Yes via PC (USB) cable PN 3200779639
|
| Printer Communication: | Yes via Printer (RS232) cable PN 3200779638
|
| Meter Inputs: | BNC (for conductivity electrode), phono (for temperature sensor)
|
| Meter Output: | phono (for PC/printer connection)
|
| Display: | Custom LCD with backlight
|
| Housing: | IP67, shock & scratch resistant, non-slip
|
| Power Requirement: | 2 x AA batteries
|
| Battery Life: | > 500 hours
|
| Meter Dimensions: | 160 (L) x 80 (W) x 40.60 (H) mm
|
| Meter Weight: | Approx. 260g (with batteries) / 216g (without batteries) |
