Honigmann RFS200S Radial Force Measuring Axle

See More Cable Tension Meters

Honigmann RFS200S Radial Force Measuring Axle

See More Cable Tension Meters
Call for price
    warrenty

    Product Description

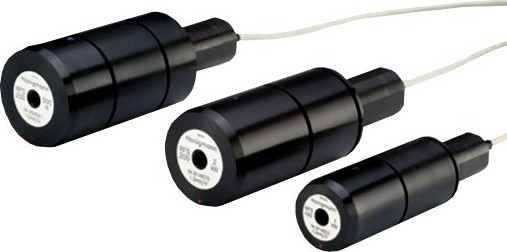

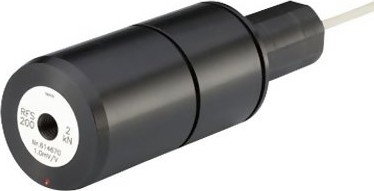

    Radial force measuring axle

    Available in various rated load ranges:
    0 - 0.5 kN up to 0 - 10 kN


    line
    Features
    line

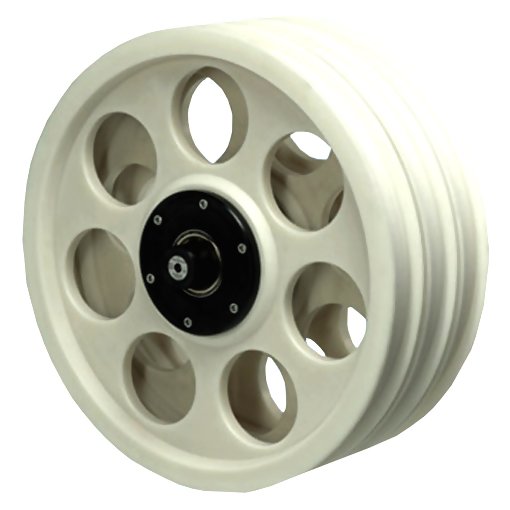

    • Special design for tension measurement in disk accumulator
    • Easy to adapt
    • Milled planes on the axle journal
    • Robust, anodised steel housing


    line
    Specifications
    line

    Rated Measuring Ranges (FN)0 - 0.5 up to 0 - 10 kN
    Rated output1.0 mV/V
    Rated output tolerance< ± 0.2%
    Accuracy Class0.3
    Excitation Voltage max.12 V
    Reference Excitation Voltage10 V
    Input Resistance350 ±3 Ω
    Output Resistance350 ±1 Ω
    Isolation Resistance> 10 GΩ
    Rated Temperature Range5 - 50 °C
    Option: -10 - 70 °C
    Operational Rated Temperature RangeSensor: -10 - 70 °C
    Connection Cable: -30 - 80 °C
    Storage Temperature Range-30 - 70 °C
    Reference Temperature23 °C
    Temperature Influence per 10KOn the zero point (TK0): <±0.1 %FN
    On the calibration (TKC): <±0.15 %FN
    Creep after 30 minutes< ±0.05 %FN
    Linear output signal up toapprox. 125 %FN
    Mech. overload protection takes effect atapprox. 140 %FN
    Overload protected1200 to 400 %FN(depending on nominal force)
    Ultimate side load200 %FN
    Deflection at nominal force0.07 to 0.25 mm (depending on nominal force)
    Natural frequency of the sensor> 0.25 kHz (depending on nominal force)
    Weightapprox. 1.6 kg
    Connection Cable3m long , flexible, shielded, 4 x 0.14 mm2, total-Ø 4.5 mm
    Sensor Housinghigh-tensile steel, black finishing
    Protection ClassIP 50

    1 radial incoming force without additional bending or tilting moment


    line
    Related Products
    line

    TS621
    Strain Gauge Amplifier

    • Designed for use with a wide range of strain-gauge-based force, load and tension sensors
    • 0-10VDC analog output
    related

    line

    TS481
    Strain Gauge Measurement Amplifier

    • Galvanic Isolation minimizes the chance for signal interference, including ground faults
    • Provides accuracy of ±0.1%
    • User-enabled "damping function" eliminates tension fluctuations
    related

    line

    DPM502
    Digital Tension Indicator

    • Selectable “damping function” reduces display fluctuations
    • 24V DC power supply with galvanic isolation
    related

    line

    HCC-Easy
    Data Transfer & Analysis Program For Honigmann Tension Sensors

    • Real time display of measured values graphically and digitally, indicating the actual value in tension units
    • Export data in ASCII format
    related


    line
    Downloads
    line

    Honigmann RFS200S Radial Force Measuring Axle - Data Sheet
    Honigmann RFS200S Radial Force Measuring Axle - Instruction Manual
