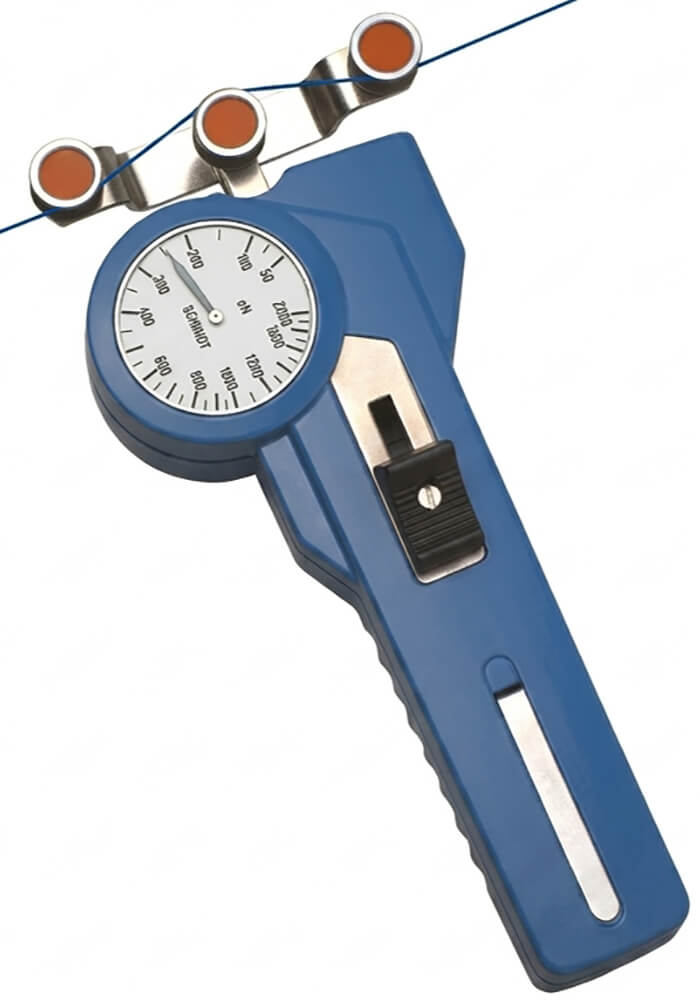

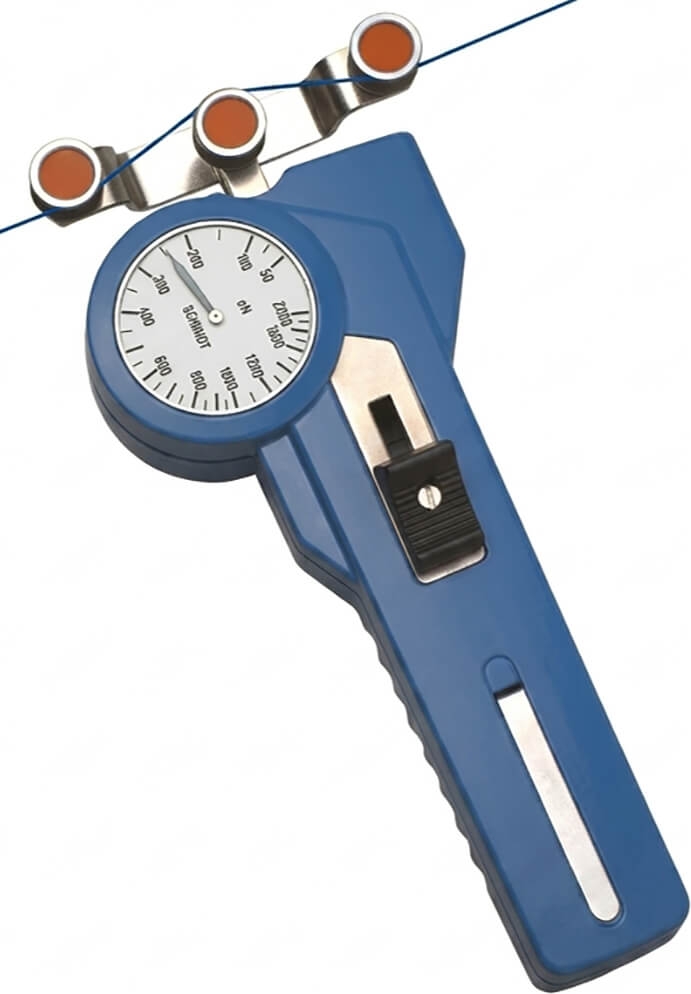

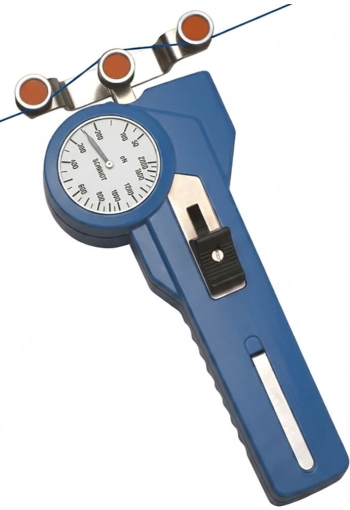

Manufactures of wire-EDM machines recommend checking the erosion wire tension once a week. Depending on the machine type as well as the wire material and diameter, the measured tension should lie between 50 and 3000 g.
The correct erosion wire tension reduces wire oscillation and guarantees a pinpoint accuracy of your machines. Always check the tension in calibration mode on the moving wire. Make sure the generator is switched off for the tension check
Features

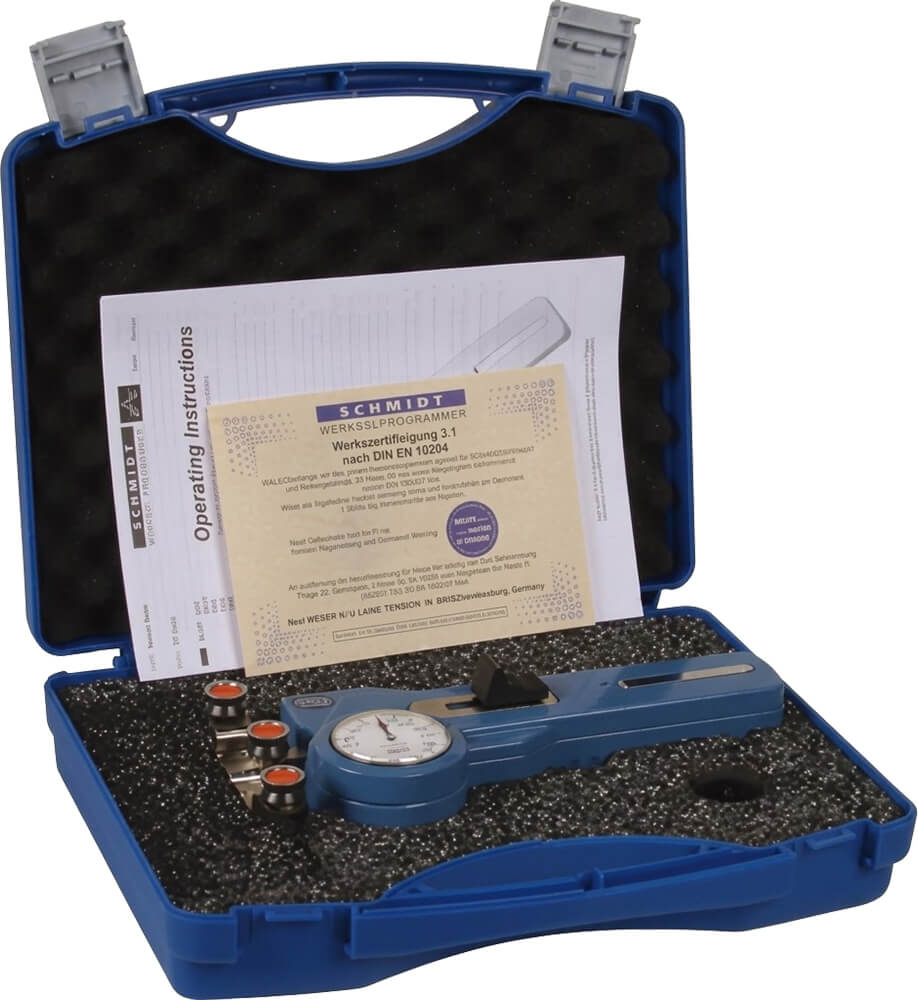

- NIST-Traceable Calibration Certification OPTIONAL
- Easy-to-read analog scale
- Simple handling
- Special versions for specific EDM machines are available
- Measuring range 2000 g, 3000 g or 4000 g
- Calibration in cN is available
- Warranty: 1-Year
- Made in Germany
Specifications

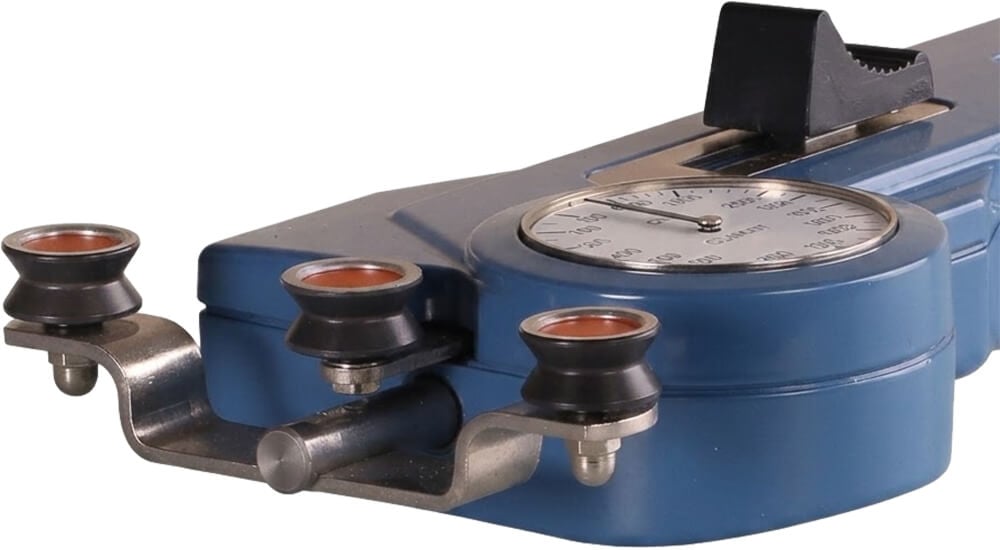

| Accuracy | ± 1% Full scale or ± 1 scale graduation mark |
| Rollers | Material : Hardcoated aluminum Diameter: 12 mm |
| Scale Diameter | 41 mm |
| Temperature Range | 8 - 45 °C |
| Humidity Maximum | 85% RH |
| Housing Material | Aluminum die casting |

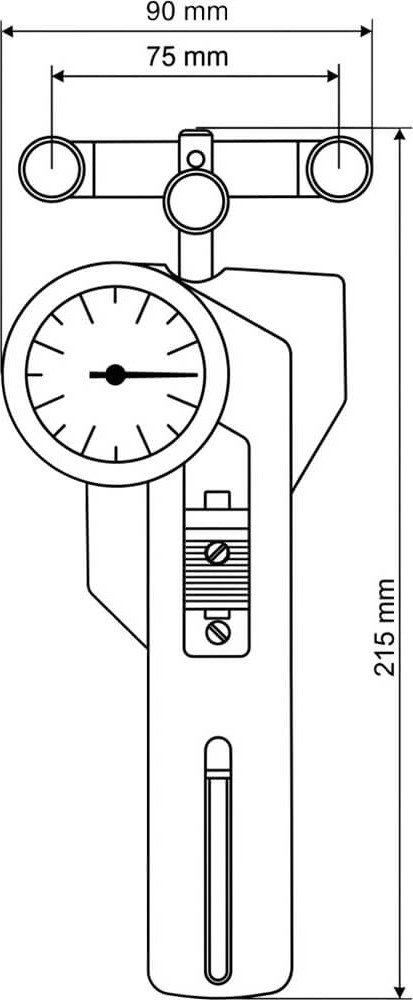

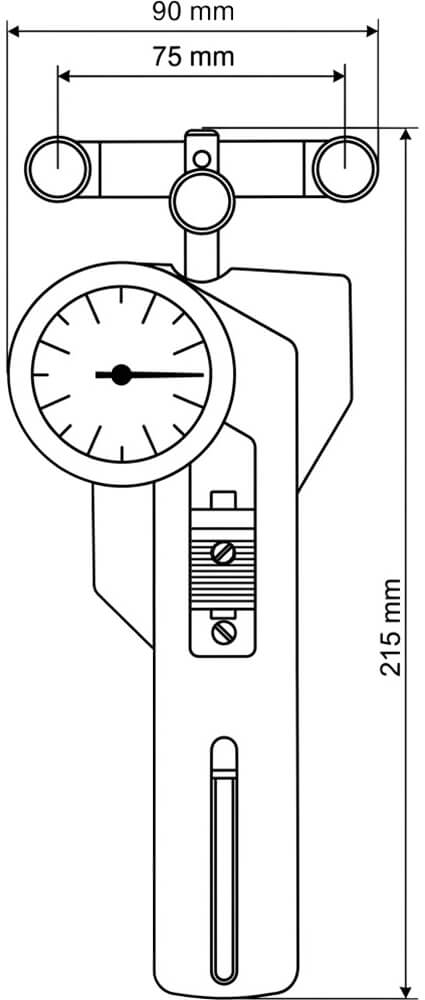

| Dimensions | 215 mm x 90 mm x 44 mm (L x W x H) |
| Weight | (net/gross) approx. 500 g / 1000 g |
Ranges

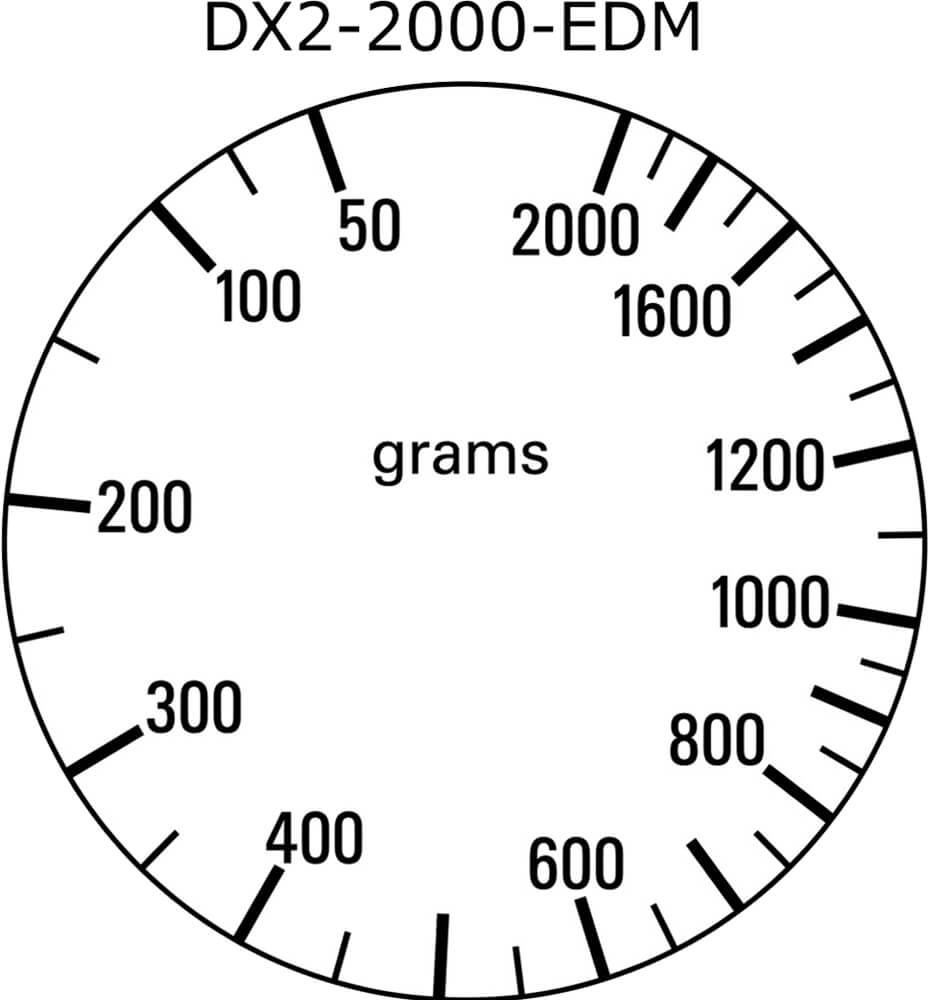

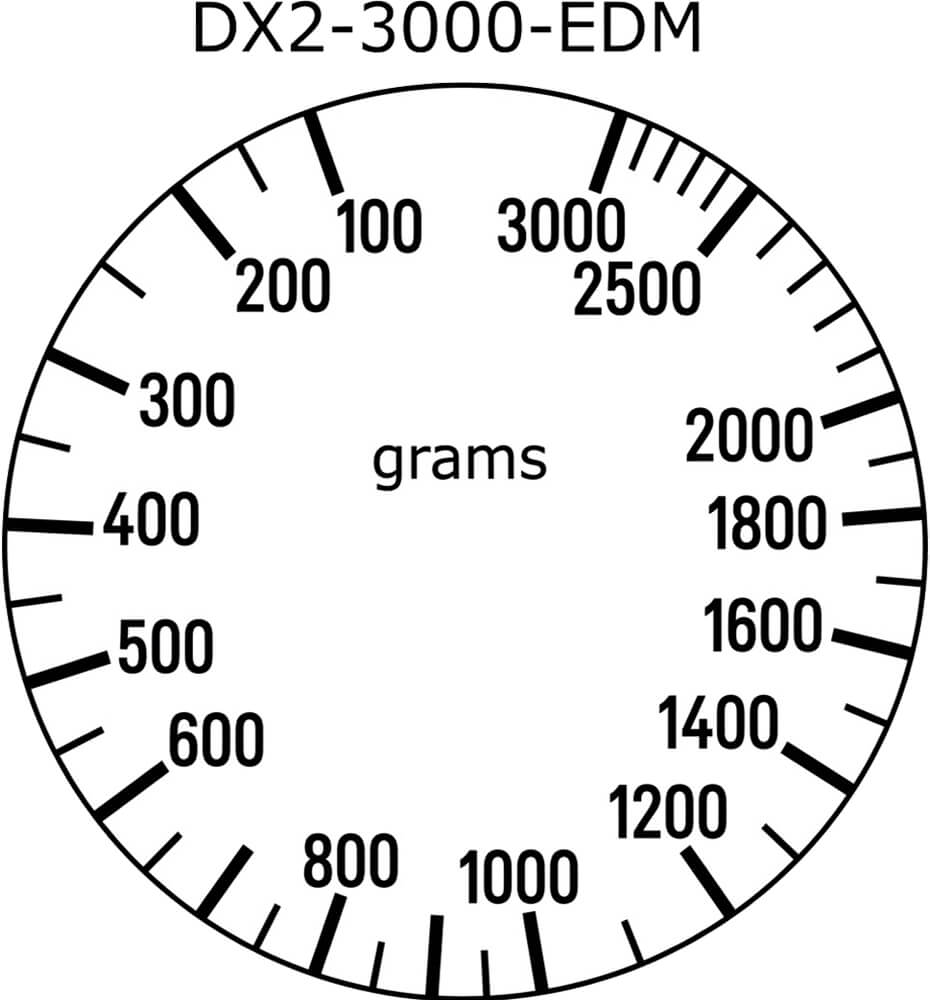

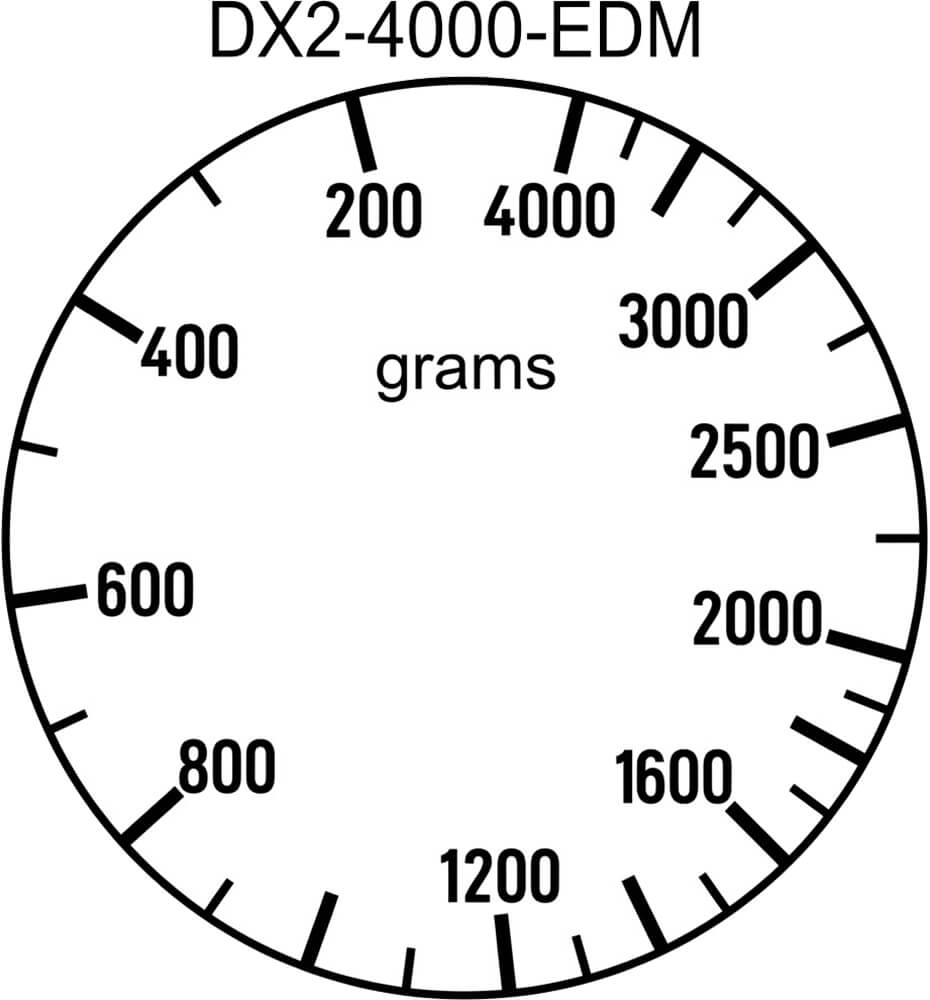

| Model | Range | Roller distance c:c mm | Material Thickness Compensator | Calibration Material |
| DX2-2000-EDM | 50 - 2000 cN | 75 | No | PA: 0.30 mm Ø |
| DX2-2000-EDM-G | 50 - 2000 g | 75 | No | PA: 0.30 mm Ø |
| DX2-3000-EDM | 100 - 3000 cN | 75 | No | PA: 0.30 mm Ø |
| DX2-3000-EDM-G | 100 - 3000 g | 75 | No | PA: 0.30 mm Ø |
| DX2-4000-EDM | 200 - 4000 cN | 100 | No | PA: 0.40 mm Ø |
| DX2-4000-EDM-G | 200 - 4000 g | 100 | No | PA: 0.40 mm Ø |
For meter calibrated in Grams add "-G" to part number, ie: DX2-2000-EDM-G
