    Product Description
    Mark10 G1001 Wire Terminal Grip

    Pull testing of wire and tube terminals, crimps, and other slender samples

    200 lb capacity

    Mark-10 G1001: 0.125" max. dia. / AWG 50 - AWG 8 (approximate)
    Mark-10 G1001-1: 0.125" - 0.250" dia. / AWG 8 - AWG 2 (approximate)
    Mark-10 G1001-2: 0.250" - 0.375" dia. / AWG 2 - AWG 0/2 (approximate)

    The Mark-10 G1001 wire terminal grips are designed for securing wire terminals, cables, connectors, and other samples for pull testing. Two wire diameter capacities are available, 0.125", 0.25" and 0.375". Use these grips with the Mark-10 G1002 dual roller grip, and choice of test stands and force gauges to create complete terminal and crimp testing systems


    line
    Specifications
    line

    Capacity 200 lb
    Thread #10-32 UNF
    Dimensions 3.43"L x 1"D
    Weight .29 lb
    Sample Size G1001: 0.125" max. dia. / 0 - AWG 8
    G1001-1: 0.125" - 0.250" dia. / AWG 8 - 2
    G1001-2: 0.250" - 0.375" dia. / AWG 2 - 0/2

    line

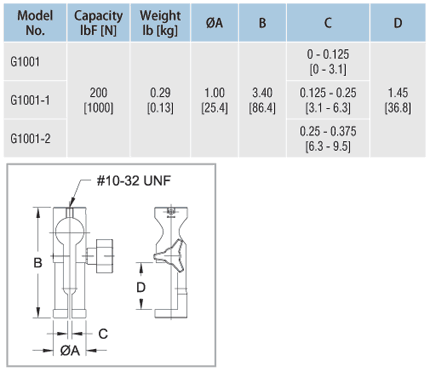

    Dimensions
    line

    Model No. G1001 G1001-1 G1001-2
    Capacity IbF (N) 200 (1000) 200 (1000) 200 (1000)
    Weight Ib 0.29 (0.13) 0.29 (0.13) 0.29 (0.13)
    ø A 1.00 (25.4) 1.00 (25.4) 1.00 (25.4)
    B 3.40 (86.4) 3.40 (86.4) 3.40 (86.4)
    C 0 - 0.125 (0 - 3.1) 0.125 - 0.25 (3.1 - 6.3) 0.25 - 0.375 (6.3 - 9.5)
    D 1.45 (36.8) 1.45 (36.8) 1.45 (36.8)

    Includes 5/16 - 18M to # 10 - 32F adapter and # 10 - 32 M/M stud with jam nuts
