Two Models Available
WTT-110B, 0-50 Kg / 0-110lbs / 0-500 N

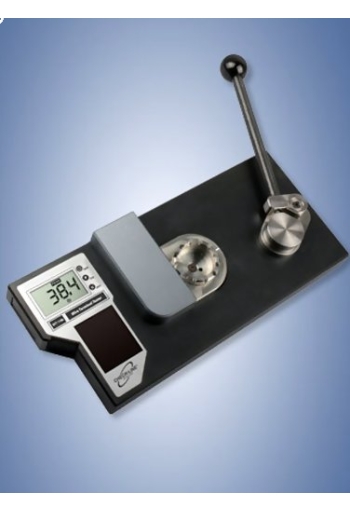

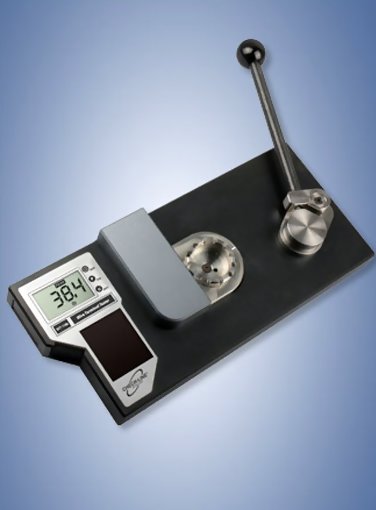

WTT-220X, 0-100Kg /0-220lbs / 0-1000N The WTT Series of Wire Terminal Testers accurately measures the pull-off force off crimped-on wire terminals. The pull tester is an easy to use all-in-one, single-range solution for a wide range terminal testing applications, eliminating the need to purchase any additional grips, fixtures or accessories. Suitable for wires AWG 30 to AWG 8 (diameters from 0.010" to 0.130"). WTT-220X version includes USB Output and is supplied with data transfer cable and software allowing the user to transfer peak values to a PC for data reporting. Additional software features include user-set limit for audible alarm as limit is exceeded. WTTM-220X Software is compatible with Windows XP and Windows 7, it is not compatible with Windows 8. It also Requires Microsoft Excel
Photo Gallery
Features
- Display force values in peak or real-time measuring mode
- Test for UL 486 & Mil Spec and other standards
- Fabricated from steel and stainless steel, machined to the highest tolerances
- Includes Traceable Calibration Certificate
Force Ranges
- Press START key to turn on your WTT-110B/220X Wire Terminal Tester
- Press UNITS key to select desired measuring units LB / N / KG
- Press PEAK key to select peak or real-time measuring mode
- Insert wire sample into the appropriate size wire terminal slot
- Open lever-clamp assembly and insert tail end of wire
- Press START key to zero display and enter “live” measuring mode
- Pull lever to apply force to wire and perform wire terminal pull out force measurement
- The “live” measurement mode will time out 5 seconds after pressure is released
- Repeat from step 4 for continued testing
Dimensions
- Remove the lever by unscrewing it in a counter-clockwise direction and move the Wire Clamp assembly out from the path of the hanging sample.
- Position the WTT-110B/220X in a vertical position at the edge of a strong bench or desk. Be sure to secure it with strong clamps so it can not topple over when the weight is attached.
- Turn on tester and set the display to track mode.
- Press START to activate measurement mode (it times out in 5 seconds if load is not sensed)
- Using a heavy-duty monofilament (fishing line), wire or similar, suspend a known weight from one of the teeth on the wire terminal fixture by hooking a loop of the material over the selected tooth.
Specifications
| Measuring Range | WTT-110B: 0-50 Kg / 0-110 lbs / 0-500N
WTT-220X: 0-100 Kg / 0-220 lbs / 0-1000N | | Resolution | 0.01 Kg / 0.1 lbs / 0.1 N | | Terminal Adapter Slot width (mm) | 0.5, 0.8, 1.0, 1.4, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 5.0, 6.0 | | Accuracy | ±0.5% F.S. or better | | Operating Mode | Continuous:
Displays actual value in Kg, lbs pr N
Peak-Hold:
Displays peak value in Kg, lbs pr N | | Wire Diameter | SAE AS7928 II: AWG 8...30
IEC 60352-2: Cross section 0.05...10mm²
Maximum: 0.236" (6mm) | | Overload | 200% Full Scale (LCD indicator at 120%) | | Display | LCD, 4-1/2 digit, 12mm high | | Memory | Peak Value | | Power Supply | Internal Solar Cell, external power is not required | | Temp. Range | Operating: 32 to 104° F (0 to 40° C)
Storage: -4 to 140° F (-20 to 60° C) | | Weight | 30.8 lbs (14 Kg) (Shipping weight 37lbs) | | Dimensions | 14.2" x 6.3" 2.6" (360 x 160 65mm) | | Material | Anodized aluminum, steel and stainless steel | | Warranty | 1 Year |
Complete Kit
The WTT-110B is supplied as a Complete kit that includes wire pull tester, operating instructions & Traceable certificate. The WTT-220X includes everything listed above along with USB output cable and software CD
