This product has been discontinued

Product Description
This product has been replaced by the Mark-10 WT3-201
This product has been replaced by the WT3-201

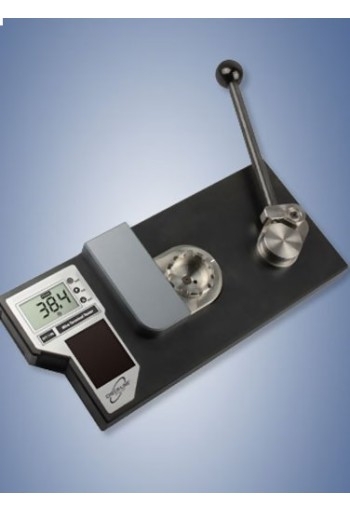

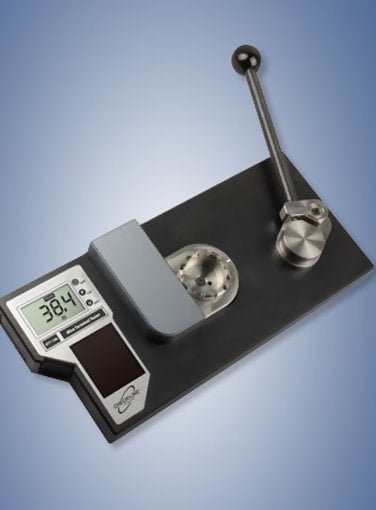

Checkline WTT-BX Wire Terminal Tester - Pull Tester

Range: 0-110 lbs / 0-50 Kg / 0-500N

WTT-BX

Two Models Available
WTT-110B, 0-50 Kg / 0-110lbs / 0-500 N
WTT-220X, 0-100Kg /0-220lbs / 0-1000N

The Checkline WTT-BX Wire Terminal Tester - Pull Tester accurately measures the pull-off force off wire terminals. The pull tester is an easy to use all-in-one, single-range solution for a wide range terminal testing applications, eliminating the need to purchase any additional grips, fixtures or accessories.

Suitable for wires AWG 30 to AWG 8 (diameters from 0.010" to 0.130").

WTT-220X version includes USB Output and is supplied with data transfer cable and software allowing the user to transfer peak values to a PC for data reporting. Additional software features include user-set limit for audible alarm as limit is exceeded.

line Features of the WTT-110B Wire Terminal Tester - Pull Testerline
bluedot Display force values in peak or real-time measuring mode
bluedot Fabricated from steel and stainless steel, machined to the highest tolerances
bluedot Test for UL 486 & Mil Spec and other standards
bluedot Includes Traceable Calibration Certificate
line Photo Gallery for the WTT-110B Wire Terminal Tester - Pull Tester - click any photo to enlargeline

line Operating Procedureline
1. Press START key to turn on your WTT-110B/220X Wire Terminal Tester
2. Press UNITS key to select desired measuring units LB / N / KG
3. Press PEAK key to select peak or real-time measuring mode

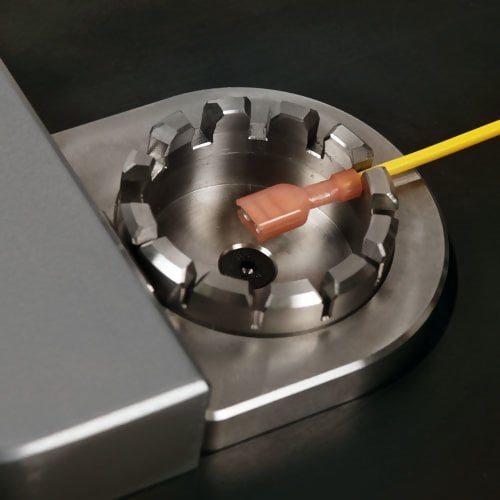

4. Insert wire sample into the appropriate size wire terminal slot
5. Open lever-clamp assembly and insert tail end of wire
6. Press START key to zero display and enter “live” measuring mode
7. Pull lever to apply force to wire and perform wire terminal pull out force measurement
8. The “live” measurement mode will time out 5 seconds after pressure is released
9. Repeat from step 4 for continued testing

line
 Calibration Verification Procedure
line

Calibration for all WTT-110B/220X models can easily be verified with a hook weight as described below:

1. Remove the lever by unscrewing it in a counter-clockwise direction and move the Wire Clamp assembly out from the path of the hanging sample.

2. Position the WTT-110B/220X in a vertical position at the edge of a strong bench or desk. Be sure to secure it with strong clamps so it can not topple over when the weight is attached.

3. Using a heavy-duty monofilament (fishing line), wire or similar, suspend a known weight from one of the teeth on the wire terminal fixture by hooking a loop of the material over the selected tooth.

line Related Products for the WTT-110B Wire Terminal Tester - Pull Testerline

WTTM
Motorized Wire Crimp Pull Tester
bluedot Simple and intuitive operation allows for high volume testing
bluedot Break-detection automatically resets system after sample fails

WT3-200
Wire Terminal Pull Tester
bluedot Measures real-time and peak force values
bluedot USB, RS-232, Mitutoyo (Digimatic), and analog outputs

WTT-ESM
Motorized Wire Terminal Tester
bluedot LCD display with UP, DOWN, STOP and emergency stop buttons and soft keys
bluedot Integrated travel limit switches
bluedot 3 Year Warranty
bluedot CE Certified
Click image for more info
line Complete Kit of the WTT-110B Wire Terminal Tester - Pull Testerline

The WTT-110B is supplied as a Complete kit that includes wire pull tester, operating instructions & Traceable certificate.

The WTT-220X includes everything listed above along with USB output cable and software CD.

complete kit
line Specifications of the WTT-110B Wire Terminal Tester - Pull Testerline
Measuring Range WTT-110B: 0-50 Kg / 0-110 lbs / 0-500N
WTT-220X: 0-100 Kg / 0-220 lbs / 0-1000N
Resolution 0.01 Kg / 0.1 lbs / 0.1 N
Terminal Adapter Slot width (mm) 0.5, 0.8, 1.0, 1.4, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 5.0, 6.0
Accuracy ±0.5% F.S. or better
Operating Mode Continuous:
Displays actual value in Kg, lbs pr N
Peak-Hold:
Displays peak value in Kg, lbs pr N
Wire Diameter SAE AS7928 II: AWG 8...30
IEC 60352-2: Cross section 0.05...10mm²
Maximum: 0.236" (6mm)
Overload 200% Full Scale (LCD indicator at 120%)
Display LCD, 4-1/2 digit, 12mm high
Memory Peak Value
Power Supply Internal Solar Cell, external power is not required
Temp. Range Operating: 32 to 104° F (0 to 40° C)
Storage: -4 to 140° F (-20 to 60° C)
Weight 30.8 lbs (14 Kg) (Shipping weight 37lbs)
Dimensions 14.2" x 6.3" 2.6" (360 x 160 65mm)
Material Anodized aluminum, steel and stainless steel
Warranty 1 Year
line Download for the WTT-110B Wire Terminal Tester - Pull Testerline
manual

 Data Sheet  Click here to download PDF
manual

 Quick Start Manual  Click here to download PDF
