Checkline WTT-110 Wire Terminal Tester

See More Wire Terminal Pull Testers
This product has been discontinued

Product Description

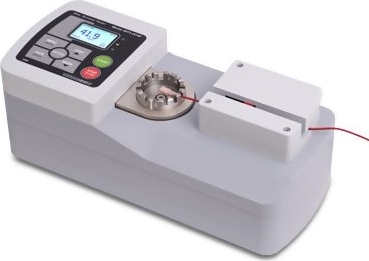

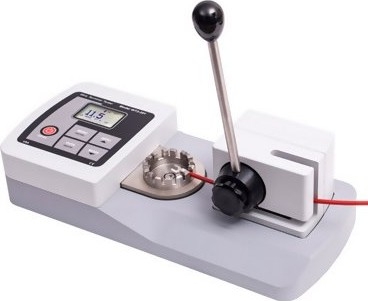

This product has been replaced by the WT3-201M
The WTT-110 has been replaced by the new and improved WT3-201.

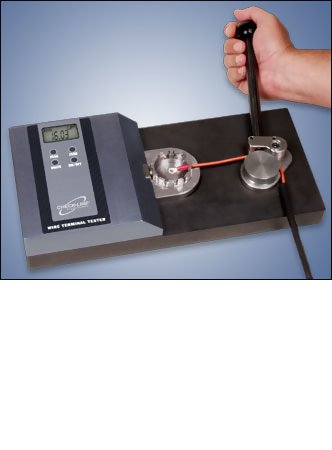

Checkline WTT-110 Wire Terminal Tester
Range: 0-110 lbs / 0-50 Kg / 0-500N
Measures in "Continuous" or "Peak" mode

Checkline WTT-110 Wire Terminal Tester


Measuring Range 0-50 Kg / 0-110lbs / 0-500 N
(User Selected)

Accurately measure the pull or “pull-off” force on most soldered or solder-less wire terminals, crimped connectors and similar wire terminations.

The WTT-110 is an easy to use all-in-one, single-range solution suitable for a vast majority of terminal testing applications eliminating the need to purchase any additional grips, fixtures or accessories.

Suitable for wires AWG 30 to AWG 8 (diameters from 0.010" to 0.130").

Pricing
WTT-110: $1,995.00
WTT-110RS: $2,095.00


line
reddot Features
line
bluedot Precision strain gauge sensing provides a resolution of 1/5000 with an accuracy of 0.5%
bluedot Display force values in “peak-hold” or “continuous” measurement mode
bluedot Operates from AC power or built-in rechargeable battery via supplied adapter/ charger
bluedot Fabricated from steel and stainless steel, machined to the highest tolerances
bluedot Model WTT-110RS includes RS-232 and analog outputs for external data recording

line
reddot Photo Gallery - click any photo to enlarge
line




line
reddot Operating Procedure
line
To operate, simply follow these steps:
1. Select the appropriately sized slot in the Wire Terminal Fixture and rotate to the front position
2. Insert the terminal and wire so that it is secured on the back-side of the slot
3. Route the wire so that it passes between the lever and the lever clamp
4. Select Peak-Hold or Continuous Measure mode using the PEAK key
5. Press the ZERO key to perform tare function
6. Rotate the lever clockwise, which clamps the wire and begins creating a pull force on the terminal
7. Read current force and breaking force on the digital display


Calibration Verification Procedure

Calibration for all WTT-110 models can easily be verified or re-certified with a single 50 Kg hook weight as described below:

1. Remove the lever by unscrewing it in a counter-clockwise direction and move the Wire Clamp assembly out from the path of the hanging sample.

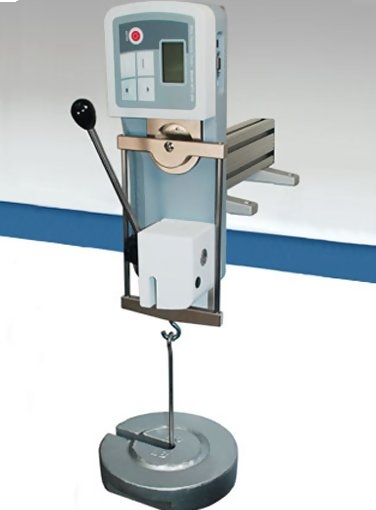

2. Position the WTT-110 in a vertical position at the edge of a strong bench or desk (refer to photo). Be sure to secure it so it can not topple over when the weight is attached.

3. Using a heavy-duty monofilament (fishing line), wire or similar, suspend a known weight from one of the teeth on the wire terminal fixture by hooking a loop of the material over the selected tooth.

Complete calibration instructions:
Checkline WTT-110 Calibration Manual - Click here to download


line
reddot Dimensions
linedimensions

line
reddot Complete Kit
line

The WTT-110 is supplied as a Complete kit that includes; main instrument table, separate hand lever with ball end, 9VDC battery charger 100...240VDC (50...60Hz) with Euro/US/UK plug adaptor, operating instructions & NIST certificate. WTT-110RS model also includes connection cable for RS232C (not shown)
complete kit

line
reddot Specifications
line
Measuring Range0-50 Kg / 0-110 lbs / 0-500N
(units selected via keypad)
Resolution0.01 Kg / 0.1 lbs / 0.1 N
Terminal Adapter Slot width (mm)0.5, 0.8, 1.0, 1.4, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 5.0, 6.0
Accuracy±0.5% F.S. or better
Operating ModeContinuous:
Displays actual value in Kg, lbs pr N
Peak-Hold:
Displays peak value in Kg, lbs pr N
Wire DiameterSAE AS7928 II: AWG 8...30
IEC 60352-2: Cross section 0.05...10mm²
Maximum: 0.236" (6mm)
Overload200% Full Scale (LCD indicator at 120%)
DisplayLCD, 4-1/2 digit, 12mm high
MemoryPeak Value
Power SupplyInternal NiCd battery, supplied with AC adapter/charger (115 V/60Hz)
Interface
*WTT-110RS Only
RS-232C - 2400 KB / 8 / N / 1 / None (selectable baud rate)
Temp. RangeOperating: 32 to 104° F (0 to 40° C)
Storage: -4 to 140° F (-20 to 60° C)
Weight30.8 lbs (14 Kg) (Shipping weight 37lbs)
Dimensions14.2" x 6.3" 2.6" (360 x 160 65mm)
MaterialAnodized aluminum, steel and stainless steel
Reverse DisplayWith the WTT-110 powered off, hold down "UNITS" key and press "ON/OFF" key, release after unit powers on

line
reddot Download
line

software FMI Connect Software  Click here to download

news PDF Data Sheet  Click here to download

manual PDF Calibration Instructions  Click here to download

manual PDF Instruction Manual  Click here to download
