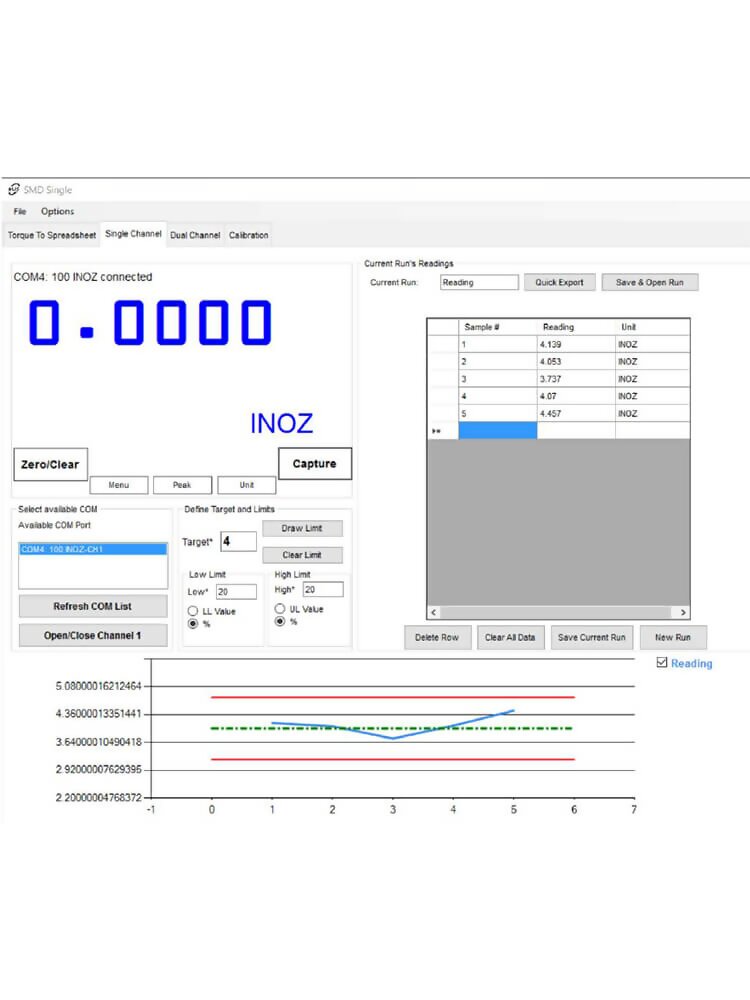

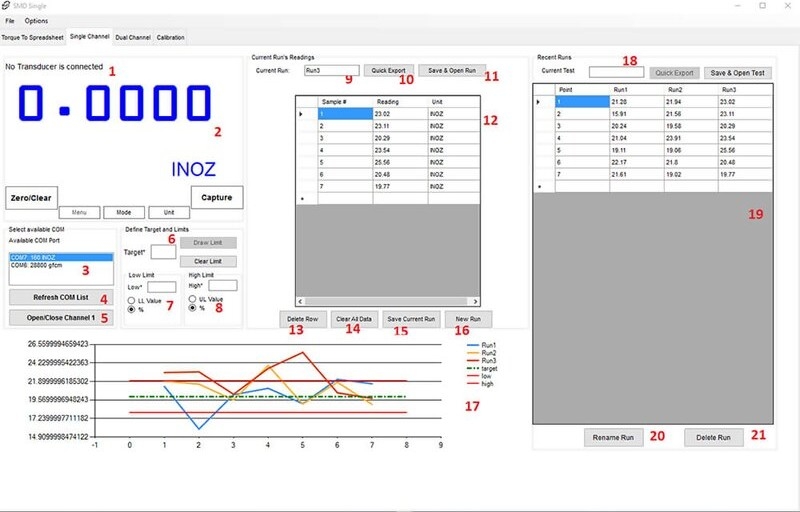

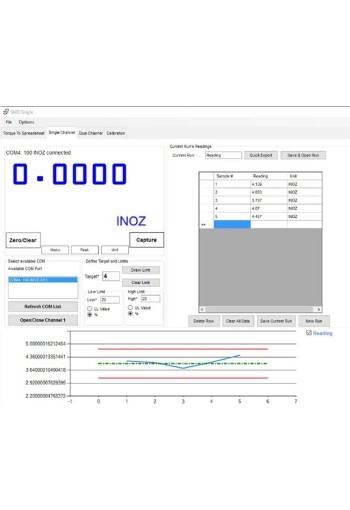

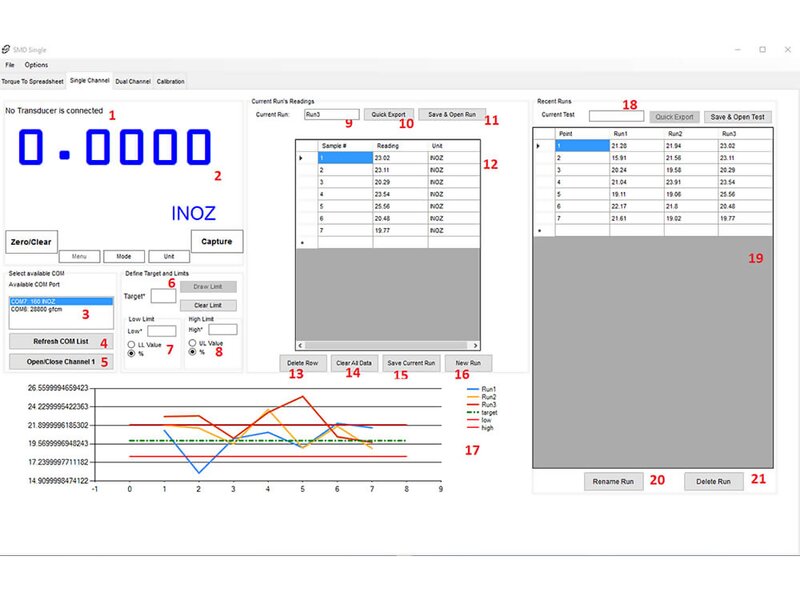

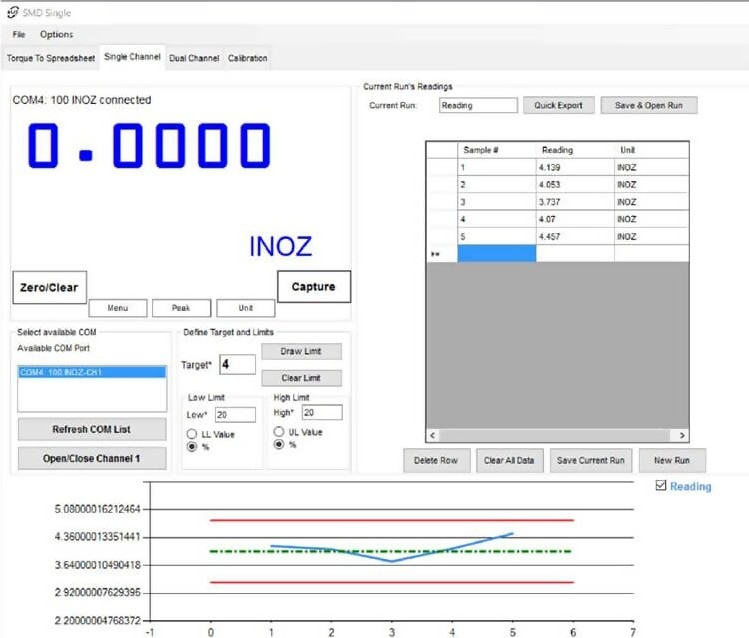

The AWS SMD-SC Torque Tester Software, For Data Analysis and Collection is Windows software designed to collect peak measurements from AWS TT-QC / AWS-QC Digital Torque Tester, AWS TT-QCM / AWS-QCM / Aimco Auditor Torque Wrench Tester, AWS MTM Multi-Channel Digital Torque Tester and AWS-4050 Portable Torque Tester Display. The software can save and export data or it can directly populate fields in Excel, Word or any Windows program. Programmable Hi / Low limits provide visual pass fail indication on a line graph display
- Auto Export to Microsoft Excel with Automatic Graph Creation
- Programmable Hi / Low Limits
- For use with TT-QC, TT-QCM, MTM and AWS-4050
- Can directly populate fields in Excel, Word (Office 2007 or later) or any Windows Program
- Overlay Mulitple Test Results on a Graph
- Includes Mini Plug to USB Cable
- Requires at least 1080p Resolution (1920 x 1080)
- Compatible with Windows 7, 8 and 10
The AWS TT-QC / AWS-QC Digital Torque Tester is a simple bench mount digital torque tester for quick tool verification. Our smallest and lowest cost bench mount torque tester to date, the AWS TT-QC / AWS-QC Quick Check is perfect for quick equipment verification right at your workstation. Small and light enough to use anywhere, this unit can still be used alongside any metro logy grade tester. A unique rotating display (optional) and dual bolt pattern allow the tester to be used in both horizontal and vertical configurations, and make switching between the two modes almost effortless. It is ideal for switching between pistol grip and inline tool checking. The AWS TT-QC / AWS-QC Digital Torque Tester takes just seconds to change test parameters, and works in either one button or automatic modes of operation. Reliability and ease of use are enhanced with features such as: Sign Lock, Peak Blanking, Auto Clear.
The AWS TT-QCM / AWS-QCM / Aimco Auditor Torque Tester is designed for verification and calibration of a wide range of torque wrenches and torque tools. It's bench top design is perfect for testing click, dial, and digital wrenches, plus most power tools including impulse, DC electric and pneumatic.
Flexible design for various torque wrench lengths and brand. A large LCD display with easy to navigate menu allows for quick setup. Storage memory allows 999 data points to be saved to the unit for review, or transmitted to a local printer or PC via the standard RS232 interface. High and low limits are easily set, and a panel mounted LED provides visual notification to the user when torque reaches these limits. Systems include dedicated internal transducers in vertical or horizontal configurations, it can be switched by the operator after purchase.
The AWS MTM Multi-Channel Digital Torque Tester is designed to provide an economical way to measure and calibrate multiple torque tools. The AWS MTMDP models include an integrated display for a fully integrated tester. Historically, transducers had to be purchased individually and connected to a display via a switch box or a group of cables. With the MTM series, up to 4 transducers can integrated in one compact housing. The small footprint also allows for a clean, well-organized work space. This helps eliminate the endless searching for cables, adapters, and other accessories that may be needed. Features such as independent CW and CCW calibration, multi-point linearization, metrology grade transducer shafts, and overload protection to 200% of full scale are standard. All of the above translate to a better product for you at an unbeatable price.
The AWS AWS-4050 Portable Torque Tester Display is a portable, versatile, simple, and accurate instrument that Test the torque of joints and tools. The AWS-4050 Digital Torque Display takes only seconds to change test parameters and works in either one button or automatic modes of operation. The Intellect Transducer interface allows any compatible transducer to be connected with proper calibration, with no input necessary from the operator. The quality built into the AWS AWS-4050 Portable Torque Tester Display assures accuracy and durability.
