AWS AWS-7000 Torque Display
Provides an economical way to measure fastening data for critical fasteners
Independent CW and CCW calibration with multipoint linearization.

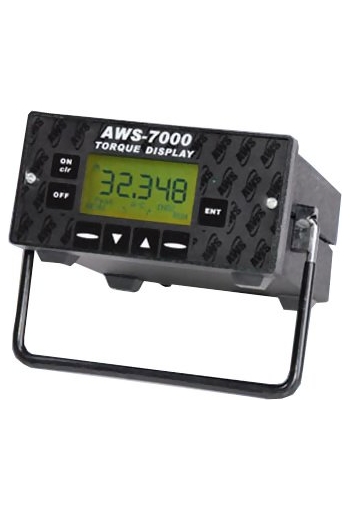

The AWS AWS-7000 Torque Display is a versatile readout designed to provide an economical way to measure (or in the AWS-7000CT version, automatically tighten, measure, control, and record,) fastening data for critical fasteners.
At the heart of the AWS AWS-7000 lies the same precision electronics, and cutting-edge software as our production and metrology grade torque testers.
Features
- A 24-bit AD converter with no analog circuitry to drift.
- All filter settings rated to Nyquist frequency. This all be eliminates roll-off error
- Independent CW and CCW calibration with multipoint linearization
- Optional control output lines can be used for controlling a motor, air solenoid, alarms, etc
Specifications
| Width | 5.5 " |
| Height | 2.75 " (with mounting foot) |
| Depth | 6.5 " |
| Weight | 2 Lbs. |
| Operating Tempurature | 0-50°C |
| Battery Input Power | NiMH |
| Line Input Power | 12 VDC |
