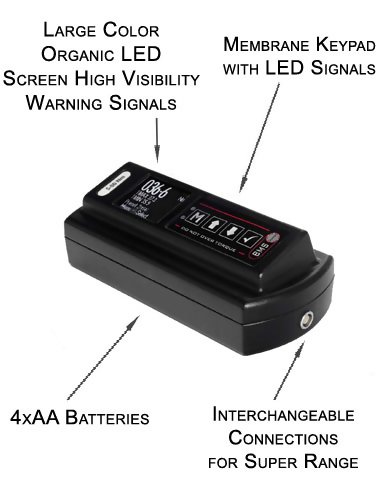

 Features | Large Color Organic LED Screen. High Visibility, Warning Signals | | Accuracy better than 1% | | Easy to use |
| | Battery Life of over 180 hours | | Traceable Calibration Certificate Included | | 2 Year Warranty |
|

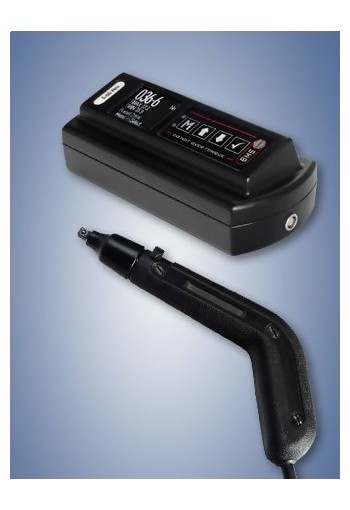

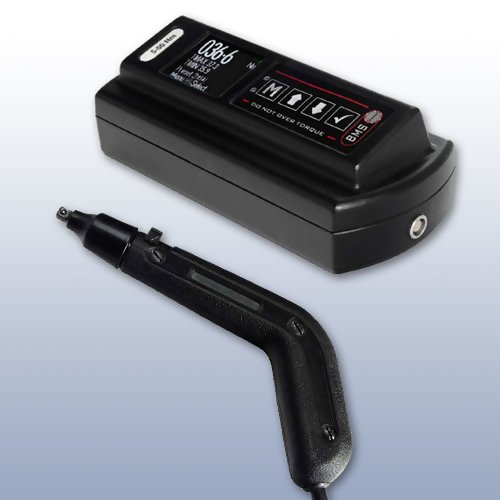

Photo Gallery - click any photo to enlarge Feature Comparison Chart | Feature Comparison Chart | EZ | PRO | SUPER | | Language, Comms, Peak, Set, Recall, Upload, Clear | - | | | | Date, Track, Presets, Units | | | | | Display: Large Organic LED | | | | | Units: N-m, N-cm, Kgf-m, Kgf-cm, Oz-in, Lb-in, Lb-ft | | | | | Alarms: Audible & Visual Signals | | | | | Automatic Zero Point Setting | | | | | Automatic Power Down | | | | | Over-torque: Warning system on display | | | | | Batteries: Lifespan of 180+ hours | | | | | Storage Capacity: 2000+ | - | | | Languages: English
Chinese, French, German, Italian, Japanese, Polish Portuguese, Russian, Spanish, others on request | | |

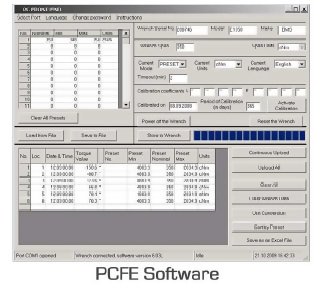

| | Programmable presets: 99, via PC or directly on Wrench | - | - | | | Electronic Calibration: by date or numbers of measurements | - | | | | Accuracy: better than 1% of actual reading LHS & RHS from 10% to 100% of specified range | | | | | Displays measurement: Starts from 2% of max | | | | | Windows Excel and SPC compatible | - | - | | | Comms: USB bi-directional communications | - | | | | PLC Communications: Using ASCII or Binary transfer | - | - | |
|
Torque Ranges | Model | Range | Drive | Length | DTS-500 | 50 - 500 N-cm | 1/4" | 200mm | DTS-1000 | 100 - 1000 N-cm | 1/4" | 200mm | DTS-1500 | 150 - 1500 N-cm | 1/4" | 200mm | DTS-1700 | 170 - 1700 N-cm | 1/4" | 200mm | | | Alternative Unit Calculator- recasts values in above table
(units in RED can be selected on gauge. Other units for reference only)
|
Specifications | Accuracy | Better than 1% accuracy LH & RH Threshold to Max | | Display | 4 digit LCD | | Operation | CW, CCW | | Modes of Operation | EZ: Trac, Preset, Units

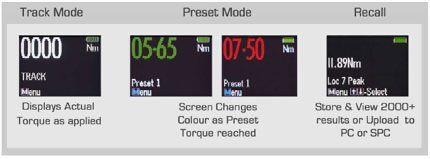

PR: Trac, Preset, Units, Peak, Upload, Set, Backlite
SP: Trac, Preset, Units, Peak, Upload, Set, Backlite, Recall, Clear, Date, Language, Com | | Data Transfer | PLC communication using ASCII or Binary Transfer
RS232 & USB bi-directional communications | | Data Memory | 2094 values | | Presets | 99 | | Power Supply | 4xAA Standard or rechargeable batteries | | Auto Power Save | Automatic power down | | Working Time | 180 hours | | Drive Size | 1/4" | | Weight | 1.5 lbs |
|
|
