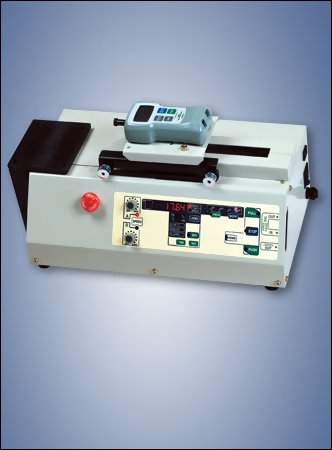

Name: Shimpo FGS-50PXH / L Motorized Horizontal Test Stand
Brand: Shimpo
SKU: 217

Shimpo FGS-50PXH / L Motorized Horizontal Test Stand

See More Test Stands, Motorized

Horizontal Motorized Test Stand

Force Gauge sold Separately

110lb Capacity

Motorized Horizontal Test Stand

2 Models Available
FGS-50PXH: 1.6" - 16" inches/min (Standard Speed)
FGS-50PXL: .4" - 4" inches/min (Low Speed)

Motorized horizontal teststand for single cycle or continous cycling capabilities. For use with FGE / FGV force gauges.

*FORCE GAUGE NOT INCLUDED
Designed to work with the FGE & FGV force gauges.

Features
line

User programmable set points: speed, distance, stop time

Single cycle and continuous cycling capabilities

High and low force set points user selectable through RS232C interface

Compatibility with nearly all manufacturers’ gauges

All gauge functions can be communicated through stand via RS232 interface

Analog distance outputs

Manually adjustable upper and lower limits

All steel construction

Specifications
line

Capacity	110 lbs / 50 kg / 500 N
Stroke	5.5" / 140 mm
Fixed position (clearance):	5 steps from 2.4" - 7.1" 1.2"/step (61 to 181 mm, 30 mm/step)
Travel rate	FGS-50PXH: 1.6" - 16" inches/min FGS-50PXL: .4" - 4" inches/min
Travel distance:	displayed with a resolution of 0.1 mm; output 10 mV/mm
Power supply:	115 AC, 60Hz (standard) 230 V AC, 50 Hz(optional)
Dimensions:	17.6" x 9.2" x 8.1" (L x W x H)
Weight	42 lbs
Compatible Gauges	FGE / FGV
Warranty	1 year
