Mark-10 ESMH Motorized Horizontal Test Stand

See More Test Stands, Motorized

This product has been replaced by the Mark-10 ESM303H

The ESMH has been replaced by the Mark-10 ESM303H Advanced Motorized Horizontal Test Stand

Motorized Test Stand with FORCE CONTROL

Force Gauge sold Separately

1100lb Capacity

The new ESMH is a 50 lb capacity horizontal test stand designed for tension, compression, and friction testing. A smooth top surface makes this tester particularly well suited for coefficient of friction testing. Other typical applications include the testing of sealed pouches, fabrics, tubing, sutures, and many other items in virtually every industry.

The tester features integrated limit switches for repetitive testing or other tests where travel limits are required. Modular design accommodates a wide variety of test sample shapes and sizes. The ESMH uses a remote control unit, distancing the operator from the test for added safety and convenience. Use this test stand with a force gauge and grips to create a complete testing solution.

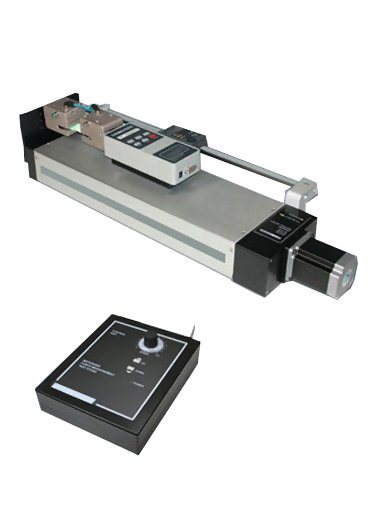

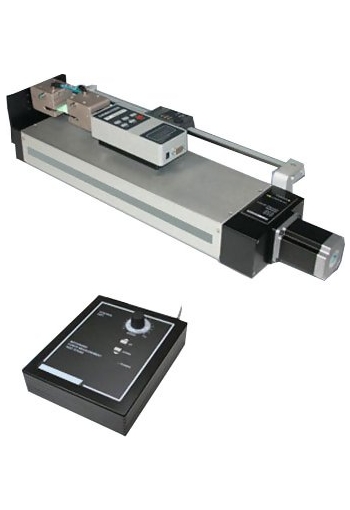

*NOTE: Shown with optional equipment, force gauge and attachments sold separately.

line
Features
line

Mounting Holes for bench mounting
Removable loading plate with matrix of #10-32 threaded holes

line
Specifications
line

Capacity	50 lbs / 25 Kg / 250 N
Stroke	13" [330 mm], 12" [305 mm] w/optional travel display
Travel Rate	0.2 - 50 in/min [5 - 1270 mm/min]
Speed Accuracy	±5% of setting, ±0% variation with load
Limit Switch Repeatability	±0.001" [0.03 mm]

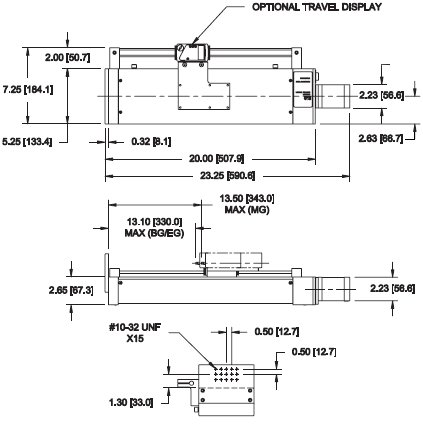

Dimensions	Refer to Dimensions above
Compatible Gauges	BG and MG
Warranty	3 years
