Shimpo FGS-100H Manual Hand Wheel Operated Test Stand, 110 lb Capacity

See More Test Stands, Mechanical

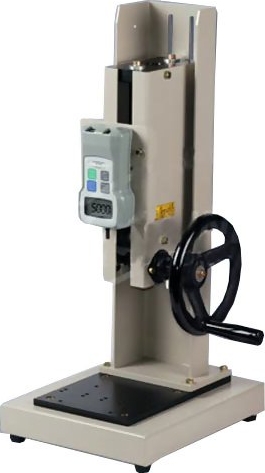

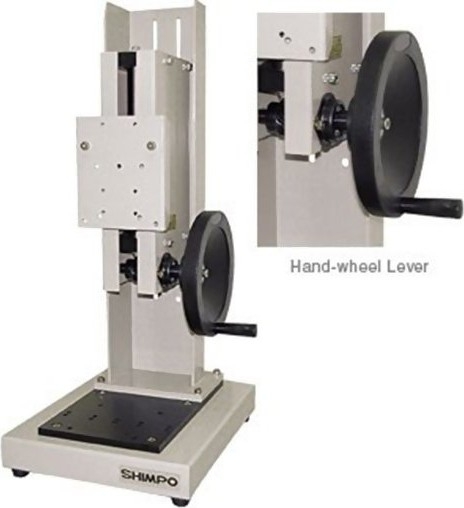

Shimpo FGS-100H Manual Hand Wheel Operated Test Stand

Force Gauge sold Separately

110lb Capacity

5.9" (150 mm) Maximum Travel

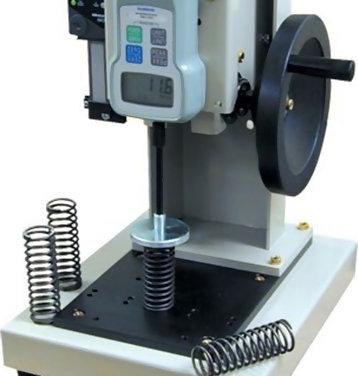

The Shimpo FGS-100H Manual Hand Wheel Operated Test Stand is ideal for obtaining accurate, consistent results for both tension and compression testing up to 110lbs.

line
Features
line

Versatile bottom mounting plate accepts standard and custom-made attachments
Precision gear movements
Sturdy, all steel construction
Constant Linear Motion

line
Specifications
line

Capacity	110 lbs (50 kg)
Stroke	5.9" (150 mm)
Travel Rate	3 mm/wheel turn (approximately)

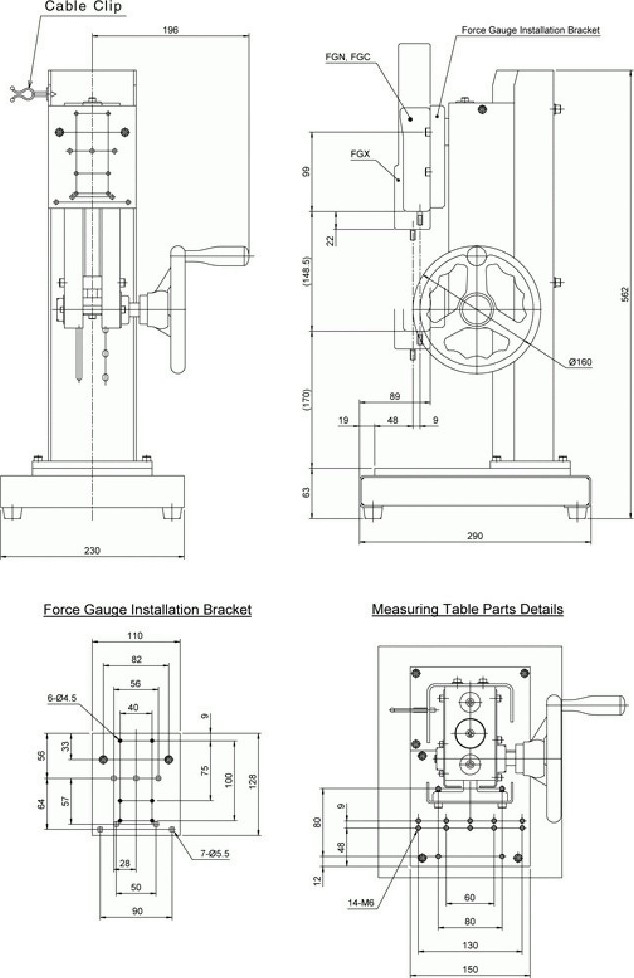

Dimensions	Refer to dimensions above
Weight	approx. 33 lb (15 kg)
Compatible Gauges	FGE / FGV, FGV-XY
Warranty	1 years
*Note	Optional Distance Meter Max Sampling Rate Output - 2 Samples Per Second

line
Related Products
line

FGE - FGV
Hand-held Digital Force Gauge

Includes Traceable Calibration Certificate
Accuracy ± 0.2%
User-selected units of Pounds, Kilograms or Newtons

line

FGV-XY
Digital Force Gauge with USB Output

Accuracy of ±0.2%providing superb repeatability
USB, RS-232 & Analog Outputs - all included!
3 different outputs for data transfer provides maximum flexibility

ADD TO CART THE ITEMS YOU WOULD LIKE TO PURCHASE

Models

Price

Shimpo FGS-100H Manual Hand Wheel Operated Test Stand, 110 lb Capacity

$895.00

Recommended Accessories

PRICE

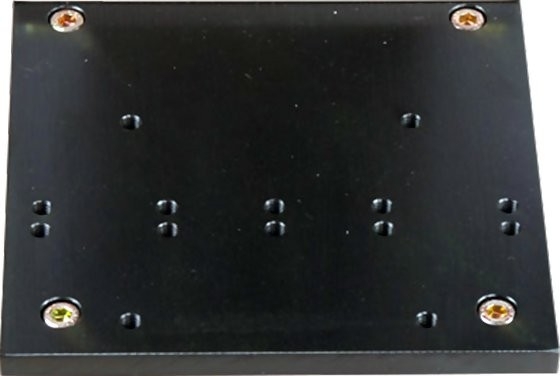

GF-1 Adjustable Mounting plate for base of test stand

$40.00

FGS-LENGTH-H Digital Distance Gauge for FGS-100H Test Stand

$575.00
