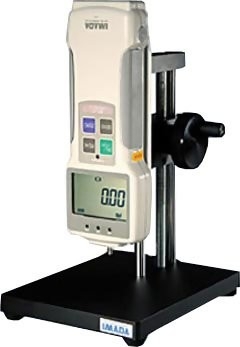

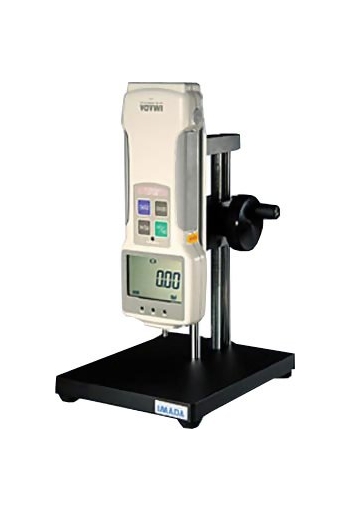

Imada KV-11-S Micro-Movement Hand Wheel Test Stand with Digital Distance Meter
Force Gauge sold Separately
For compression tests only
Maximum Load 11 lbf (5 kgf)

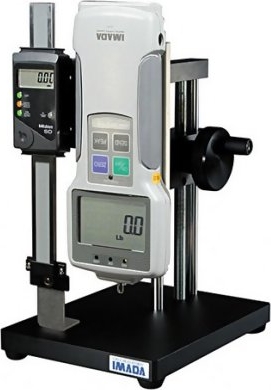

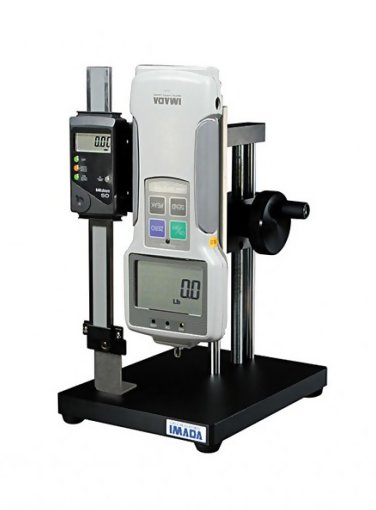

The Imada KV-11-S Hand Wheel Test Stand is designed for small deflection measurements such as membrane switches and other small micro switches. The standard model KV-11-S includes a highly accurate digital distance meter. Both models accept any force gauge with a maximum capacity of 11 lbf (5 kgf).
Features
- For compression tests only
- Reduced backlash and fine movement for highly precise measurements
Specifications
| Capacity | 11 lbf (5 kgf) |
| Stroke | 2.75" (69.85 mm) |
| Travel Rate | 0.4" (1 mm) per revolution of hand wheel |

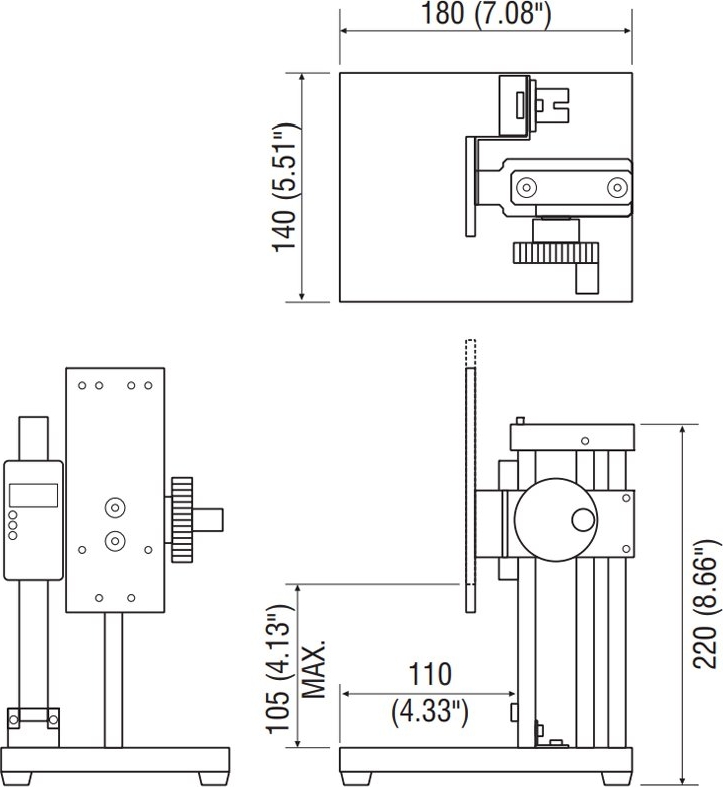

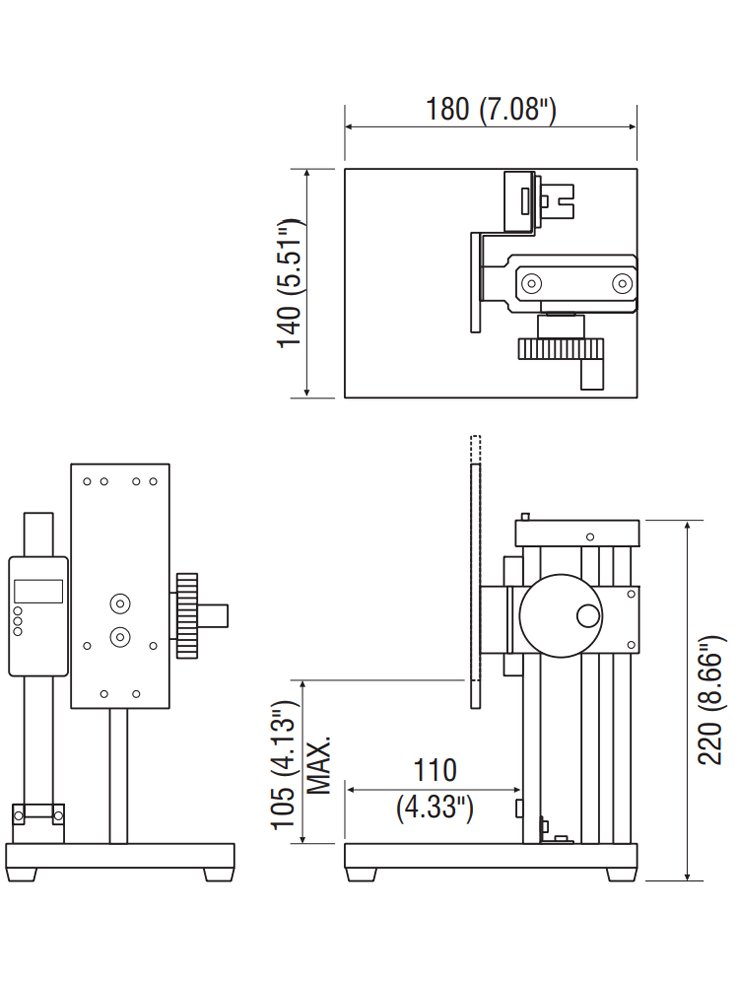

| Dimensions | Refer to dimensions above |
| Compatible Gauges | ZT-Series and DS2 |
| Warranty | 2 years |
| Display | Push button for inch/mm, zero set and on/off |
| Resolution | 0.0005"/0.01 mm |
| Accuracy | 0.1% of reading or 0.005"/0.1mm, whichever is greater |
