    Product Description
    Embossed Carrier Tape Peel Tester

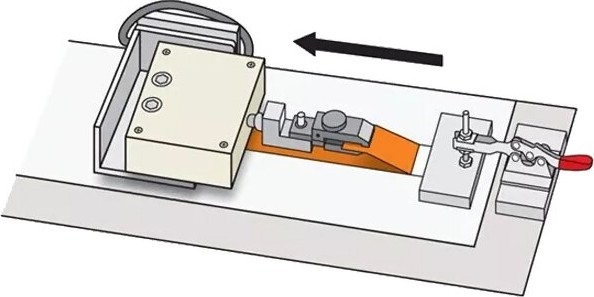

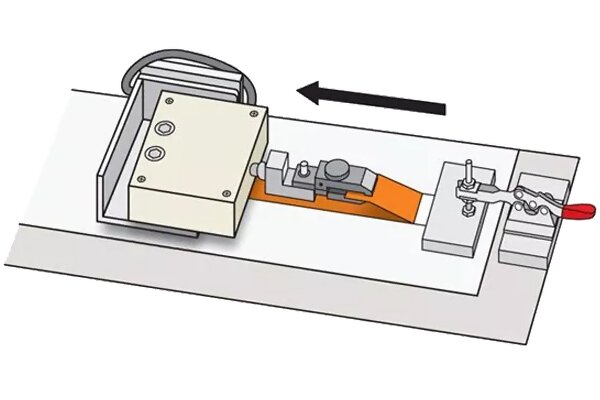

    180° peel for embossed carrier tape
    Stroke: 15.74" (400mm)

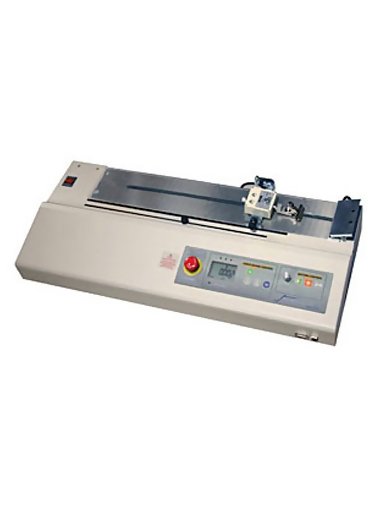

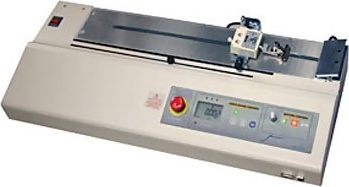

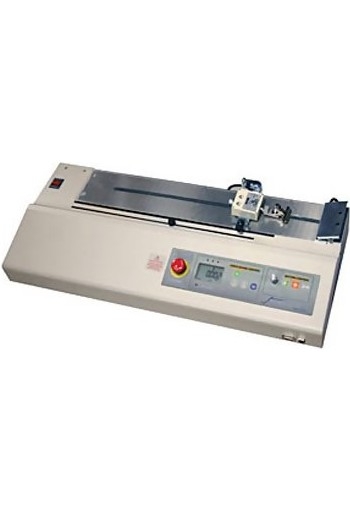

    Imada IPT-200 Embossed Carrier Tape Peel Tester uses a combination of screw drive and state-of-the-art brushless motor that provide extremely smooth and powerful operation over the entire speed range to offer consistent and reliable testing.

    The Imada IPT-200 Embossed Carrier Tape Peel Tester offers programmable high/low setpoints for go/no-go testing. Sensor position and angle are adjustable and convenient clips secure the sample tapes. Use the 1,000 data memory to store peak data or the USB, RS-232 or analog output to collect continuous data using optional data acquisition software.

    The generous work area accepts samples 3.46" wide. The quick switch enables rapid reset of the sensor and an emergency stop safety feature is also included.


    line
    Features
    line

    • 180° peel for embossed carrier tape
    • Programmable high/low setpoints with color-coded LED indicators and output signal for quick go/no go testing
    • Stroke: 15.74" (400mm)
    • Real time and peak mode (selectable)
    • Speed (selectable): 120, 300, 500, 1000, 1500mm/min
    • 1,000 Data memory for computer download
    • ozf, gf, and N units are selectable
    • USB, RS-232C and Analog outputs
    • Overload capacity 150% of F.S.
    • Overload alarm and output signal


    line
    Specifications
    line

    Width of Sample 3.46" (88mm) max.
    Speed 120, 300, 500, 1000, 1500 mm/min (selectable)
    Peeling Angle 165~180°
    Stroke 15.74" (400 mm)
    Safety Features Emergency Switch, Overload Stop Function, Stroke Limit Switch
    Capacity 18 ozf, 500 gf, 5N
    Accuracy ±0.2% F.S., ±1 LSD
    Units N, gf, ozf (selectable)
    Display 4 digit LCD; Unit Mode; Overload LED; Comparator LEDs
    Sampling Speed 1,000 times/sec Max.
    Display Update 10 times/sec
    Overload Capacity Approx. 150% F.S. (LED flashes and alarm sounds beyond110%)
    Comparator Function Programmable high/low setpoints with color-coded indicators
    Output USB, RS-232, Analog (-2 to +2 V F.S.)
    Temperature 32° to 100°F (0° to 40°C)

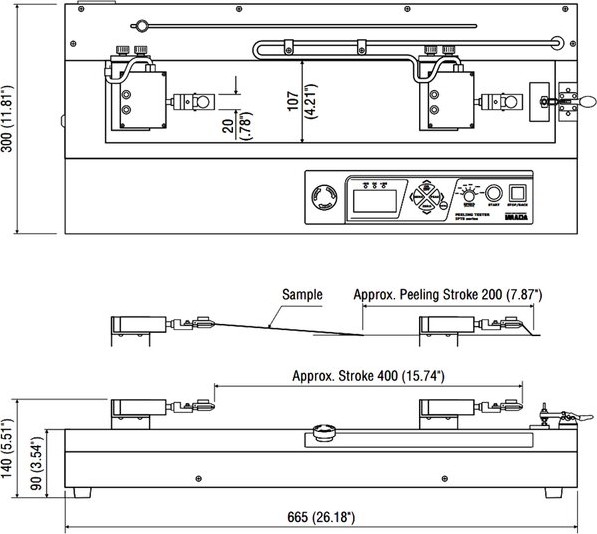

    Dimensions 27.95"L x 4.96"H x 11.81"D (710mm L x 126mm H x 300mm D)
    Weight 24.2 lb (11 kg)
    Power 115/230 VAC
