    Mark-10 MR06-200 Wire Crimp Pull Sensor Tester Hand-Operated Pull Tester
    200 lbF / 1000 N capacity
    Accommodates a wide range of wire diameters, up to 0.25 in. (6.4 mm) / 20 - 3 AWG.

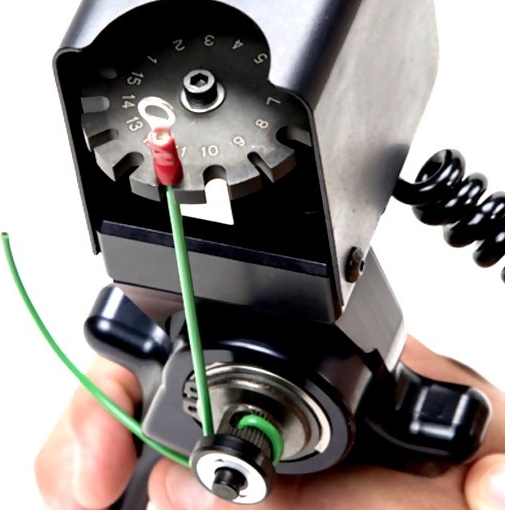

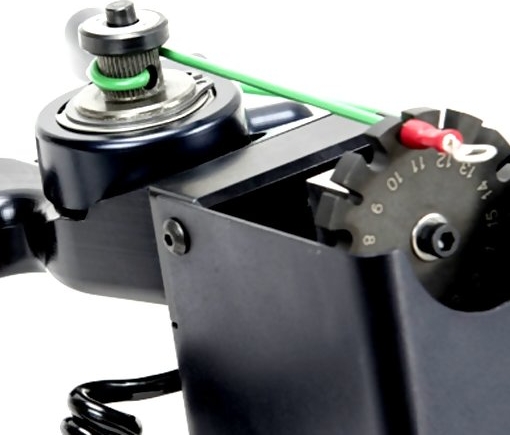

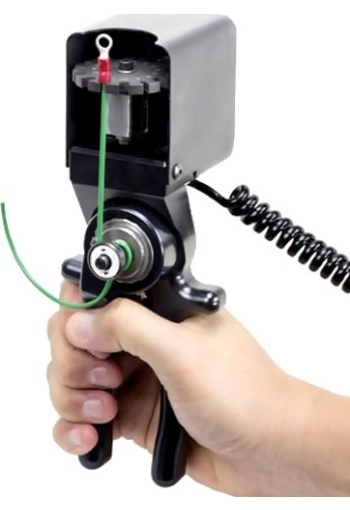

    The Mark-10 MR06-200 Wire Crimp Pull Sensor Tester is a hand-operated solution for measuring wire crimp pull-off forces. The ergonomic handles and convenient tensioning mechanism make field measurements a breeze for applications up to 200 lbF (1,000 N). Squeeze the handles together to increase tension on the sample until a break occurs.The peak force is recorded by a Series 7i, Series 5i or Series 3i. A rotating turret with slots of multiple sizes accommodates a wide range of wire diameters, up to 0.25 in. (6.4 mm), 20 - 3 AWG.


    line Features
    line

    • Includes NIST-traceable certificate of calibration

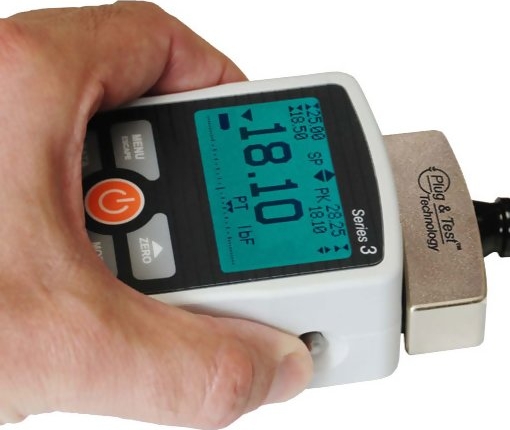

    • Compatible with the 7i, 5i and 3i digital indicators
    • Test wire diameters from 20 - 3 AWG

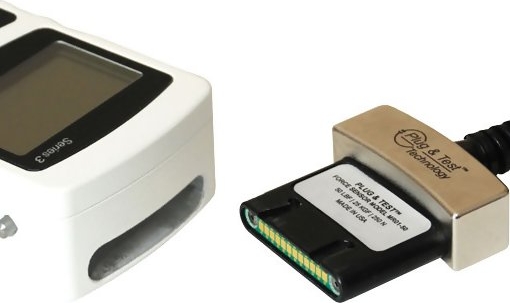

    • Unique Plug & TestTM connector holds all calibration and configuration data
    • Ergonomic handles and convenient tensioning mechanism
    • Measures pull forces
    • 3 Year Warranty


    line
    Specifications
    line

    Accuracy±0.5% of full scale + indicator
    Weight2.5 lb [1.2 kg]
    Slot dimensions (in [mm])0.03 [0.8], 0.05 [1.3], 0.06 [1.5], 0.08 [2.0], 0.09 [2.3], 0.11 [2.8], 0.13 [3.3], 0.14 [3.6], 0.16 [4.1], 0.17 [4.3], 0.19 [4.8], 0.20 [5.1], 0.22 [5.6], 0.24 [6.1], 0.25 [6.4]
    Slot Size in AWG20 - 3 AWG
    Warranty3 years


    line
    Ranges
    line

    With Model 7i and 5i Indicators

    ModellbfozfkgfNkN
    MR06-200200 x 0.13200 x 2100 x 0.051000 x 0.51 x 0.0005

    With Model 3i Indicator

    ModellbFkgFN
    MR06-200200 x 0.2100 x 0.11000 x 1


    line
