Conforms to ISO 9727
Accommodates up to 1.5 L bottles
200 lbF (1 kN) capacity

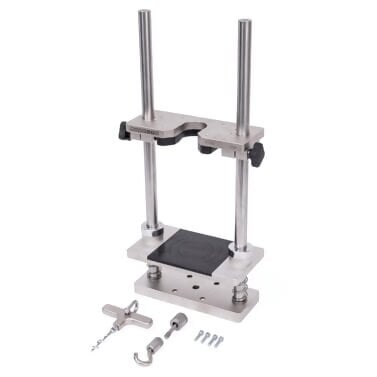

The Mark-10 G1105 ISO 9727 Cork Pull Fixture is fixture is designed to extract a cork stopper out of a bottle for pull force measurements, in conformance with ISO 9727.
The Mark-10 G1105 ISO 9727 Cork Pull Fixture accommodates up to 1.5 L bottles, and is compatible with both natural and synthetic stoppers.

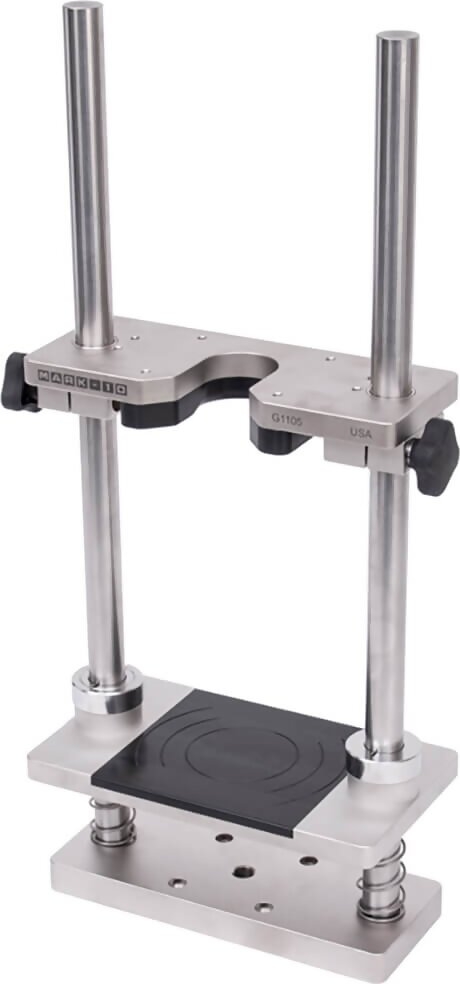

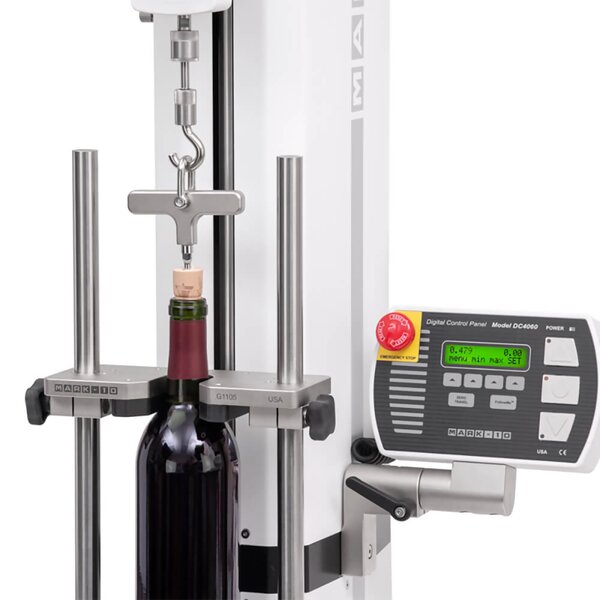

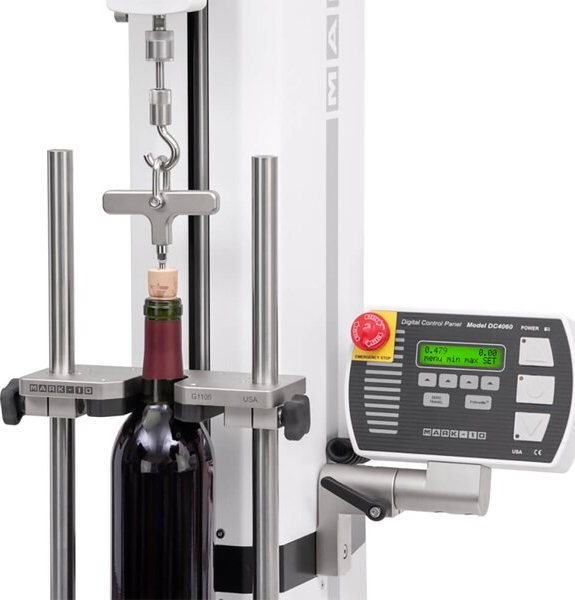

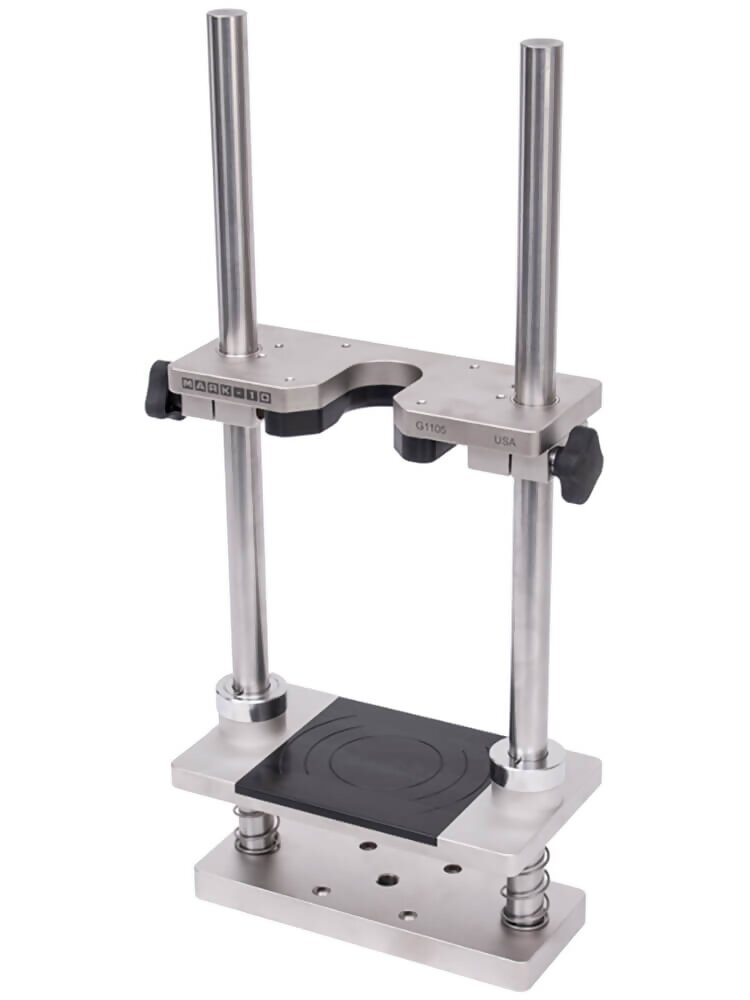

To use, load the bottle onto the spring loaded tray. The neck is secured by the upper bracket. Delrin material is used for the surfaces in contact with the bottle, to avoid marring or breaking the sample. Thread the provided corskscrew assembly into the cork, then use the swiveling hook from the force gauge to engage the eye bolt at the end of the cork screw assembly.
Recommended for use with a force gauge and ES30 manual test stand or ESM303 motorized test stand. A column extension is required to accommodate the height of the fixture.
Kit Contents
- Mark-10 G1105 ISO 9727 Cork Pull Fixture
- Base fixture
- Corkscrew assembly
- G1035 large hook, 5/16-18
- G1018-2 swivel adapter, 5/16-18
- Test stand mounting hardware
Features
- Extracts cork stoppers from bottles
- Adjusts to fit bottles up to 1.5 L
- Compatible with natural and synthetic stoppers
Specifications
| Capacity | 200 lbF (1000 N) |
| Weight | 9.5 lbs (4.3 kg) |
